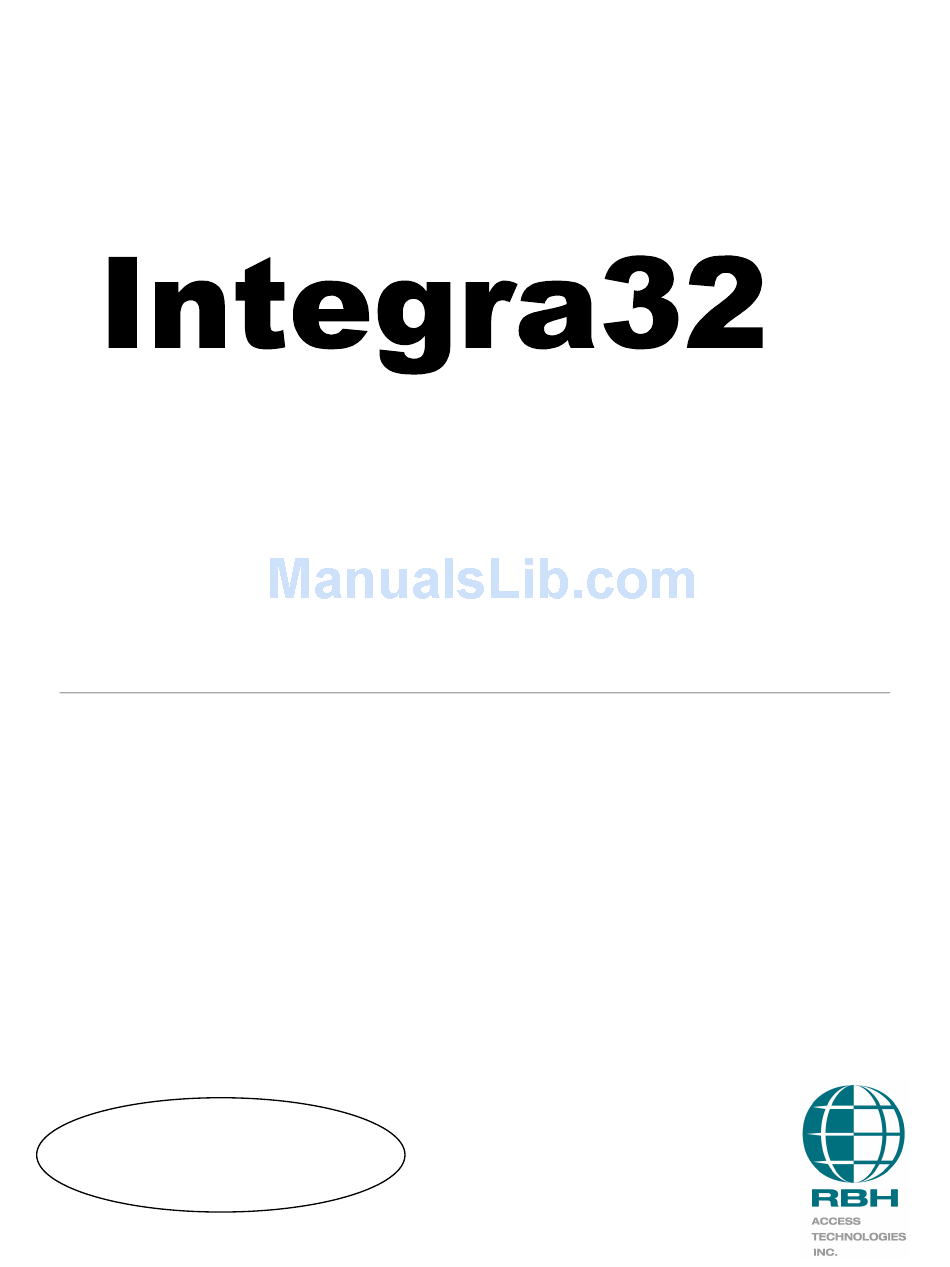

- Page 1 ™ Integrated Alarm Monitoring and Access Control HARDWARE MANUAL new generation building security...
- Page 2 Further RBH Access Technologies Inc. reserves the right to revise this publication, and to make changes to the content hereof from time to time, without the obligation of RBH Access Technologies Inc. to notify any person or organization of such revision or changes.
-
Page 3: Table Of Contents
C o n t e n t s ™ CHAPTER 1 INTRODUCING INTEGRA32 ..................1 ™ INTEGRA32 SYSTEM DIAGRAM ......................2 CHAPTER 2 INTELLIGENT FIELD PANEL..................3 IRC-2000 (INTELLIGENT FIELD PANEL) ..................... 3 Power..............................4 PC/ Modem Interface..........................4 Inputs ..............................4 Outputs.............................. - Page 4 Cable Specification ..........................19 Maximum Cable Length........................19 IRC-2000 SPECIFICATION ........................21 CABLE SPECIFICATION ........................22 PC to Controller ........................... 22 IRC-2000 to Reader:..........................22 Input / Output Port Circuit Loop: ......................22 AxiomIII™ Hardware Guide – Rev.5 RBH Access Technologies Inc.
-
Page 5: Chapter 1 Introducing Integra32
I n t r o d u c i n g I n t e g r a 3 2 ™ The Integra32 system from RBH Access Technologies Inc. represents the latest in access technology specifically designed for smaller applications. Its intuitive graphical interface allows ™... -
Page 6: Integra32 System Diagram
Chapter 1 ™ Introducing Integra32 ™ Integra32 System Diagram ™ Integra32 Hardware Guide RBH Access Technologies Inc. -
Page 7: Chapter 2 Intelligent Field Panel
The controller operates independent of the PC and all decision-making is performed locally, even in the event of total power loss (while operating on battery backup). IRC-2000 (Intelligent Field Panel) ™ RBH Access Technologies Inc. Integra32 Hardware Guide... -
Page 8: Power
Do not connect directly to the AC earth. Use 16 AWG or heavier cable and keep the length as short as possible (less than 50 feet). ™ Integra32 Hardware Guide RBH Access Technologies Inc. - Page 9 Data – D0 D1 Shared Power Reader 2: Buzzer O/P Red & Green LEDs Data – D0 D1 Outputs: 1-4 form C relays, 5-8 open collector to ground. Inputs 5-8 9-14 vdc @250ma PC/Modem Interface ™ RBH Access Technologies Inc. Integra32 Hardware Guide...
-
Page 10: Dip Switch Settings
Use DIP switches 1, 2, 3, 4, and 5 to select the controller address. The address is binary coded and the switch settings for all sixteen possible addresses are given below. Controller Addressing Switch 1 Switch 2 Switch 3 Switch 4 Switch 5 Address ™ Integra32 Hardware Guide RBH Access Technologies Inc. -
Page 11: Direct Connect/Modem Selection
PC. The default PC baud rate is 9600. Controller Baud Rate Selection DIP Switch 6 DIP Switch 7 Baud Rate 9,600 28,800 38,400 56,000 Table 4 ™ RBH Access Technologies Inc. Integra32 Hardware Guide... -
Page 12: Pc Connection
The PC serial port used to connect to the IRC-2000 panels is assigned under the Communication ™ Port Setup screen in the Integra32 software. The baud rate is set by default to 9600 for direct connection to the PC using the standard RS232 interface. The RS232 interface can only be used in single control systems. -
Page 13: Cable Specification
130-ohm resistor across both A/B connections at the PC end. PC to IRC-2000 Connection – RS485 Interface Wiring Cable Specification Single twisted pair, shielded, 18 to 22 AWG ™ RBH Access Technologies Inc. Integra32 Hardware Guide... -
Page 14: Maximum Cable Length
If the controller is connected directly to the PC, the status LED's flash continuously. Run LED The run LED (LED14) flashes to indicate the controller is not communicating, it is on solid when running normally, and off if power is missing. ™ Integra32 Hardware Guide RBH Access Technologies Inc. -
Page 15: Chapter 3 Input & Output Connections
The IRC-2000 supports seven different input circuit types ranging from no resistor for low security applications to two resistors normally closed circuits where the highest security is required. Normally Closed, No Resistor Loop Resistance State Short Restore Open Circuit Alarm Table 6 ™ RBH Access Technologies Inc. Integra32 Hardware Guide... -
Page 16: Table
™ Introducing Integra32 Normally Open, No Resistor Loop Resistance State Short Alarm Open Circuit Restore Table 7 Normally Closed, One Resistor Loop Resistance State Short Trouble Restore Open Circuit Alarm Table 8 ™ Integra32 Hardware Guide RBH Access Technologies Inc. -
Page 17: Table
This circuit provides a high degree of supervision and detects both short and open circuit fault conditions. Use this circuit in high security applications. Normally Open, One Resistor Loop Resistance State Short Alarm Restore Open Circuit Trouble Table 10 ™ RBH Access Technologies Inc. Integra32 Hardware Guide... -
Page 18: Table 11
Closed, One Resistor Loop Resistance State Short Alarm Restore Open Circuit Alarm Table 12 This circuit type is used where normally open and normally closed contacts are used in the same loop. ™ Integra32 Hardware Guide RBH Access Technologies Inc. -
Page 19: Outputs
All of these devices generate extremely high voltage spikes (several thousand volts) when power is applied or removed and possible disruption of the operation could occur if this interference gets on to the electronic circuit board. ™ RBH Access Technologies Inc. Integra32 Hardware Guide... -
Page 20: Relay Output Operation
For magnetic locks, the relay should be configured from the PC as ‘On State’ de- energized for fail-safe operation. If power fails (AC and battery), the power to the magnetic lock is removed and the door is opened. ™ Integra32 Hardware Guide RBH Access Technologies Inc. -
Page 21: Door Strike Connection Diagram
Handicap Output Connection Diagram Access Point Operating Modes High Security In high security mode, only cardholders with high security clearance are allowed access. Unlocked The green LED turns on to indicate the door is unlocked. ™ RBH Access Technologies Inc. Integra32 Hardware Guide... -
Page 22: Tamper
The Buzzer emits one long beep and the green LED turns on for the duration of the unlock time. Access Denied The Buzzer emits two short beeps and the red led flashes twice. ™ Integra32 Hardware Guide RBH Access Technologies Inc. -
Page 23: Reader Connection Diagrams
IRC-2000 To Reader Connection Diagram Cable Specification 7 conductor, stranded, shielded cable (not twisted), 20 to 22 AWG Maximum Cable Length 22 AWG Cable: 250 feet (75 meters) 20 AWG Cable: 500 feet (150 meters) ™ RBH Access Technologies Inc. Integra32 Hardware Guide... - Page 24 Appendix 1 Specification Sheets S p e c i f i c a t i o n s ™ Integra32 Hardware Guide RBH Access Technologies Inc.
-
Page 25: Irc-2000 Specification
Real Time Clock: Dallas DS1999 with battery back up Housing dimensions: H 11in. x W 12in. x D 3½in. Operating temperature: 0 to 70°C (35 - 150°F) Operating Humidity: 20 to 80% RH (non-condensing) ™ RBH Access Technologies Inc. Integra32 Hardware Guide... -
Page 26: Cable Specification
22 AWG Cable 250 feet (75 meters) 20 AWG Cable 500 feet (150 meters) Input / Output Port Circuit Loop: 2 conductor, 20 to 22 AWG Maximum Cable Length 1000 feet (300 meters) ™ Integra32 Hardware Guide RBH Access Technologies Inc.
