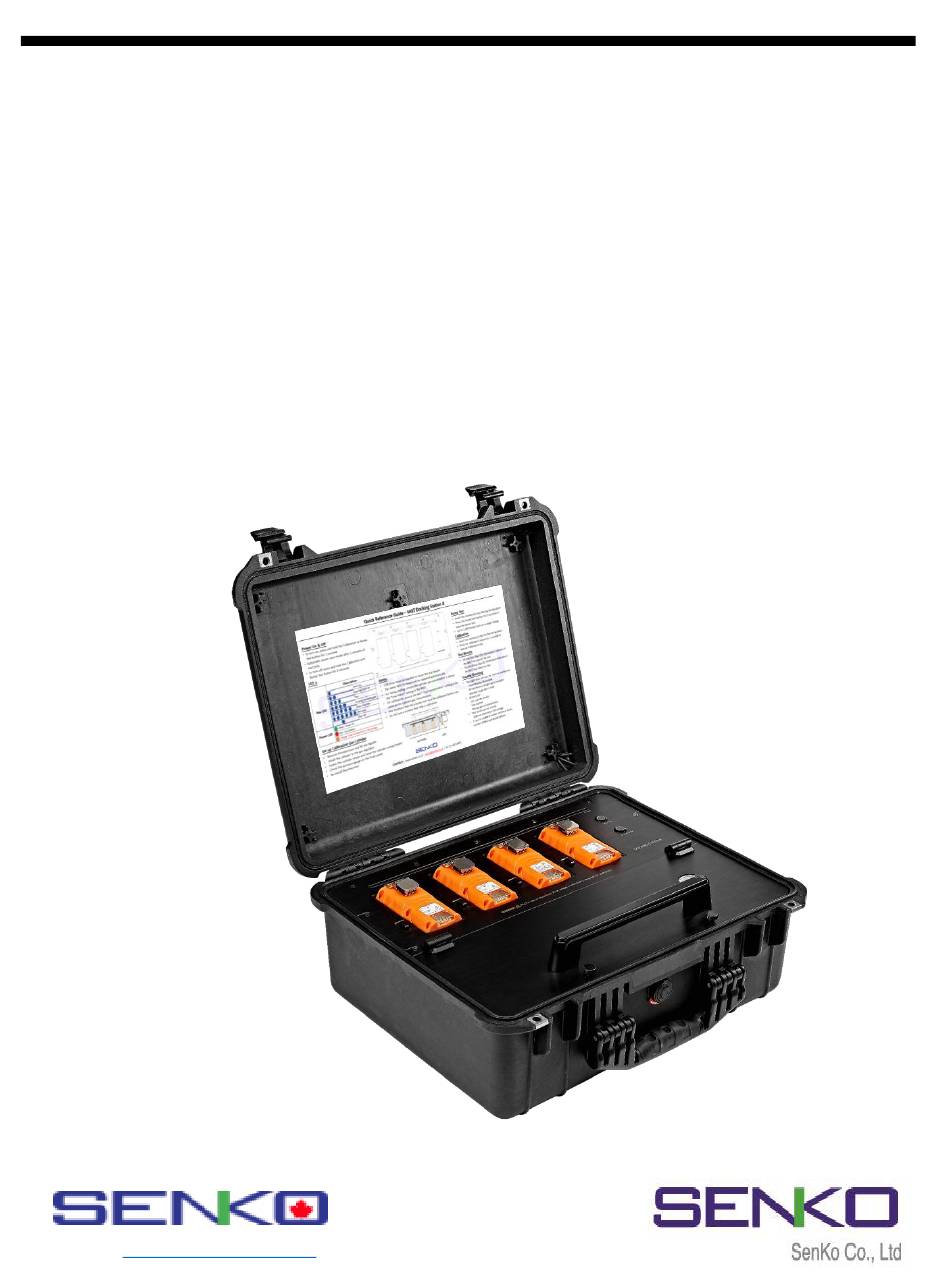

- Page 1 MGT Docking Station version II MGT Docking Station Version II User’s Manual www.senkocanada.com sales@senkocanada.com...
-
Page 2: Table Of Contents
5. Docking Station II Manager Software ……………………………………………..… 5.1 Software Installation ……………………………………………..… 6. Connecting to the MGT Docking Station II ……………………………………….…. 6.1 Connecting with SENKO IR Link …………………………………… 6.2 Connecting with USB ………………………………………………. 7. Using Software …………………………………………………………………...…. 7.1 Overview of Software ………………………………………………... -
Page 3: Warning
MGT Docking Station version II WARNING Any unauthorized attempt to repair or modify the product, or any other cause of damage beyond the range of the intended use including damage by fire, lightening, or other hazard, voids liability of the manufacturer. Do not use if the device appears to be damaged. -
Page 4: Overview

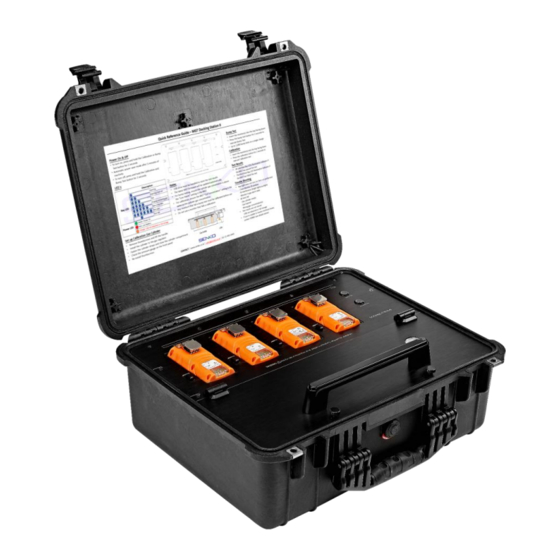

MGT Docking Station version II 1. Overview 1.1 Description A Bump test and the calibration are the key features to ensure the safety of devices and users. MGT docking station version II provides bump testing, event management and calibration from a simple to use multi-unit station and gives fleet or safety managers the ability to update configurations on large fleets. -
Page 5: Key Features
MGT Docking Station version II 1.3 Key Features Zero and Span Calibration, Bump Test Function ✓ Rechargeable internal battery lasts up to 1000 bump tests on a single charge ✓ Indicate the current status of operation by the Power LED and Unit LED color ✓... -
Page 6: Set Up And Operation
MGT Docking Station version II 2. Set up and Operation 2.1 Power turn on/off The MGT Docking Station version II operates using only 2 (two) buttons for calibration and Bump Test. To turn on the power, follow the below: Press and hold either Calibration or Bump Test button for 2 seconds. ✓... -
Page 7: Exhaust Port & Fresh Air Inlet
MGT Docking Station version II 2.4 Exhaust Port & Fresh Air Inlet There are two small ports on the left side of the charging port (see Figure 1). The Fresh air inlet port will draw clean air in during an active test. The incoming air automatically counts as a fresh air (O2, 20.9%vol). -
Page 8: Bump Test
MGT Docking Station version II MGT has failed the MGT has passed test (only 3 LED) the test (six LEDs) Bay locking mechanism Figure 3 Note: Do not use the monitors that failed the calibration test. To remove the MGT monitors from the bay, pull to the left side bay locking mechanism (lower-left side of each bay). -
Page 9: Docking Station Ii Manager Software
Station`s settings and MGT devices` internal configurations. The software can adjust and make changes to the Docking Station and the MGT units using SENKO IR Link and/or partly USB Disk. 5.1 Software Installation After downloading the file, navigate to the saved location. - Page 10 MGT Docking Station version II The Installation will be ready to begin. ✓ Click “Install”. ✓...
-
Page 11: Connecting To The Mgt Docking Station
MGT Docking Station version II Click “Yes” if you get warning message. ✓ The Docking Station Setup Wizard is complete. ✓ Click the “Finish” button to exit the Setup Wizard. ✓ 6. Connecting to the MGT Docking Station II When the Docking Manager software opened, the fields are grayed out and before it can be used, the IR Link must be connected to the Docking Station II. -
Page 12: Connecting With Senko Ir Link
MGT Docking Station version II 6.1 Connecting with SENKO IR Link SENKO IR Link is a device which conveniently configures and communicates with MGT Docking Station II using the IR communication in Bay Unit 1. To connect the IR Link, follow the below: Plug the IR link into a USB port on PC. -
Page 13: Using Software
MGT Docking Station version II 7. Using Software 7.1 Overview of Software Location Serial Number Firmware Version Gas Expiration date on cylinder Save power Mode (1 ~ 3600sec) Cylinder No. Maximum Bump Time (20 ~ 120sec) Read/Write Enable/Disable Cal./Bump Test Docking Station firmware... - Page 14 MGT Docking Station version II 7. Using Software 7.1 Overview of Software Refresh Calibrated by Click serial number Approved by Load the data Print Select the address All the information will be shown automatically Figure 7...
-
Page 15: Docking Station Tab
MGT Docking Station version II When IR Link is connected to the Docking Station II, the Figure 5 will be displayed. But if it is connected using USB Disk, the “Logs” tab will not indicate. 7.1.1 Docking Station Tab Serial Number – Serial number of Docking Station II (cannot be changed). ✓... -
Page 16: Mgt Tab
MGT Docking Station version II 7.1.2 MGT Tab Calibration Interval (Days) – The calibration reminder informs every fixed ✓ day (can adjust 0 (n/a) ~ 365). Bump Interval (Days) – The Bump test reminder informs every fixed day (can ✓ adjust 0 (n/a) ~ 365). -
Page 17: Logs Tab
All logs will be stored on the USB Disk (logs are not available if USB is not plugged) and can be downloaded via SENKO IR Link using Docking Manager software. The log files will be created for each device by their Serial numbers and will be in “.csv”... -
Page 18: Certification Tab
Click “Load” button and information will be shown automatically in the right ✓ side. Select address section between Senko, Senko Canada, Senko EU, No address. ✓ Write the authorized person’s name in the “Calibrated by” & “Approved by” ✓... -
Page 19: Limited Warranty
MGT Docking Station version II Limited Warranty SENKO warrants this product to be free of defects in workmanship and materials-under normal use and service for two years from the date of purchase from the manufacturer or from the product’s authorized reseller.
