General Pump DHRHC50100 Quick Start Manual

GENERAL PUMP
FEATURES / BENEFITS
• Direct hand-crank rewind with locking pin
• Stainless steel Frame
• Durable powdercoated finish (reel)
• 100' Capacity for 3/8" Hose

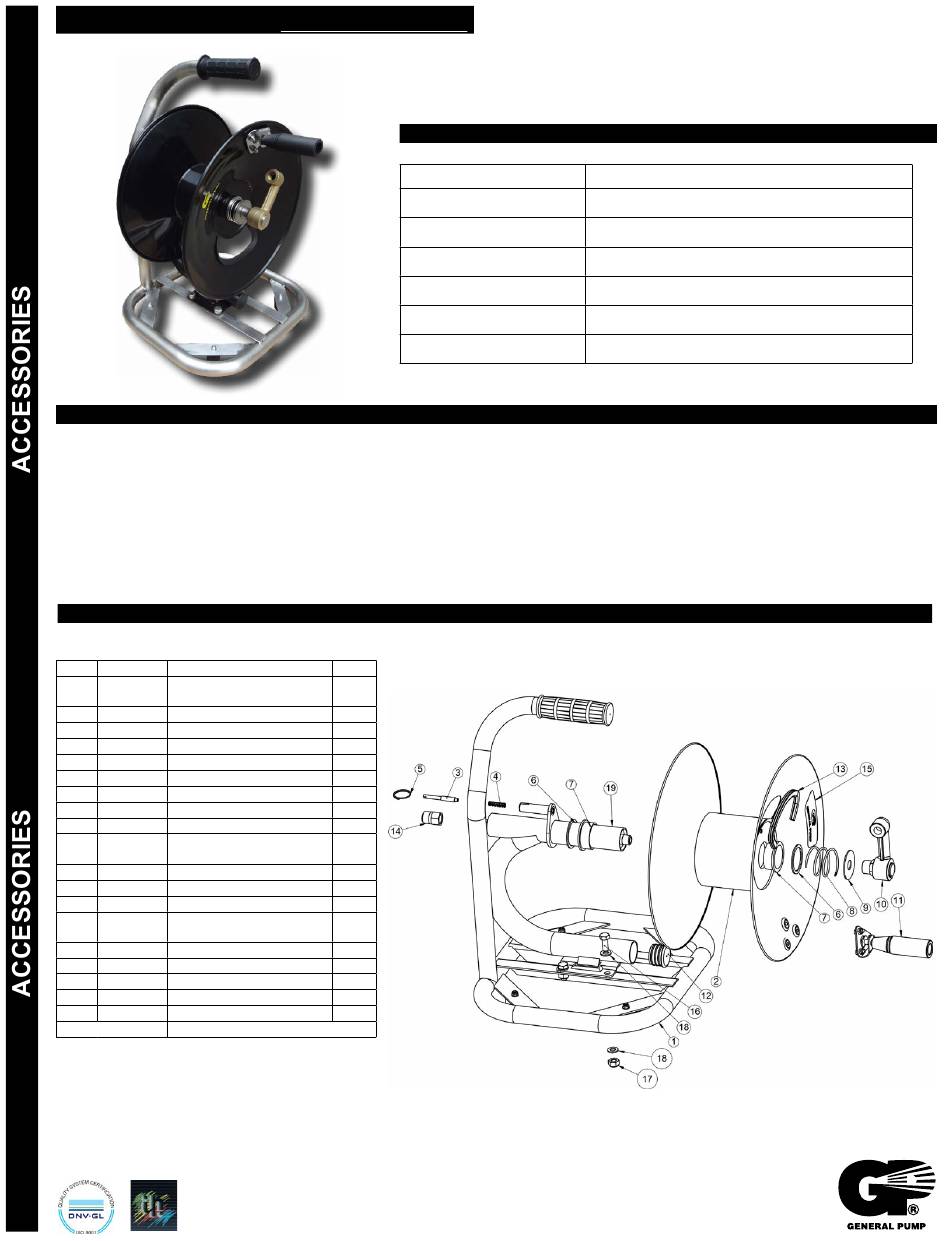

PARTS LIST
Item # Part # Description
FRAME KIT, HAND CARRY,
1 2103152
SS
2 2540011 ASSY, FLANGE, 100'
3 2540001 PIN, LOCK
4 2720004 SPRING
5 2200032 RING
6 2203403 WASHER
7 2530025 BUSHING
8 2720010 SPRING
9 2203416 WASHER, SWIVEL
SWIVEL, HOSE REEL,
10 2103130
FORGED
11 100056 HANDLE KIT
12 2660385 PLUG
13 2702005 GUARD, HOSE
FITTING, 1/2NPT-M
14 2530112
X3/8NPTF
15 2400004 DECAL, GP
16 2200166 BOLT, M10X25, SS
17 2203017 NUT, M10, NYLOK, SST
18 2203413 WASHER, FLAT, M10
19 2103150 ARM, ASSY 100'
2100278 Swivel Repair Kit for DHRHC50100
General Pump
is a member of
the Interpump Group
A member of the Interpump Group
SPECIFICATIONS
PART NUMBER
3/8" Hose Capacity
1/4" Hose Capacity
Pressure Rating
Max. Temp
QTY
1
1
1
1
1
2
2
1
1
1
1
1
1
1
1
4
4
8
1
Industrial Hose Reel
Inlet
Outlet
• 150' Capacity for 1/4" hose
• 5,000 PSI
• 3/8" NPT-M inlet (1/2"NPT-M adapter included)
• 3/8" NPT-F outlet
DHRHC50100
DHRHC50100
100 ft.
150 ft
5,000 PSI
3/8" NPT-M
3/8" NPT-F
185° F
Ref 301061 Rev A
04-21
