SAFETY PRECAUTIONS
1. Make sure incoming pressure does not exceed
the rated pressure.
2. Use proper eye protection when assembling and
using the hose reel.
3. Assemble the hose reel on a clean workbench
free of debris and moisture.
4. Use soap and water when checking for air leaks.
5. Keep children away from work area.
WARNING!
Exposure of skin directly to
pressurized air or fluids could
result in severe bodily injury!
General Pump
1174 Northland Drive • Mendota Heights, MN 55120
Phone: 651.686.2199 • Fax: 800.535.1745
www.generalpump.com • email: sales@gpcompanies.com
Ref 300947 Rev. D
07-16

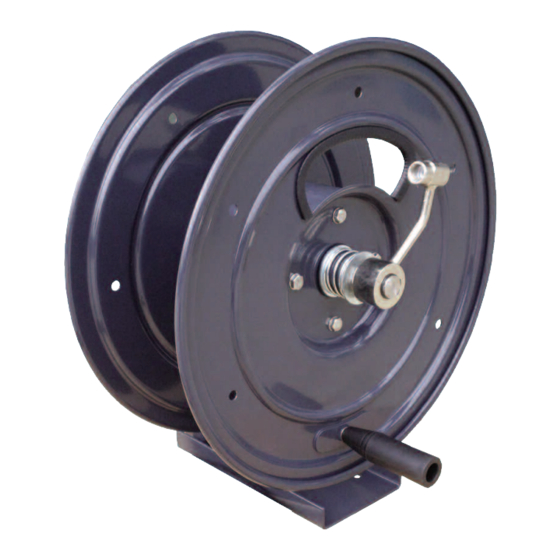

• Direct hand-crank rewind
with locking mechanism
• Solid steel construction
• Durable powdercoat finish
• Full flow swivel
Operator's Manual
Ref 300947 Rev. D
07-16
General Pump
is a member of
The Interpump Group
INDUSTRIAL
HOSE
REELS
From General Pump
DHRP50150
Advertisement
Related Manuals for General Pump DHRP50150
Summary of Contents for General Pump DHRP50150
- Page 1 2. Use proper eye protection when assembling and using the hose reel. From General Pump 3. Assemble the hose reel on a clean workbench free of debris and moisture. 4. Use soap and water when checking for air leaks.
- Page 2 Outlet Capacity wall. Rating 3. Use thread sealant (not provided) on inlet threads and on outlet hose (not provided). DHRP50150 150 Ft. 5000 PSI 3/8” NPT-M 3/8” NPT-F 4. Attach pigtail end to high pressure pump outlet. 5. Attach hose reel hose to swivel on hose reel 6.
