- Page 1 VC-Strip™ User Manual...
- Page 2 Dimensions All measurements are expressed in millimeters © 2012-13 Martin Professional A/S. Information subject to change without notice. Martin Professional A/S and all affiliated companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability to use or reliance on the information contained in this document.
-
Page 3: Table Of Contents
Contents Safety Information ..............4 Introduction . -
Page 4: Safety Information
Safety Information WARNING! Read the safety precautions in this section before installing, powering, operating or servicing this product. The following symbols are used to identify important safety information on the product and in this document: Warning! Warning! Warning! Warning! Safety hazard. Hazardous Fire hazard. - Page 5 • Do not allow the total length of the cables used in a linked chain of VC-Strip modules to exceed 50 m (164 ft.) from the 48 VDC power source (Martin P3 PowerPort 1500™, Martin Tripix Power IP66™ or other external PSU) to the last VC-Strip at the end of the chain.
-
Page 6: Introduction
Introduction Thank you for selecting the Martin VC-Strip™. This compact LED-based display module is designed to integrate into a Martin P3™ video system to display video from a variety of sources, and it can also be controlled using DMX. Use of an RDM-compliant DMX controller such as the Martin M1™ or M-PC™ allows two-way communication and remote management of VC-Strip modules from the controller. -
Page 7: Vc-Strip™ Overview
VC-Strip™ overview VC-Strip 16x1 25 illustrated A - Control button B - 48 VDC power + data throughput (THRU) C - 48 VDC power + data input (IN) D - Module cutting points (VC-Strip 16x1 25™ only) Figure 1: Overview VC-Strip™... -
Page 8: Physical Installation
Physical installation The VC-Strip can be installed in any orientation. The most evenly matched optical characteristics when viewing an installation from the side at an angle are obtained when all VC-Strip modules are oriented horizontally, but unevenness will hardly be noticeable in vertical strips, and then only when viewed from the side. -
Page 9: Shortening 16X1 Modules

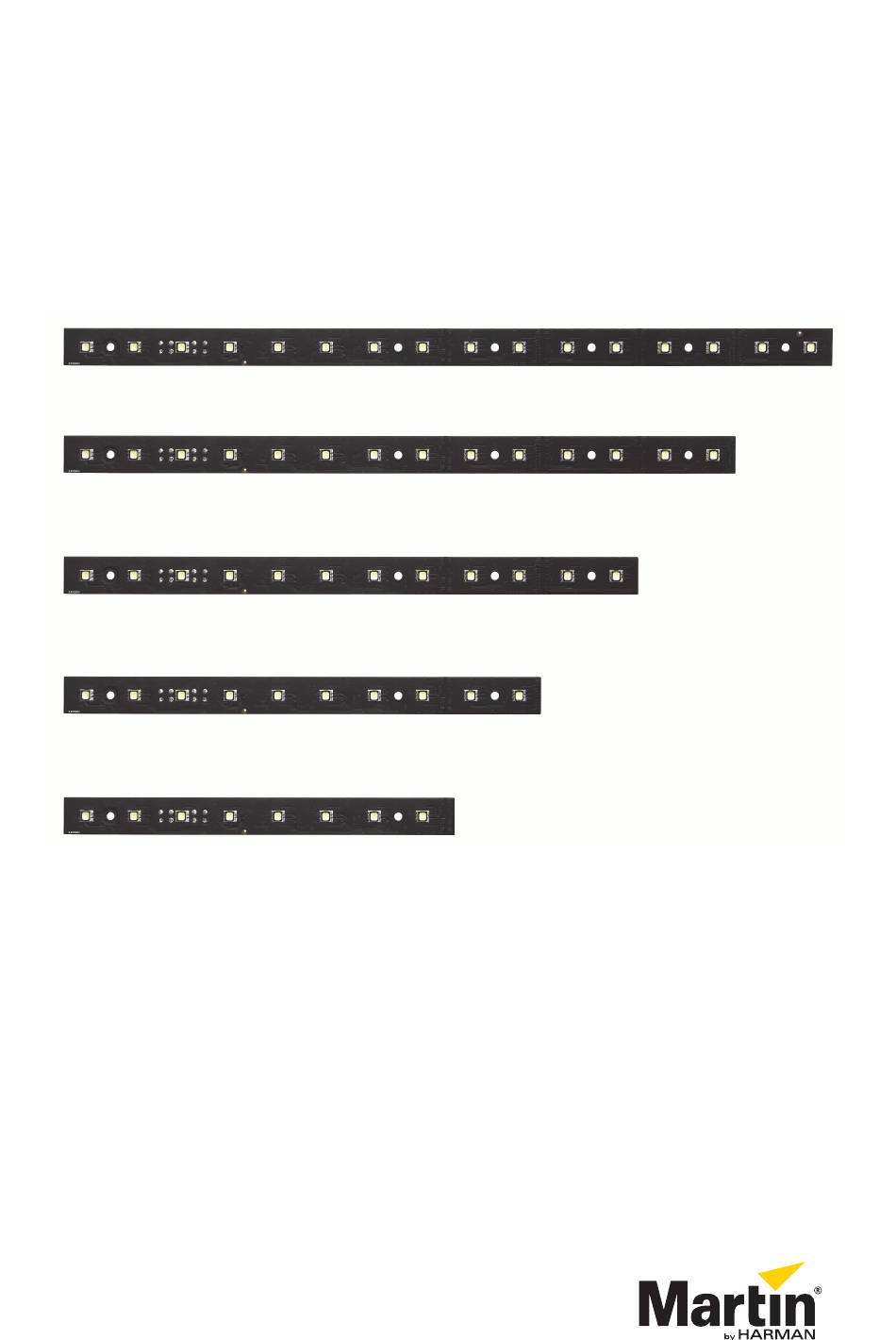

Shortening 16x1 modules It is possible to shorten a VC-Strip 16x1 module by cutting it at one of four possible cutting points (see D in Figure 1), leaving the module with 8, 10, 12 or 14 LEDs. Modules shortened in this way will communicate their length when they identify themselves to a P3 or RDM controller. -
Page 10: System Installation
System installation Warning! Read “Safety Information” on page 4 of this manual carefully before installing a VC-Strip™ system. Warning! Connect the VC-Strip™ only to the devices and using only the Martin™ cables specified in this manual. Warning! Do not exceed the maximum numbers of devices that can be connected and maximum cable lengths specified in this manual and the manuals of the other devices in the system. - Page 11 connect more than fifty, use an unmanaged Ethernet switch to split the P3 data link into branches, each containing less than fifty P3 PowerPort 1500s. 8. Connect the P3 PowerPort 1500™ to AC mains power at 100 - 240 V, 50/60 Hz as described in its user manual.
-
Page 12: Installing A Dmx-Controlled System
Installing a DMX-controlled system In a DMX-controlled system, an RDM-compliant DMX lighting controller sends a DMX control data signal over a DMX link to the installation, and then over the hybrid link to the VC-Strips. The DMX link requires DMX cable. It can be maximum 300 m (1000 ft.) in length and must run in one single daisy-chain, but it can be extended or split into branches using an RDM-compliant amplifier/splitter such as the Martin RDM 5.5 Splitter™... - Page 13 Installing a DMX system using the Tripix Power IP66™ DMX/RDM Controller 48 VDC power DMX link (DMX cable) Hybrid (DC power and data) link DMX/RDM Splitter (if used) Tripix Power IP66 Tripix Power IP66 Tripix Power IP66 Hybrid Hybrid lead-in cable, lead-in cable, Tripix Power IP66 Tripix Power IP66...
- Page 14 To create a DMX-controlled installation that draws DC power from the Martin Tripix Power IP66: 1. See Figure 7 on page 13 for an overview of this type of installation 2. Make sure that no devices in the installation can be connected to AC mains power until all installation work is complete.
- Page 15 Installing a DMX system using a generic external 48 VDC PSU DMX/RDM Controller 48 VDC power DMX link (DMX cable) Hybrid (DC power and data) link DMX/RDM Splitter (if used) External PSU External PSU Hybrid DC Hybrid DC lead-in cable lead-in cable Inline fuse Inline fuse...
- Page 16 To create a DMX-controlled installation that draws DC power from a generic PSU: 1. See Figure 9 on page 15 for an overview of this type of installation. 2. Make sure that no devices in the installation can be connected to AC mains power until all installation work is complete.
-
Page 17: Connecting Additional Devices To A Vc-Strip Chain
Connecting additional devices to a VC-Strip chain Drawing off combined data and DC power from the end of a chain If you want to continue the hybrid link to carry 48 VDC power and a P3 video or DMX signal from the end of a VC-Strip chain to other devices, connect a Martin Hybrid Adapter Cable, PCB to 4-pin female XLR, P/N 11840159, to the OUT connector of the last module in the chain. -
Page 18: System Setup
System setup Warning! Before applying power to the VC-Strip: • Carefully review the safety information starting on page 4 • Check that the installation is safe and secure. Setting up for P3 display A Martin P3™ system allows video to be displayed on an installation that consists of or includes VC-Strip devices. - Page 19 If a VC-Strip module is set to individual pixel control (see “Setting modules to grouped or pixel control modes” on page 20), LEDs are given DMX addresses using a ‘left-to-right’ numbering system. For example, if one VC-Strip RGB module is set to pixel control and set to DMX address 1, each of the 16 LEDs will use 3 channels, and the module will use DMX channels 1 - 48 (Channel 1 -3 for the first pixel, channels 4 - 6 for the next pixel etc.
-
Page 20: Setting Up Shortened Modules
Setting DMX Addresses See Figure 11. To set DMX addresses using the M-PC application, open the RDM View window and click on Scan to display a list of the elements in the installation. Click in the Address box for each VC-Strip module and enter the desired DMX address, then press the Enter key to store the DMX address for that module. -
Page 21: Using The Vc-Strip
Using the VC-Strip Warning! Before applying power to the VC-Strip: • Carefully review the safety information starting on page 4 • Check that the installation is safe and secure. Do not use the VC-Strip if the ambient temperature exceeds 45° C (113° F) or falls below -20° C (-4° F). P3 display The VC-Strip will display video from all common video sources that is processed and sent via a Martin P3™... - Page 22 VC-Strip CW, MW and WW LEDs Output Indication Action required LEDs 1 Busy (e.g. booting up or writing to Wait a moment for normal operation Constant and 3 flash memory). to be resumed. Error. The VC-Strip has encountered Perform a factory reboot, followed by LED 1 Constant a fatal error and can not run.
- Page 23 VC-Strip CW, MW and WW Button action Function Short press The first press displays status as shown in Table 4 for a few seconds. The next presses display the following test patterns on the LEDs (one short press scrolls to next pattern): - Calibrated white 100% - White 33% - White 33%...
-
Page 24: Service And Maintenance
Service and maintenance Warning! Read “Safety Information” on page 4 before carrying out service on the VC-Strip. Warning! Isolate the installation from AC mains power before servicing. Warning! Refer any service operation not described in this manual to a qualified service technician. -
Page 25: Troubleshooting
Troubleshooting Problem Probable cause(s) Remedy Check that system is correctly connected, set up Control is lost and pressing and running. control button causes VC-Strip Error has occurred. Hold control button pressed in until it turns blue, to show constant or flashing red then release, to reboot VC-Strip. -
Page 26: Specifications
Specifications Physical VC-Strip 16x1 25™ Length ..............399 mm (15.7 in.) Width . - Page 27 Output Luminous intensity, RGB, calibrated mode ......... . . 4000 Nit Luminous intensity, RGB, raw mode .
- Page 28 VC-Strip 8x1 Peak heat dissipation (calculated, at full intensity, full white)......14 BTU/hr. Typical heat dissipation (calculated, with typical video content) .
- Page 29 Ordering information VC-Strip 16x1 25™ RGB ........... . P/N 90357290 VC-Strip 16x1 25™...
