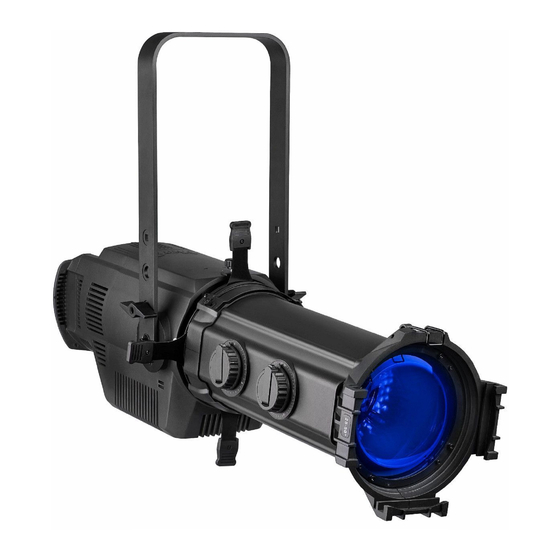

ELP CL IP LED Profile
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Martin ELP CL IP and is the answer not in the manual?

Questions and answers

Related Manuals for Harman Martin ELP CL IP

Summary of Contents for Harman Martin ELP CL IP

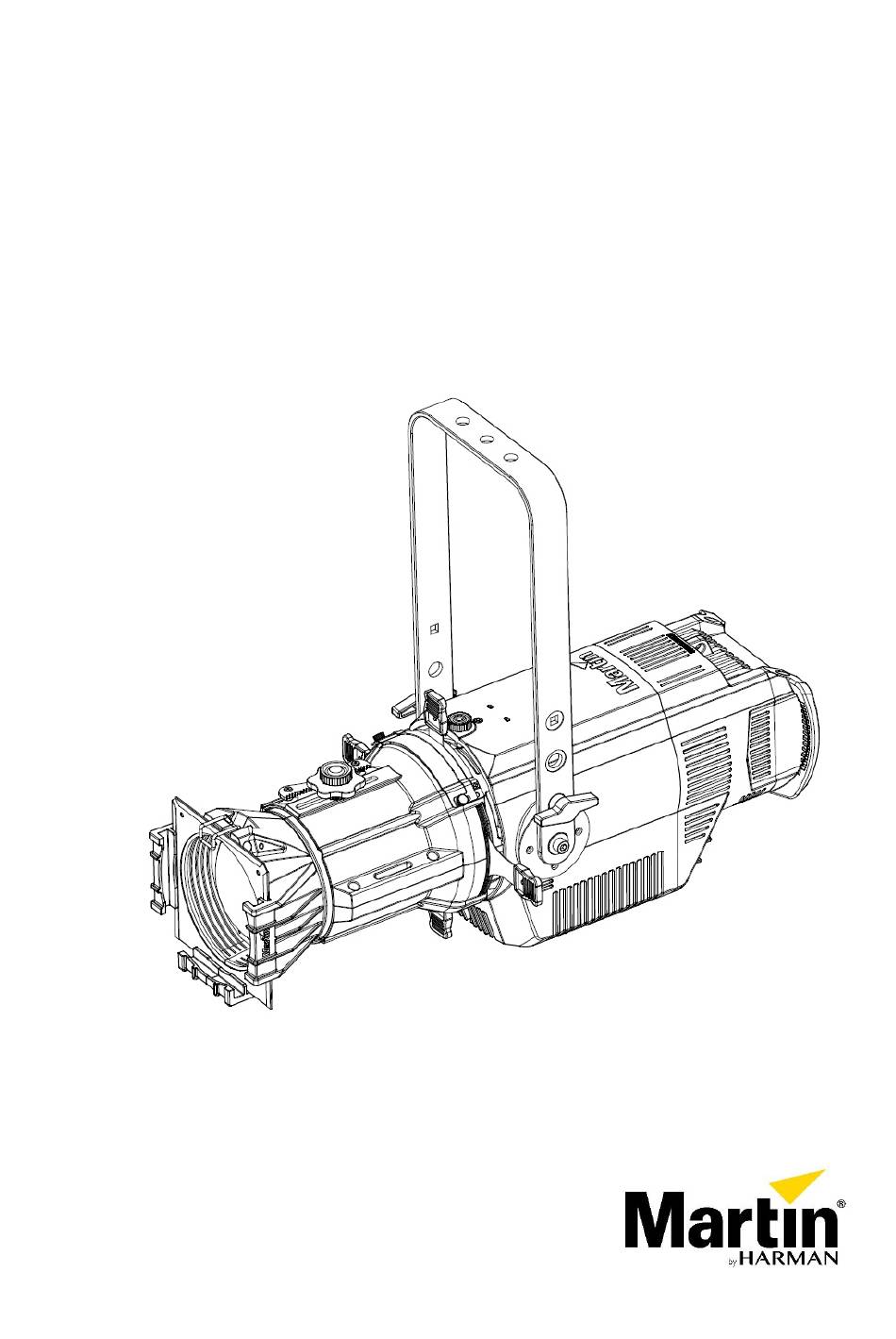

  • Page 1 ELP CL IP LED Profile User Manual...

  • Page 2: Dimensions

    Martin®, HARMAN and all other trademarks in this document pertaining to services or products by Martin Professional or its affiliates and subsidiaries are registered as the property of HARMAN Professional Denmark.

  • Page 3: Table Of Contents

    Table of contents Dimensions ................... 2 Safety information ................. 5 Introduction ................... 9 Before using the product for the first time ........9 Fixture overview .................. 10 Physical installation ................11 Fixture location ................. 11 Mounting the fixture ..............11 Fastening the fixture to a flat surface ........
  • Page 4 Use of filters ................25 Use of gobos and irises ............25 Service and maintenance ..............25 Cleaning ..................26 Pressure relief valves ............... 26 Uploading new firmware ............27 Service and repairs ..............27 DMX protocol ..................28 Control menus ..................30 Troubleshooting ..................

  • Page 5: Safety Information

    Martin website at http://www.martin.com Technical Support If you have questions about how to install, service or operate the fixture safely, please contact Harman Professional Technical support:  For technical support in North America, please contact HProTechSupportUSA@harman.com / phone: (844) 776-4899 ...
  • Page 6 Protection from electric shock Ensure that the fixture is electrically connected to ground (earth). Disconnect the fixture from AC power when not in use. Do not open the fixture or remove any cover. Refer any service operation not described in this manual to an authorized Martin Service partner. Shut down power to the entire installation at the main power distribution board and lock out power before carrying out any installation or maintenance work.
  • Page 7 Protection from burns and fire Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C (104° F). The surface of the fixture can reach up to 55° C (131° F) if the fixture is operated at the maximum permitted ambient temperature. Allow the fixture to cool for at least 5 minutes before handling.
  • Page 8 Position the fixture so that persons cannot be exposed to the fixture's light output at a distance of less than 5.8 m (19 ft.) from the fixture, and so that prolonged staring into the light output at less than 23 m (75.5 ft.) from the fixture is not expected.

  • Page 9: Introduction

    The Martin ELP CL IP can be controlled using any DMX-compliant controller and can be remotely configured by RDM. It also features stand-alone operation with capacity for up to 20 scenes.

  • Page 10: Fixture Overview

    Fixture overview 1 – Filter retaining clip 10 – Heatsink vent 2 – Filter frame 11 – Safety cable attachment point 3 – Interchangeable optical lens tube 12 – Rear handles for positioning 4 – Lens tube housing 13 – Control panel 5 –...

  • Page 11: Physical Installation

    Physical installation Warning! Read ‘Safety information’ on page 5 before installing the fixture. Warning! The safety and suitability of lifting equipment, installation location, anchoring method, mounting hardware and electrical installation are the responsibility of the installer. All local safety regulations and legal requirements must be observed when installing and connecting the fixture.

  • Page 12: Mounting The Fixture On A Truss

    Mounting the fixture on a truss The fixture can be clamped to a truss or similar rigging structure in any orientation. Use a suitable rigging clamp such as a G-clamp or a half-coupler clamp (see illustration on right) fastened to the mounting yoke. To clamp the fixture to a truss: 1.

  • Page 13: Changing The Lens Tube

    Changing the lens tube Four different lens tubes with fixed beam angles of 19°, 26°, 36° or 50° are available for the fixture. Two zoom lens tubes with either 15°-30° or 25°-50° zoom ranges are also available. All lens tubes are available in black or white finish.

  • Page 14: Ac Power

    AC power Warning! Read ‘Safety information’ on page 5 before installing the fixture. For protection from electric shock, the fixture must be grounded (earthed). The power distribution circuit must be equipped with a fuse or circuit breaker and ground-fault (earth-fault) protection. If you want to connect fixtures to power in a daisy-chain, use correctly dimensioned cables (see ‘Linking fixtures to power in a chain’...
  • Page 15 If you install a power plug on a 12 AWG / 2.5 mm power input cable, install a grounding type (earthed) plug with integral cable grip that is rated minimum 16 A, 250 V. Power relay cables If you connect fixtures to power in a daisy-chain, we recommend that you use the 16 amp rated power relay cables available from Martin (see ‘Accessories’...

  • Page 16: Control Data

    Control data Warning! Read ‘Safety information’ on page 5 before installing the fixture. Keep all connectors sealed with their rubber caps when not in use. Use only IP65-rated connectors when making data connections to the fixture. A DMX 512 data link is required in order to control the fixture via DMX. The fixture has 5-pin XLR connectors for DMX data input and output.

  • Page 17: Fixture Setup

    Fixture Setup This section explains the fixture characteristics you can set that determine how it can be controlled and will behave. You choose the settings using the menus available from the control panel, and they are retained even when the fixture is powered off. Options can also be set over the DMX line using RDM from a suitable controller, see “Setting options by RDM”...

  • Page 18: Setting Dmx Address

    Setting DMX address Each fixture must be assigned a DMX address. The DMX address, also known as the start channel, is the first channel used to receive instructions from a DMX controller. The fixture is controlled using between 1 and 17 DMX channels depending on the personality set. If a fixture using 17 channels has a DMX address of 1, then it uses channels 1 to 17 inclusive.
  • Page 19 In 10-Channel and 17-Channel Modes these settings also determine the base color temperature of the fixture’s white light output. In these modes you can use color mixing on top of this color temperature. Dimming curves Four dimming modes are available: LINEAR The increase in light intensity appears to be linear as DMX value is increased.

  • Page 20: Display

    Press ENTER to confirm. Display This option allows you to set some parameters for the display screen. Select DISPLAY from the PERSONALITY menu and press ENTER to confirm. Use the UP and DOWN buttons to select:  DISPLAY SLEEP – Use the UP and DOWN buttons to select display sleep time, settings are ON (Display permanently on), 2 MINUTES, 5 MINUTES or 10 MINUTES ...

  • Page 21: Setting A Sequence Of Scenes

    Press MENU to go back up and select a different function to control. Setting a sequence of scenes The SHOW menu allows the fixture to store up to 20 scenes internally and display them in a timed sequence. SET SCENE TOTALS sets how many scenes will be in the sequence, from 1 to 20. To store scenes, select EDIT SCENE COLOR and press ENTER.

  • Page 22: Setting Options By Rdm

    Setting options by RDM You can remotely configure the fixture over the DMX line using a suitable RDM-compatible controller that is connected to the installation via a DMX data link. A full list of the RDM functions that the ELP fixture supports is given at the end of this chapter. These functions are generally referred to using the more specific term ‘PIDs’...
  • Page 23   DMX_START_ADDRESS   DEVICE_HOURS   IDENTIFY_DEVICE  LAST_STATE  DIMMER_CURVE Martin® ELP CL IP User Manual...

  • Page 24: Effects

    Effects This section describes the effects provided by the ELP CL IP fixture. See ‘DMX protocol’ on page 28 for a full list of the DMX channels and values required to control the different effects. In 17Ch DMX control mode, all intensity controls are 16-bit. In 10Ch mode all controls are 8-bit. Dimming Overall intensity can be precisely adjusted from 0 to 100% using 16-bit coarse and fine control.

  • Page 25: Use Of Filters

    Use of filters The color filter frame that is supplied with the lens tube lets you add color correction or diffusion filters to the front of the fixture. Push the filter retaining clip (see 1 in ‘Fixture overview’ on page 10) to one side to insert and remove filters.

  • Page 26: Service And Maintenance

    Service and maintenance Warning! Read ‘Safety information’ on page 6 before servicing the fixture. Refer any service operation not described in this user manual to a qualified service technician. Excessive dust, smoke fluid, and particle buildup degrades performance, causes overheating and will damage the fixture. Damage caused by inadequate cleaning or maintenance is not covered by the product warranty.

  • Page 27: Uploading New Firmware

    present, we recommend that you replace the valves with their rubber seals at each major service interval. If heavy dust or dirt is present and the fixture is powered on and off frequently you should monitor a potential need for valve replacement carefully. If any valve shows signs of contamination or is not in perfect condition, replace it immediately.

  • Page 28: Dmx Protocol

    DMX protocol Channel DMX range Function 10CH 17CH Shutter 000-009 Blackout 010-019 Open 020-089 Strobe (Slow-Fast) 090-099 Open 100-169 Pulse effect in sequences 170-179 Open 180-249 Random strobe effect (Slow-Fast) 250-255 Open 0-255 Dimmer 0-100% 0-255 Dimmer Fine 0-255 Dimmer fade time CTC 2000K –...
  • Page 29 Channel DMX range Function 10CH 17CH 94-103 Deep straw 104-112 Deep Amber 113-122 Orange 123-131 Primary Red 132-141 Medium Pink 142-150 Dark Pink 151-160 Magenta 161-169 Medium Purple 170-179 Dark Lavender 180-188 Deep Purple 189-198 Sky Blue 199-207 Light Blue 208-217 Medium Blue 218-226...

  • Page 30: Control Menus

    Control menus To access the control menus, press the MENU button. Use the UP and DOWN buttons to navigate the menus. Select any required menu option using the ENTER button. For more information, see ‘Using the control menus’ on page 17. Default fixture settings are shown in bold. Top Menu Menu level 2 Menu level 3...
  • Page 31 Top Menu Menu level 2 Menu level 3 Menu level 4 Notes Personality PWM Freq 600-2400Hz LED PWM frequency (continued) (Default = 1200 Hz) No Data Blackout If data connection is lost, fixture will blackout Hold If data connection is lost, fixture holds latest received data value at all channels Cool mode...
  • Page 32 Information Power On 0 - XXXX h Hours fixture has been powered on since manufacture (not user- resettable) LED Hours 0 - XXXX h Number of hours fixture LEDs have been powered on since manufacture (not user-resettable) SW Version XX.XX.XX Displays currently active software version Fixture ID...
  • Page 33 Service Calibration Password Enter password (019) (continued) (continued) before replacing default calibration settings Def HQ Set Save Replace factory default calibration settings with current high-quality calibration settings Def HO Set Save Replace factory default calibration settings with current high-output calibration settings Martin®...

  • Page 34: Troubleshooting

    Troubleshooting This section describes a few common problems that may occur during operation and provides some suggestions for easy troubleshooting: Symptom Potential cause Remedies No light from fixture. Shutters are all pushed Pull out the 4 shutter blades. in, blocking the light. Power supply issue, Ensure that the mains supply is connected such as blown fuse,...

  • Page 35: Specifications

    Specifications Physical Length ...................... 644 mm (25.4 in.) Width ......................255 mm (10.1 in.) Height ....................... 255 mm (10.1 in.) Height (with bracket) ................527 mm (20.1 in.) Weight ......................11 kg (24.3 lb.) Dynamic Effects Color mixing ......................RGBLA Color selection ....................
  • Page 36 Gobos and Color Frame Gobo size ..............A size, 100 mm OD, 75 mm image* Gobo size ..............B size, 86 mm OD, 64.5 mm image* Color frame size ............. 159 x 159 mm (6.25 in. x 6.25 in.) * Goboholder not included Installation Mounting ....................
  • Page 37 Ordering Information Fixtures without lens tubes Martin ELP CL IP (fixture body only) ............P/N 9045122814 Martin ELP CL IP (fixture body only), White ..........P/N 9045122816 Lens tube options* Martin ELP Lens Tube 19° ................ P/N 9045107782 Martin ELP Lens Tube 26° ................ P/N 9045107783 Martin ELP Lens Tube 36°...
  • Page 38 Supplier’s declaration of conformity Harman Professional, Inc. have issued an FCC Supplier’s Declaration of Conformity for this product. The Declaration of Conformity is available for download from the product’s pages on the Martin website at www.martin.com. Disposing of the product...
  • Page 40 www.martin.com...
