KOY & ZEPHYR
THERMOSTATIC SHOWER MIXER
www.sanipexgroup.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the KOY and is the answer not in the manual?

Questions and answers

Related Manuals for Sanipex KOY

Summary of Contents for Sanipex KOY

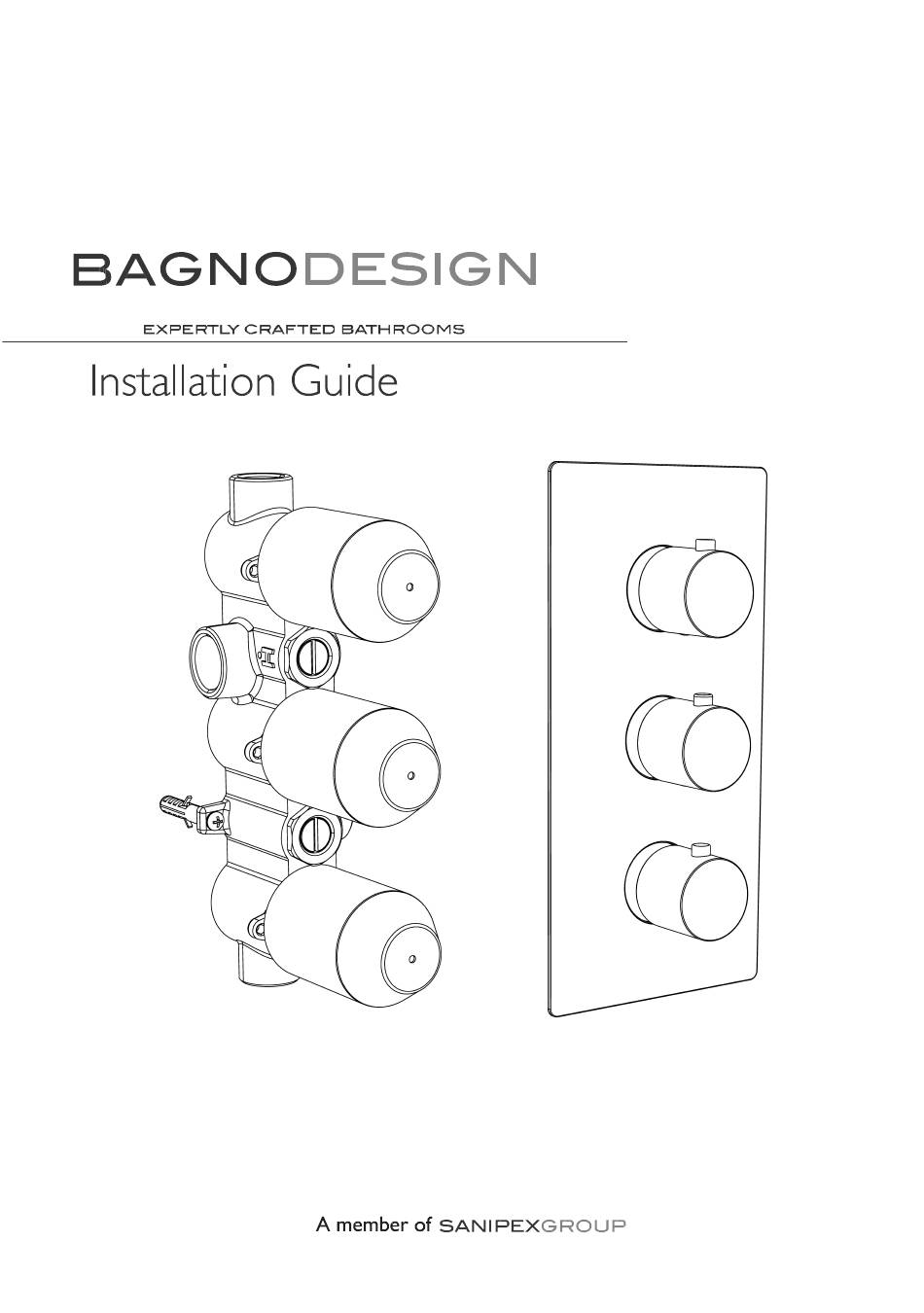

  • Page 1 KOY & ZEPHYR THERMOSTATIC SHOWER MIXER www.sanipexgroup.com...

  • Page 3: Important Please Read

    IMPORTANT PLEASE READ All products manufactured and supplied by BAGNODESIGN are fit for purpose as long as they are Installed, used correctly, cleaned receive regular maintenance accordance with these instructions ... Remove all packaging and check the product for damage or missing parts before commencing with the installation.

  • Page 5: Installation Types

    INSTALLATION TYPES Solid Wall Installation - Place the valve on the wall, level and mark the positions of the 2 fixing points, drill the wall with the correct sized drill bit, install the wall plugs and screw to fasten the valve to the wall.
  • Page 6 ONE OUTLET / 2 HANDLE — CONCEALED PART Install the concealed part at a depth so that the Install the cold water supply from the right and finished surface is between the Min/Max marking hot water supply from the left as shown per the above.
  • Page 7 TWO OUTLET / 2 HANDLE — CONCEALED PART Install the concealed part at a depth so that the Install the cold water supply from the right and finished surface is between the Min/Max marking hot water supply from the left as shown per the above.
  • Page 8 THREE OUTLET / 3 HANDLE — CONCEALED PART Top outlet to head shower* Side outlet to hand shower* Bottom outlet to bath spout or other* Install the concealed part at a depth so that the Install the cold water supply from the right and finished surface is between the Min/Max marking hot water supply from the left as shown per the above.
  • Page 9 DIVERTER HANDLE INSTALLATION & OPERATION ONE OUTLET Turn the spindle of the valve as far anti-clockwise until its stops. Place the diverter handle on at the 12 o’clock position. Tighten the grub screw from underneath until secure. Insert the screw cover. TWO OUTLET The diverter has 3 positions.
  • Page 10 TEMPERATURE CONTROL HANDLE INSTALLATION & OPERATION — ALL MODELS The Calibration ring is pre-installed and set at the 12 o’clock position at 38°C DO NOT REMOVE Place the diverter handle in position. Tighten the grub screw from underneath until secure. Insert the screw cover.
  • Page 11 ADJUSTMENT OF HANDLES Adjustment of diverter handle 1. Spindle gear 12 o'clock direction. OK! 2. O-ring 3. Set screw 4. O-ring 5. Handle 6. Set screw If not point to 12 O'clock, 7. Plug reset the handle. 8. Stop ring 9.
  • Page 12 COMMISSIONING To Commission a thermostatic mixer firstly check the following: (requirements on page 2) The supply water temperatures are within the valves operating range. The supply working pressures are within the valves operating range. The supply working pressures are balanced Isolating valves (and strainers preferred are provided.

  • Page 13: Maintenance

    MAINTENANCE INLET FILTERS: Periodically the filters will need to be cleaned. first remove all handles and than the faceplate. Using a spanner carefully remove the filter housing (not the screwdriver slot) from the mixer body, flush under water to remove the small debris or soak overnight. Re-install the filters back into the body and re-tighten.
  • Page 14 Note:...
  • Page 15 Note:...
  • Page 16 INM-KOY/ZEP-THERMO_MIXER-08-21...

This manual is also suitable for:

Zephyr
