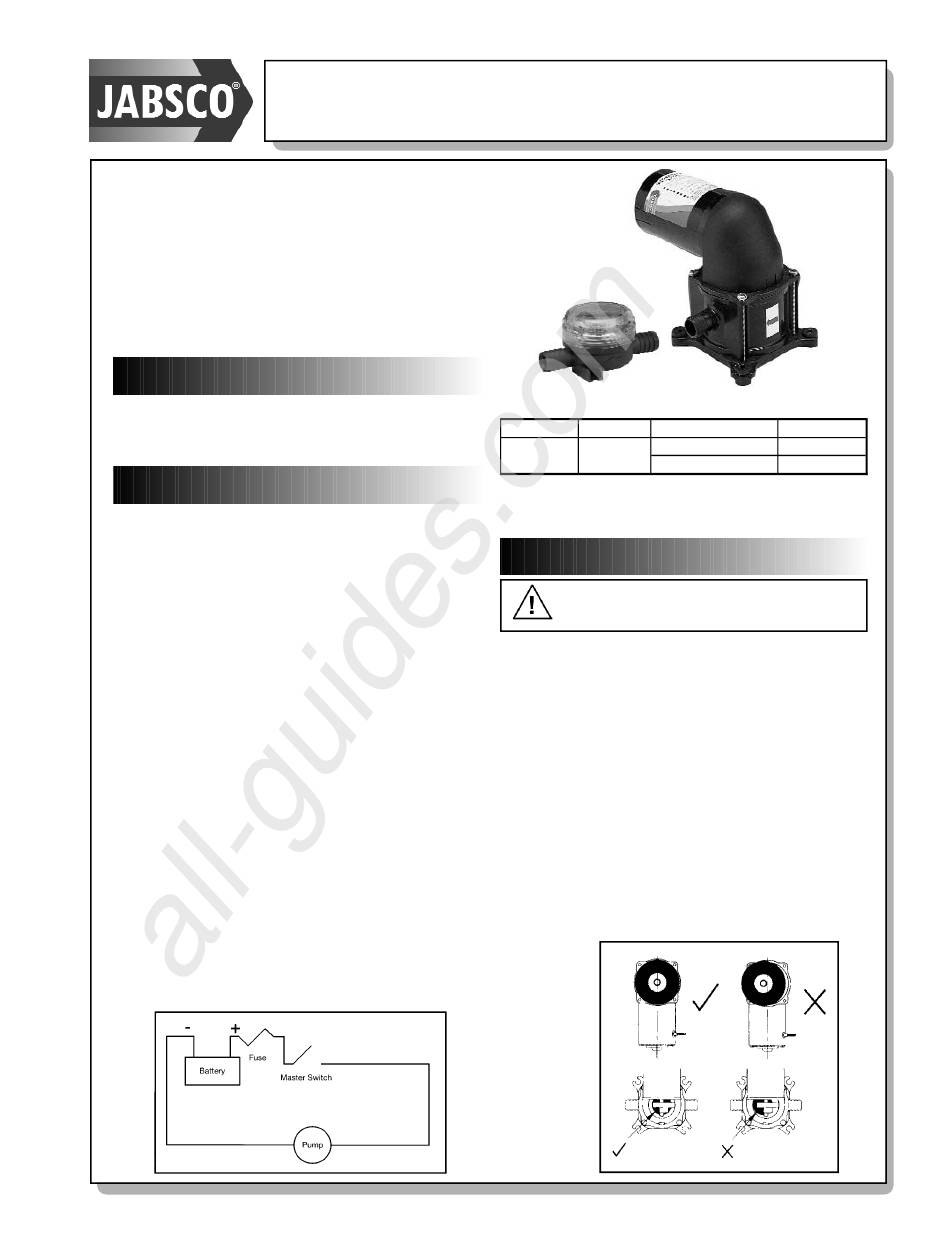

JABSCO 37202-2712 Quick Start Manual

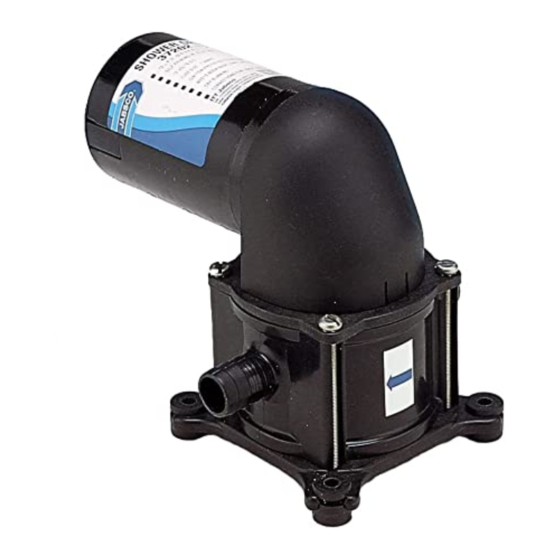

37202-2712
• New, higher output 15lpm (3.3gpm) bilge pump model
• Quieter Running
• Constructed From Corrosion Resistant Materials
• ISO 8846 MARINE (Ignition Protection)
• ISO 8849 MARINE (Electric Bilge Pumps)
• BSEN 50081 (Electro Magnetic Compatibility)
• Dry Running
• Supplied Complete With Pumpguard
Specifications
• 900 lph (210 gph) at 3m H²O (30 Kpa)
• Self Priming to 2 metres (6 ft)
• Connections for 19mm (¾") I.D. hose
Installation and Safety
1. Fit pump in a dry position, as close as possible to
the liquid being pumped, where there is full access
to the pump for service.
2. Use 19mm (¾") i.d. spiral reinforced hose (with a
smooth internal bore), or semi-rigid pipework
systems.
3. Pipe runs should be as straight and as short as
possible, avoiding rising and dipping over
obstructions.
4. Fit strainer on inlet side of pump.
5. All marine pumps discharging overboard must be
installed with the overboard discharge well above
both static and heeled waterlines (Sailboats
normally discharge through the transom).
6. Motor cases may get hot. Prolonged contact during
operation may cause burns.
7. Do no use for pumping petrol, petroleum products,
or fluids with flash points below 37ºC.
Electrical Connections
• Wire the pump in an independent circuit.
• Refer to the diagram for wiring connections.
• Refer to wiring table for fuse and wire size.
• If installing with a two or three way master switch,
ensure that it has a minimum 10 amp capacity.
Wiring Diagram
All manuals and user guides at all-guides.com
Bilge Pump
Wiring Table
Model No. Fuse Size Cable Length *
0 - 7.6m (0 - 25ft)
37202-0712 10 amp
7.6 - 15m (25 - 50ft)
*Cable length is the total distance from the battery to
the pump and back to the battery.
Maintenance
ALWAYS DISCONNECT PUMP FROM
POWER SUPPLY!
Remove pipework, remove four connecting bolts from
pump, remove motor bracket and diaphragm
assembly.
Valve Replacement
Remove valve retaining plate, remove and replace
valves ensuring correct installation. Replace valve
retaining plate.
Diaphragm Replacement
Unscrew bolt separating diaphragm assembly,
reassemble new diaphragm, diaphragm plate, washer
and bolt onto connecting rod.
Ensure the diaphragm is located centrally before
reassembling the motor, bracket and diaphragm onto
the body.
Wire Size
2.5mm²
4mm²
