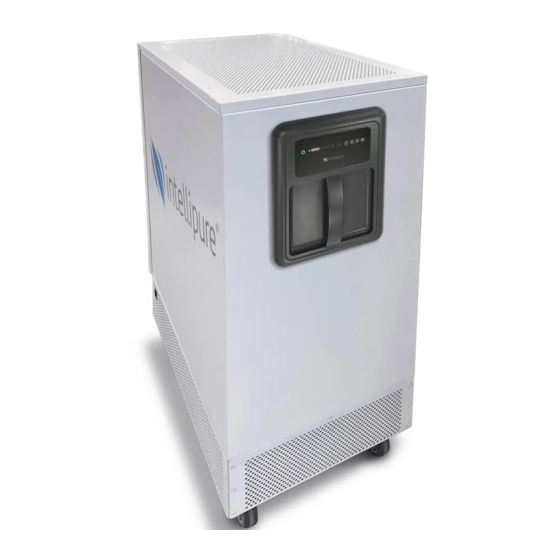

- Page 1 INTELLIPURE 950P PORTABLE AIR CLEANER POWERED BY Copyright ©2020 Delos Living LLC. All rights reserved.
- Page 2 950 CFM Delos Living LLC is a reseller, not the manufacturer of the products. Products are manufactured by Healthway Home Products, Inc. Copyright ©2020 Delos Living LLC. All rights reserved. *Individual particle sizes and specific particle size ranges may have different filtration efficiency rates.
- Page 3 Operation Manual Intellipure 950P COMMERCIAL PORTABLE AIR PURIFICATION SYSTEM...
-
Page 5: Table Of Contents
Prefilter Replacement V-Bank Main Filter Replacement Cleaning the Unit Parts List Troubleshooting ........14 System Schematic .........15 Part Number: #10065 Copyright: © 2020 All rights reserved. Address: Intellipure, Inc. 3420 Maple Ave. Pulaski, NY 13142 Phone No: 315-298-2904 1-800-843-3860 Email: info@healthway.com... -
Page 6: Limited Warranty
This one year Limited Warranty applies only to the repair and replacement of any manufactured or supplied part of this product which, upon inspection by HealthWay authorized personnel, proves to have failed in normal use due to defects in material or workmanship. A return authorization must be obtained before any product is shipped to the manufacturer for warranty repair and all transportation charges must be prepaid all work must be performed by a HealthWay authorized technician. -
Page 7: Safety Precautions
When a freight carrier signs the HealthWay bill of lading, the carrier accepts the responsibility for any subsequent shortages or damage evident or concealed. Inspection by the carrier of damage evident or concealed must be requested. -
Page 8: System Overview
System Overview UNIT DESCRIPTION The Air Cleaning System is a high performance system that utilizes patented award-winning Disinfecting Fil- tration System technology. DFS technology electrically converts a low efficiency, high flow, low pressure drop filter to high efficiency while retaining the low pressure drop and longer life advantages of the base filter material. This technology has also been shown to inhibit bacteria growth on the filter. -
Page 9: Installation Procedures
Intellipure 950P Installation Procedures POWER REQUIREMENT The power requirements are as follows: *Electrical disconnects may also be required - check local electrical codes Power Usage Power Requirement Max Start-up Model Phase AMPS WATTS 950P 950P 1.71 LOCATION DETERMINATION The 950P is designed as a portable floor model. Place the air purifier anywhere in the room; being careful not to block air from “entering”... -
Page 10: System Operation
System Operation ELECTRICAL CONNECTION Inspect power cord for damage before plugging in. The outlet must be grounded. On-board Touch Pad Diagram a) Power button f-1) VOC Pre-filter indicator h-2) Change VOC post-filter indicator b) Sleep mode f-2) Change VOC pre-filter indicator i-1) DFS indicator c) Slide speed control g-1) Main filter indicator... - Page 11 Intellipure 950P System Operation POWER ON / OFF When unit is plugged in, control goes through self-diagnosis and then returns to the last setting before power was lost. When unit is off (and plugged in), only the power button is dimly lit. SPEED CONTROL When unit is turned on, Power Button, Speed Bar, DFS and Filter Lights will be illuminated white.
-
Page 12: Maintenance
Maintenance When replacing filters use only HealthWay certified filters. HealthWay filters are designed for high voltage operation. Use of non-HealthWay filters can be hazardous to personnel and equipment voiding the warranty. PREFILTER REPLACEMENT Lock the (2) front wheels to secure the unit. (fig-1) Remove the filter access door by unlocking four quarter turn latches. -
Page 13: V-Bank Main Filter Replacement
Intellipure 950P Maintenance Always unplug the unit and wait a minimum of 30 seconds before touching the unit. V-BANK MAIN FILTER REPLACEMENT - Lock the (2) front wheels to secure the unit. (fig-1 on page 10) - Remove the filter access door by unlocking four quarter turn latches (fig-2 on page 10). - Filter Access Door removal may require a firm pulling effort. -
Page 14: Cleaning The Unit
Maintenance CLEANING THE UNIT Depending on contamination level, this procedure should be conducted about once a year or during each filter change or if an electrical problem occurs. Remove the V-Bank Main Filter and High Energy Grid Assembly Refer to page 11 for proper instructions. To clean the wires, use a lint free swab, either dry or moistened with denatured alcohol, clean along the length of each wire and spring clips. -
Page 15: Parts List
Intellipure 950P Maintenance PARTS LIST HealthWay recommends that the following spare parts be available on-site at all times. Order all parts by contacting: Phone No: 315-298-2904 • 1-800-843-3860 Fax No: 315-298-6992 Email: info@healthway.com Description Part Number Prefilter FT-101-2 V-Bank Main Filter... -
Page 16: Troubleshooting
Troubleshooting For additional troubleshooting assistance refer to the DFS Troubleshooting Guide on the following page or contact HealthWay; Monday-Friday, 8am-5pm EST: Phone No: 315-298-2904 • 1-800-843-3860 Fax No: 315-298-6992 Email: info@healthway.com Service should only be done by a qualified factory trained technician. -
Page 17: System Schematic
Intellipure 950P... - Page 18 intellipure.com...
