Everbilt PCLT4WHD Use And Care Manual

TOOLS REQUIRED
Wire Cutters Utility Knife
Installation
1
CUTTING THE EXISTING DUCT
□ Cut the existing duct attached to
the dryer about 10 in. above the
top control panel of the dryer.
4
INSTALLING THE UNIT TO THE WALL
□ Locate a stud behind the wall or mount directly to the
wall using drywall plugs and screws (not provided).
Notice
For maximum efficiency, clean the lint filter after each use.
Warranty
WHAT IS COVERED
All merchandise is warranted to be free from defects in workmanship and material for one year from the date of purchase. This includes normal wear and
performance failure on items. The manufacturer will replace or repair at their option.
WHAT IS NOT COVERED
This warranty only covers normal wear and performance failure. It does not cover any malfunction, performance failure, or defect arising from the misuse,
abuse, neglect, or modification of the product. Any damage or malfunction inflicted upon the product by the user or other external sources, or any failure to
comply with the warnings and instructions, is not covered.
For further assistance call 1-800-305-1726 or visit www.HomeDepot.com.
Use and Care Guide

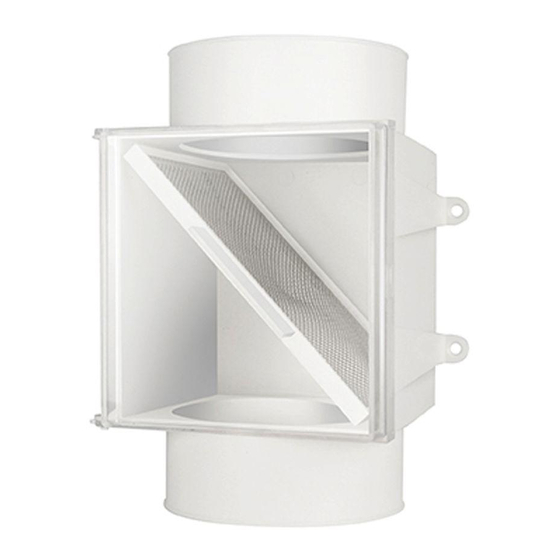

Dryer Duct Lint Trap
HARDWARE REQUIRED (NOT INCLUDED)
Screwdriver or 5/16"
Nutdriver
2
ATTACHING THE DUCT TO THE
TOP OF UNIT
□ Slide the free end of the duct
which leads outside, over the top
collar of the lint trap unit. Secure
it with one of the metal clamps
provided.
5
□ Open the door of the lint trap unit, remove the screen and
Item #
Model # PCLT4WHD
Screws (4)
3
ATTACHING THE DUCT TO THE
BOTTOM OF UNIT
□ Slide the free end of the remaining
duct coming from the dryer, over
the bottom collar of the lint trap
unit. Secure it with the other
clamp.
CLEANING THE LINT SCREEN AFTER EACH USE
clean off the lint.
1001-592-182
