Everbilt TD48PMKHD6 Use And Care Manual

TOOLS REqUIRED
Phillips□screw□driver
Installation
1
ASSEMBLING THE
ALUMINUM PIPE
□ □ Press□the□sides□of□the□aluminum□pipe□
together□and□lock□them□into□place.
4
INSTALLING THE
EXHAUST HOOD
□ □ From□the□outside,□pass□the□pipe□
through□the□hole□opening□until□
the□vent□cap□lies□flush□against□the□
outside□wall□surface.□Secure□the□vent□
cap□to□the□wall□by□screwing□it□into□
place□and/or□caulking□around□the□
reveal.
Safety Information
IMPORTANT:□□Vent□the□exhaust□hood□outdoors□through□a□wall□or□window□opening□as□close□as□possible□to□the□dryer.
Warranty
WHAT IS COVERED
All□merchandise□is□warranted□to□be□free□from□defects□in□workmanship□and□material□for□one□year□from□the□date□of□purchase.□This□includes□normal□wear□and□
performance□failure□on□items.□The□manufacturer□will□replace□or□repair□at□their□option.
WHAT IS NOT COVERED
This□warranty□only□covers□normal□wear□and□performance□failure.□It□does□not□cover□any□malfunction,□performance□failure□or□defect□arising□from□the□misuse,□
abuse,□neglect□or□modification□of□the□product.□Any□damage□or□malfunction□inflicted□upon□the□product□by□the□user□or□other□external□sources,□or□any□failure□to□
comply□with□the□warnings□and□instructions□is□not□covered.
For□further□assistance□visit□www.HomeDepot.com.
Use and Care Guide

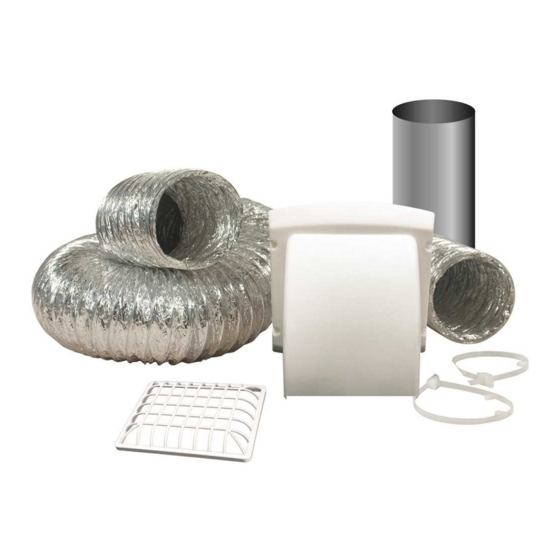

Wide Mouth Dryer Vent Kit
Caulking□gun
2
ATTACHING THE VENT CAP TO
THE PIPE
□ □ Attach□the□vent□cap□to□the□pipe.□
Ensure□the□pipe□fits□snugly□inside□the□
collar.□Align□the□clips□on□the□collar□(A)□
so□they□snap□into□the□pipe□slots□(B).
5
ATTACHING THE DRYER DUCT
TO THE CLOTHES DRYER
□ □ Slide□one□end□of□the□duct□over□the□
exhaust□outlet□of□the□clothes□dryer,□
and□secure□it□with□the□clamp.
HARDWARE REqUIRED (NOT INCLUDED)
Screws□(4)
3
□ □ Cut□a□4□¼□in.□diameter□hole□through□
NOTICE:□Ensure□the□appropriate□tool□is□used□to□
cut□the□hole□in□the□wall□according□to□the□type□of□wall□
material.
A B
6
□ □ With□the□dryer□in□its□permanent□
Item # 610-665
Model # TD48PMKHD6
Latex□caulking
CUTTING A HOLE THROUGH
THE WALL
the□wall,□or□insert□a□window□plate□
with□a□4□¼□in.□diameter□hole.
4 ¼ in
10.8 cm
ATTACHING THE DRYER DUCT
TO THE TAILPIECE
position,□extend□the□duct,□and□
measure□it□to□cover□at□least□2□in.□of□
exhaust□tailpiece.□Cut□off□any□excess□
duct,□and□secure□this□end□with□the□
adjustable□clamp.
HomEDEPoT.Com
