Teledyne Lecroy HDO9000 Assembly Instructions

927745-00 Rev A
November, 2017
© 2017 Teledyne LeCroy, Inc. All rights reserved.
HDO9000 and Teledyne LeCroy are trademarks of Teledyne LeCroy, Inc. Other product or brand names are
trademarks or requested trademarks of their respective holders. Information in this publication supersedes all
earlier versions. Specifications are subject to change without notice.
HDO9000 Rack Mount Accessory
Thank you for purchasing an HDO9000 Rack Mount accessory. Please review these instructions before
installing the rack mount.

Parts

The rack mount kit is shipped with the following parts. Contact us if parts are missing.
Parts
Rack Mount Tray
Faceplate
M4x10 flat-head Phillips screws (for tray)
NOTE: The kit does not include the fasteners needed to attach the rack mount to your equipment rack.
Consult your rack manufacturer regarding the appropriate type, size, and number of fasteners required to
install the rack mount securely.

Tools

You will need a Phillips-head screwdriver and a Torx T10 driver to attach the rack mount to the HDO9000.

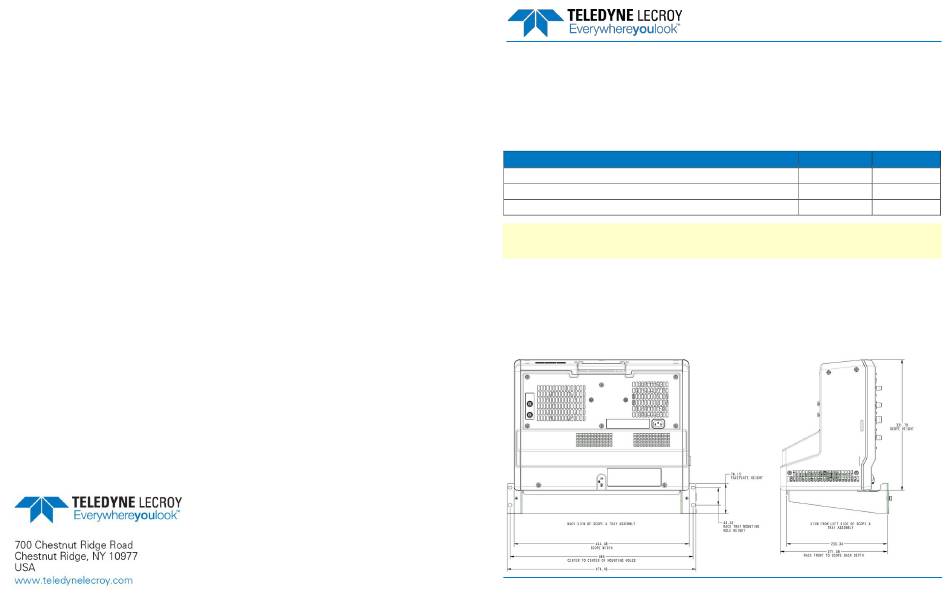

Dimensions

Weight of instrument, uninstalled: 25.5 lbs [11.57 kg]
Weight of rack mount, uninstalled: 4.35 lbs [1.97 kg]
Width, installed: 18.88 in [479.46 mm]
927745-00 Rev A
Assembly Instructions
Part Number QTY
929025-00 1
927332-00 1
550441110
4
Depth, installed: 10.69 in [271.58 mm]
© Teledyne LeCroy, Inc.
