LabMaster 10Zi Rack Mount
Thank you for purchasing a Teledyne LeCroy LabMaster 10Zi Rack Mount accessory. The following procedures explain proper
installation of the rack mount.
Upon receiving your shipment, remove all parts from the packaging. Refer to the Parts Table to ensure that all items have shipped
correctly, and contact us immediately if any parts are missing.
CAUTION. The LabMaster 10Zi system performance depends on adequate airflow into the vents on the bottom cover of
the units. When installing in a rack, do not position the units so as to block the vents. Any equipment or debris in the 1
inch (25.4 mm) space below the units could result in performance degradation and possible shutdown of the system.

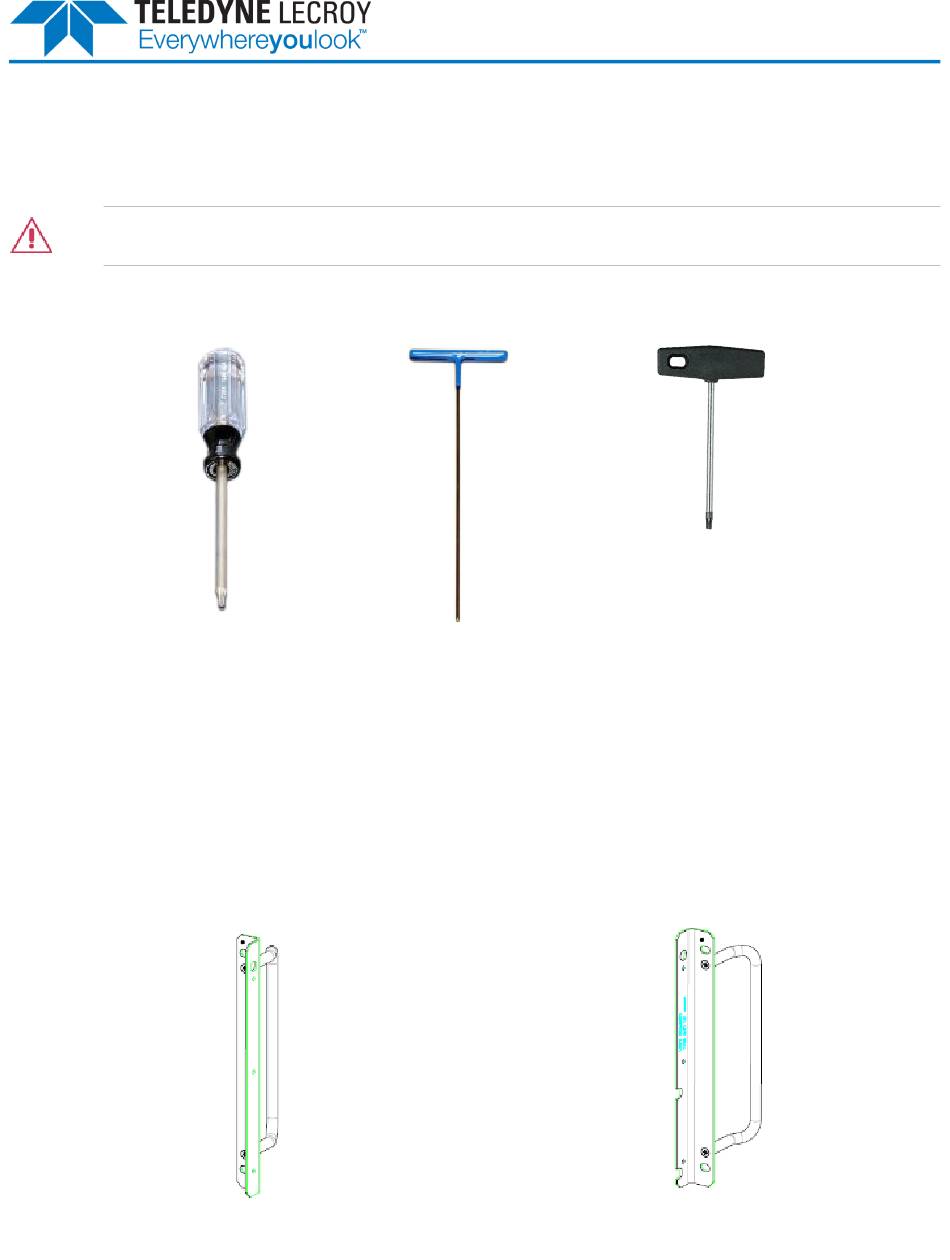

Use the provided tools to complete the assembly.
T10 Torx Driver
Environmental Compliance
Unless otherwise specified, all materials and processes are compliant with RoHS Directive 2011/65/EU in its entirety,
inclusive of any further amendments or modifications of said Directive.
MCMZi Control Module
Pre-Assemble Brackets
Pre-assemble the brackets and handles into a single piece using two 8-32 Undercut Flat Head screws per bracket, as shown below.
Right Bracket with 3/8 Offset Handle
2.5mm T-handled,
9" long Allen Key
Assembly Instructions
T25 T-handled Torx Driver
Left Bracket with 3/8 Offset Handle
1
933203-00 Rev A
Advertisement
Related Manuals for Teledyne Lecroy LabMaster 10Zi
Summary of Contents for Teledyne Lecroy LabMaster 10Zi
- Page 1 CAUTION. The LabMaster 10Zi system performance depends on adequate airflow into the vents on the bottom cover of the units. When installing in a rack, do not position the units so as to block the vents. Any equipment or debris in the 1 inch (25.4 mm) space below the units could result in performance degradation and possible shutdown of the system.
- Page 2 LabMaster 10Zi Rack Mount Remove Covers Prepare the MCMZi for rack mounting by removing the outer plastic covers, handle and metal wrap. "Left" and "right" refer to your left and right when facing the front of the unit. 1. Remove the five M3 X 6 Torx screws on the top of the unit using the T10 Torx driver, and take off the top cover.
- Page 3 Assembly Instructions 5. Remove the four M3 X 10 socket head screws with washers on the metal wrap using the 2.5mm T-handled 9" Allen key. Remove the two M3 X 10 Torx screws from the bottom of the wrap using the T10 Torx driver. 6.
- Page 4 Four fasteners per side is recommended for maximum security. CAUTION. Due to the weight of the MCMZi, transporting the unit while mounted in a rack is not recommended. The instrument should always be removed from the rack and packed for transit in the required Teledyne LeCroy shipping materials.
- Page 5 Assembly Instructions LM10Zi Acquisition Modules Remove Covers Prepare the LM10Zi Acquisition Module for rack mounting by removing the outer plastic covers, handle and metal wrap. "Left" and "right" refer to your left and right when facing the front of the unit. 1.
- Page 6 LabMaster 10Zi Rack Mount Install the LM10Zi-ACQMOD Rack Mount 1. Use the empty screw holes in the two brackets at the left and right front sides of the tray to install it into a rack following manufacturer specifications. Four fasteners per side is required. The center hole in the bracket accommodates an alignment pin on the rack.
- Page 7 Assembly Instructions Rack Mount Part Table These parts are provided with the LabMaster 10Zi Rack Mount kit. Use these part numbers (P/N) when ordering replacement parts. MCMZi Description Teledyne LeCroy P/N 8-32 Undercut Flat Head Screw 42A0000000969 3/8 Offset Handle...
