Sennheiser MobileConnect Station Quick Manual

MobileConnect Station
Quick Guide
Instruções resumidas | Beknopte gebruiksaanwijzing | Krótka instrukcja obsługi | Snabbguide | Kort vejledning |
Pikaohje | Γρήγορος οδηγός | Kısa Kılavuz | Краткая инструкция | 快速指南 | 快速使用指南 | クイックガイド | 요약
설명서|
In the box
MOBILECONNECT STATION
System Setup
For installation and setup of MobileConnect go to:
https://docs.sennheiser-connect.com
Troubleshooting and Reset
 Configure the laptop with the static
IP address 192.168.0.2
 Open your browser and
navigate to:
https://192.168.0.10
 The default password is: Sennheiser
Contact and Support
Online:
www.sennheiser.com/mobileconnect
https://docs.sennheiser-connect.com
Direct contact:
mc-support@sennheiser.com
Software License:
www.sennheiser.com/mobileconnect
| Kurzanleitung | Guide de démarrage rapide | Guida rapida | Instrucciones resumidas |
Operating elements

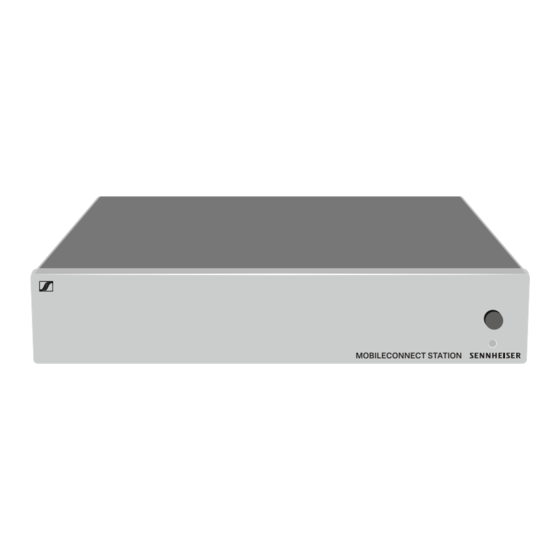

Front
Safety
Quick Guide
Guide
MOBILECONNECT STATION
For further details see:
https://docs.sennheiser-connect.com
Back
1
2
3
https://192.168.0.10/
4
5
Analog IN
Analog OUT
reboot
A
press
the button
B status LED
lights up
green
A
flashes green
B
Out 1 Out 2 In 1 In 2
1 2
2 XLR-3M sockets
Analog audio output
Analog audio input 2 XLR-3F sockets
Digital audio Dante™-interface with two RJ-45 sockets,
input/output Primary und Secondary
Ctrl socket RJ-45 socket
For connection to separated control
network
PoE/Stream socket RJ-45 socket
For connection to streaming network
XLR *
XLR *
XLR *
XLR *
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany, www.sennheiser.com
Printed in Germany, Publ. 02/21, 583971/A02
1. 2.
reboot
< 1 sec ≥ 3 sec
on
error/
warning
Primary Secondary Ctrl PoE / Stream
3 4 5
*not included
*not included
