Summary of Contents for Sennheiser MZD 8000

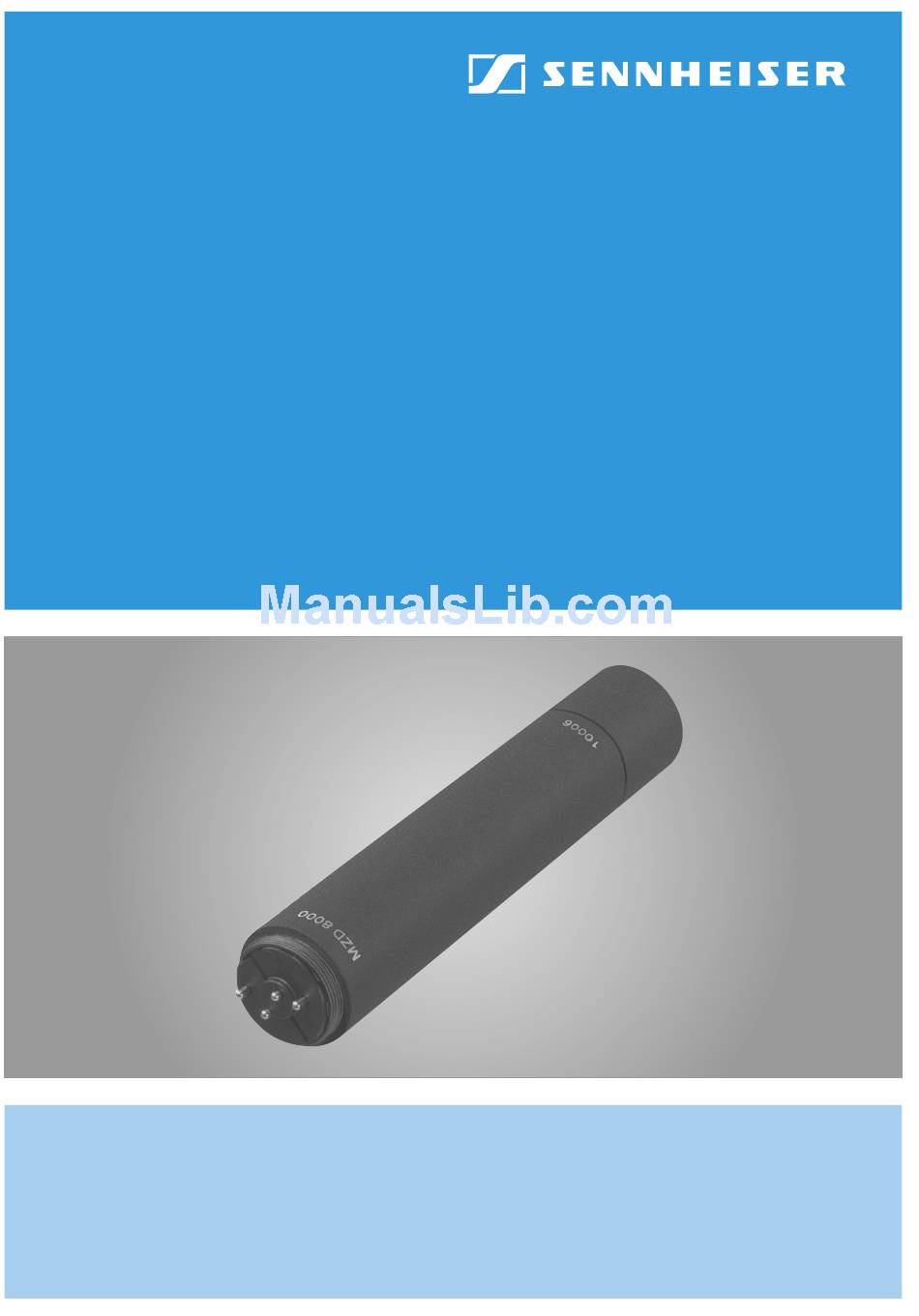

- Page 1 MZD 8000 Digitalmodul MZD 8000 Instruction manual...
-
Page 2: Table Of Contents
Sennheiser a world-leading company in this field. Please take a few moments to read these instructions care- fully, as we want you to enjoy your new Sennheiser products quickly and to the fullest. -
Page 3: Important Safety Information
Use only a slightly damp cloth to clean the device. • Do not expose the device to extreme temperatures. • Use the device with care and store it in a clean, dust-free environment. Intended use of the device Intended use includes: •... -
Page 4: The Mzd 8000
The MZD 8000 The MZD 8000 digital module is an AES 42 A/D converter for all microphone heads of the MKH 8000 series. The MZD 8000 has the following features: • Direct screw-on connection for the microphone heads of the MKH 8000 series •... -
Page 5: Delivery Includes
Delivery includes 1 MZD 8000 digital module 1 instruction manual Product overview Connection for microphone head MZD 8000 digital module XLR-3M socket... -
Page 6: Putting The Digital Module Into Operation
AES 42 standard. Note: During operation, the MZD 8000’s connection for the micro- phone head provides 48 V phantom power. First screw on a microphone head before connecting an XLR cable. To connect the cable: Connect an XLR cable to the XLR-3M socket of the MZD 8000. -
Page 7: Connecting The Digital Module To Other Devices
The MZD 8000 digital module receives and transmits electrical signals according to the AES 42 standard (A). If your mixing console does not support the AES 42 standard: Use a format converter for conversion into other signals (B). For additional information, visit the Internet at www.aes.org. -
Page 8: Remote Controlling The Mzd 8000
To connect the microphone: Use a suitable cable to connect the MZD 8000 to the micro- phone input of a format converter or a mixing console. When connecting the cables, make sure that the connectors are properly locked. Remote controlling the MZD 8000 Via the AES 42 interface, you can make the following settings to the MZD 8000. -
Page 9: If A Problem Occurs
Microphone is Check if the used not connected to input complies with the an AES 42 input. AES 42 standard. Channel is muted. Deactivate “Mute” in the AES 42 remote control. Audio signal Excessive sound Increase the pick-up is distorted... -
Page 10: Cleaning The Mzd 8000
Cleaning the MZD 8000 Use a slightly damp cloth to clean the device from time to time. Note: Do not use any cleansing agents or solvents. -
Page 11: Accessories
MZL 8010: Remote cable, 10 m 502328 MZQ 8000: Microphone clip 502329 MZQ 8001: Mini clip 502330 MZS 8000: Shock mount 502331 MZT 8000: Metal table stand 502332 MZT 8001: Table stand with acrylic base 502435 MZH 8000: Ceiling mount... -
Page 12: Specifications
Current consumption max. 160 mA Phantom power at P 48 microphone input Input amplitude for –0.5 dBFS at 0 dB attenuation 1.1 V (997 Hz sine) Sensitivity (free field) –31 dBFS (94 dBSPL) with MKH 8020 Harmonic distorsion at –1 dBFS <... -
Page 13: Manufacturer Declarations
For the current warranty conditions, please visit our web site at www.sennheiser.com or contact your Sennheiser partner. CE Declaration of Conformity Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC. - Page 14 Sennheiser electronic GmbH & Co. KG Printed in Germany Am Labor 1, 30900 Wedemark, Germany Publ. 04/08 www.sennheiser.com 524157/A01...
