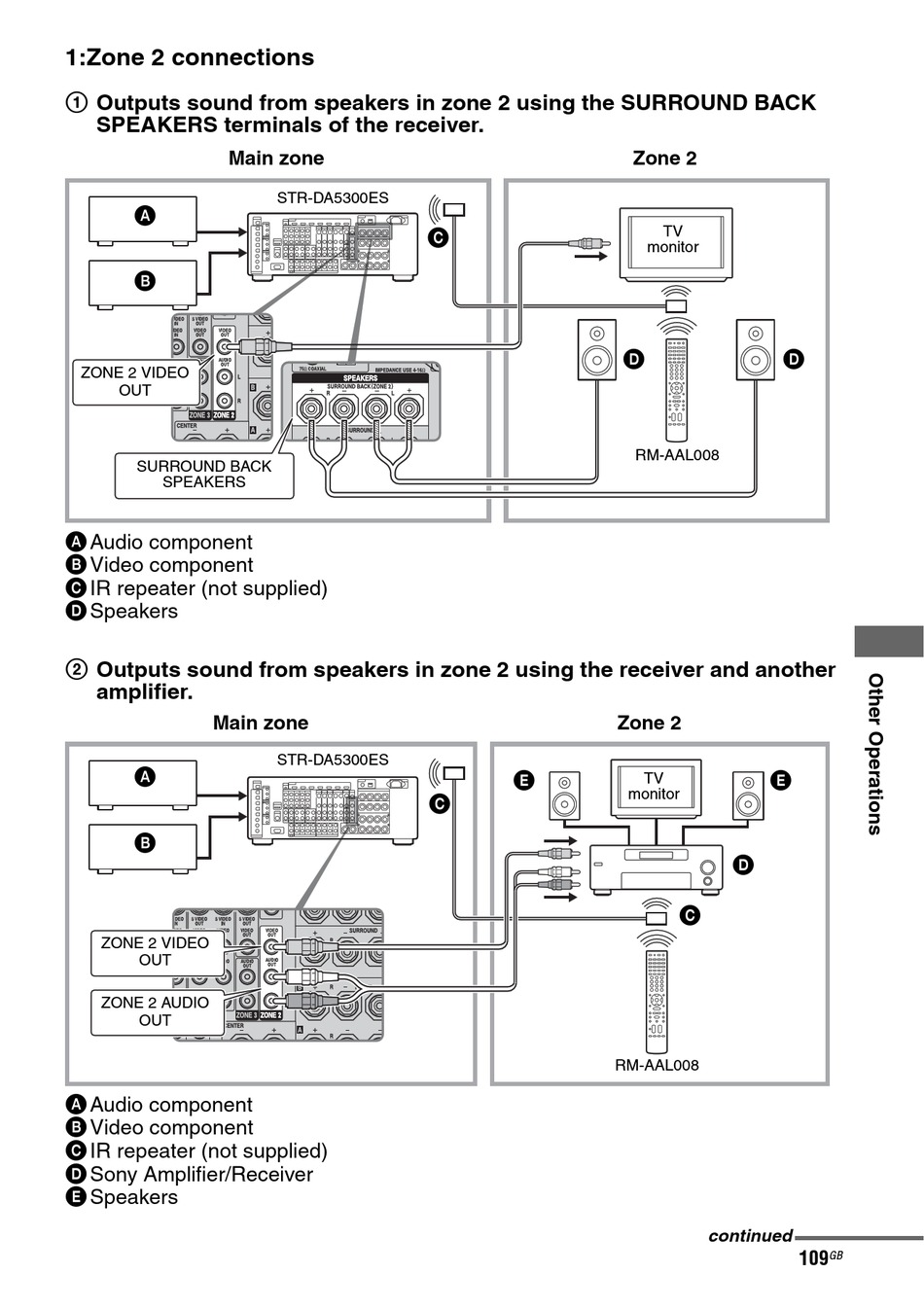

1:Zone 2 connections
1 Outputs sound from speakers in zone 2 using the SURROUND BACK
SPEAKERS terminals of the receiver.
Main zone
A
B
ZONE 2 VIDEO
OUT
SURROUND BACK
SPEAKERS
A Audio component
B Video component
C IR repeater (not supplied)
D Speakers
2 Outputs sound from speakers in zone 2 using the receiver and another
amplifier.
Main zone
A
B
ZONE 2 VIDEO
OUT
ZONE 2 AUDIO
OUT
A Audio component
B Video component
C IR repeater (not supplied)
D Sony Amplifier/Receiver
E Speakers
STR-DA5300ES
C
STR-DA5300ES
C
Zone 2
TV
monitor
D
RM-AAL008
Zone 2
E TV
monitor
C
RM-AAL008
D
E
D
