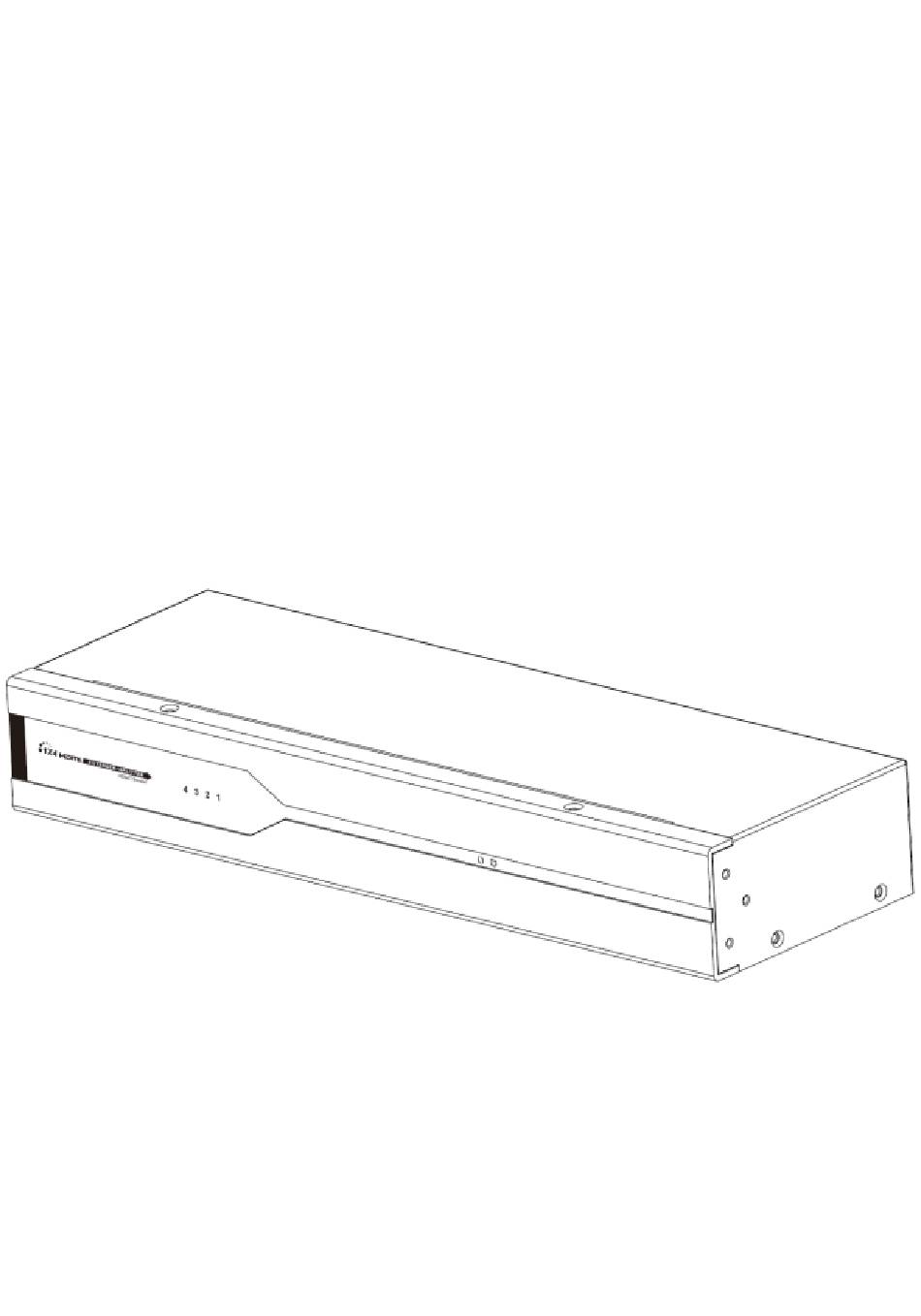

- Page 1 MONOPRICE BitPath AV™ 4K 1X4 HDMI Splitter Extender over Single Cat6 with IR, 120m P/N 16286 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. ... -
Page 3: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-... -
Page 4: Package Contents
PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x Splitter/Extender Transmitter 4x Receivers 5x 5 VDC, 1A AC Power Adapter... -
Page 5: Product Overview
PRODUCT OVERVIEW Transmitter... - Page 6 Receiver 1. Reset: Button for restarting the receiver. 2. HDMI Output: HDMI® connector for connecting the video display. 3. IR In: 3.5mm jack for connecting the IR receiver. 4. DC 5V: DC barrel connector for attaching the included AC power adapter. 5.
- Page 7 INSTALLATION AND OPERATION Perform the following steps to install this splitter/extender. 1. Ensure that all equipment to be connected is powered off and unplugged from its power source. 2. Place the Splitter/Extender Transmitter near your HDMI® video source device. 3. Place a Receiver near your HDMI television. 4.
- Page 8 6. Using a Cat6 Ethernet network cable of the appropriate length (not included), plug one end into the BitPath AV input in the receiver, then plug the other end into one of the BitPath AV outputs on the transmitter. 7. Repeat steps 3-6 for each additional receiver and television. 8.
-
Page 9: Troubleshooting
TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 10: Specifications
SPECIFICATIONS Model 16286 Video Standard HDMI® with HDCP Maximum Video Resolution 4K@30Hz, 1080p@60Hz Maximum Transmission Distance up to 394 feet (120 meters) using Cat6 cable IR Extender Bandwidth 20 ~ 60 kHz Maximum Transmitter Power 10 watts Consumption Maximum Receiver Power... -
Page 11: Regulatory Compliance
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Modifying the equipment without Monoprice’s authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.
