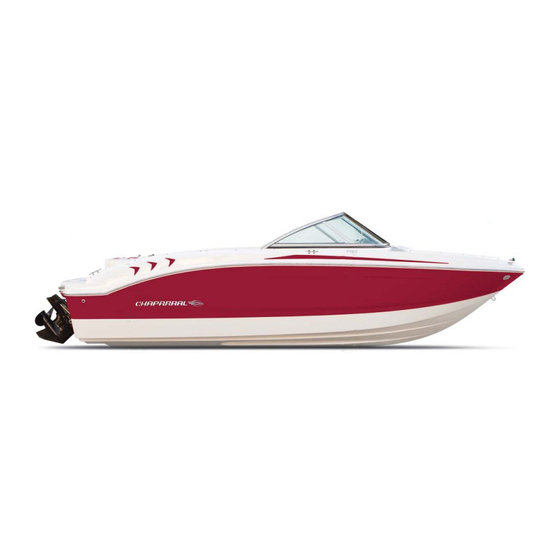

Chaparral 18 H20 Sport Owner's/Operator's Manual

page of 109

/ 109
Bookmarks

Quick Links

H2O SPORT and SKI & FISH

OWNER'S / OPERATOR'S MANUAL

P.O. Drawer 928

300 Industrial Park Blvd.

Nashville, GA 31639

Phone: 229-686-7481 Fax: 229-686-3660

Please keep this manual in a secure place and hand it over to the

new owner when you sell the craft.

Need help?

Do you have a question about the 18 H20 Sport and is the answer not in the manual?

Questions and answers

Summary of Contents for Chaparral 18 H20 Sport

Page 1 H2O SPORT and SKI & FISH OWNER’S / OPERATOR’S MANUAL P.O. Drawer 928 300 Industrial Park Blvd. Nashville, GA 31639 Phone: 229-686-7481 Fax: 229-686-3660 Please keep this manual in a secure place and hand it over to the new owner when you sell the craft.
Page 2 Chaparral H2O Owner’s Manual MODEL INFORMATION Thank you for selecting a Chaparral H2O model! Chaparral Boats, Inc. Nashville, GA chaparralboats.com...
Page 3: Table Of Contents
Chaparral H2O Owner’s Manual TABLE OF CONTENTS HAZARD COMMUNICATION LABELS INTRODUCTION UNDERWAY PREVENTIVE MAINTENANCE AND REPAIR BOATING SAFETY SYSTEMS Table of Contents continued on next page COMPONENTS Chaparral Boats, Inc. Nashville, GA chaparralboats.com...
Page 4 Chaparral H2O Owner’s Manual TROUBLESHOOTING INTERIOR AND EXTERIOR CARE WINTERIZING AND STORAGE NAUTICAL GLOSSARY 10-1 WARRANTY 11-1 WIRING SCHEMATICS 12-1 Chaparral Boats, Inc. Nashville, GA chaparralboats.com...
Page 5: Hazard Communication Labels I
Chaparral H2O Owner’s Manual HAZARD COMMUNICATION LABELS Note: Respective labels are determined by the standard and optional equipment actually installed in your boat upon delivery. WINTERIZATION LABEL LOCATED ON OUTDRIVE Chaparral Boats, Inc. Nashville, GA chaparralboats.com...
Page 6 Chaparral H2O Owner’s Manual WARNING GASOLINE VAPOR MAY EXPLODE Chaparral Boats, Inc. Nashville, GA chaparralboats.com...
Page 7 NOTICE Blower Warning THE FEDERAL WATER POLLUTION CONTROL ACT PROHIBITS THE When towing a boat on a trailer, Chaparral DISCHARGE OF OIL OR OILY WASTE INTO OR UPON THE NAVIGABLE recommends that the tower stays in the WATERS AND CONTIGUOUS ZONE OF THE UNITED STATES IF SUCH...
Page 8 Chaparral H2O Owner’s Manual WARNING PN#: XTM001 WARNING ! WARNING Carbon monoxide (CO) can cause brain damage or death. Engine and generator exhaust contains odorless and colorless carbon monoxide gas. USE CAUTION WITH SKIER IN TOW Signs of carbon monoxide poisoning include nausea, headache, dizziness, drowsiness, AS TOW ROPE MAY BACKLASH INTO and lack of consciousness.
Page 9 Chaparral H2O Owner’s Manual DANGER USING BOARDING LADDER WHILE ENGINE IS RUNNING CAN RESULT IN SEVERE PERSONAL INJURY. TURN OFF ENGINE BEFORE USING LADDER. DANGER WARNING THE OPERATOR OF THIS VESSEL IS RESPONSIBLE FOR THE ACTIONS OF PERSONS IN AND AROUND THIS VESSEL.
Page 10: Introduction
Chaparral H2O Owner’s Manual INTRODUCTION WELCOME ABOARD! Congratulations!... Important: Keep the completed Boat Data Record in a safe place at ABOUT THIS MANUAL home. Do not keep it aboard the boat. 1. Introduction 2. Boating Safety Chaparral Boats, Inc. Nashville, GA...
Page 11 Chaparral H2O Owner’s Manual 9. Winterizing & Storage Note: For your safety, this manual has speciﬁ c safety warnings and comments where appropriate. Be sure to read the entire manual. 3. Systems 10. Nautical Glossary CONSTRUCTION & STANDARDS 4. Components 5.
Page 12 Chaparral H2O Owner’s Manual Heavy Duty Rub Rail Gelcoat Acoustical Foam Resin Acrylic Tops Stain Resistant Fabrics Plywood Superior Plastics vs. Wood Loom Wrap Wiring Flotation Requirements Through Bolted Stainless Steel Cleats Chaparral Boats, Inc. Nashville, GA chaparralboats.com...
Page 13 Chaparral H2O Owner’s Manual Boat Owner Additional Requirements RESPONSIBILITIES Dealer Chaparral Boats, Inc. Nashville, GA chaparralboats.com...
Page 14 Chaparral H2O Owner’s Manual LAWS AND REGULATIONS Disposal of Plastics & Other Garbage Boat Registration Safety Equipment Discharge of Oil Chaparral Boats, Inc. Nashville, GA chaparralboats.com...
Page 15 Chaparral H2O Owner’s Manual WARRANTY POLICY TRANFER OWNER’S LOGS AND RECORDS Boat Data Record Do not keep this form aboard your boat. Travel Plan Log Fuel Usage Chart Chaparral Boats, Inc. Nashville, GA chaparralboats.com...
Page 17 Boat Data Record Purchase Dealership Service Dealership General Drive Unit Notes Fuel System Fresh Water Propeller Engine Battery...
Page 18 Chaparral H2O Owner’s Manual FUEL USAGE CHART Distance Distance RunTime Fuel Used RunTime Fuel Used Average Miles Gallons Average Miles Gallons Traveled Traveled Date Date (In Hours) (In Gallons) per Hour per Hour (In Hours) (In Gallons) per Hour per Hour...
Page 19 Chaparral H2O Owner’s Manual TRAVEL PLAN LOG ALWAYS FILL THIS SHEET OUT COMPLETELY—IN AN EMERGENCY ALL INFORMATION MAY BE HELPFUL Chaparral Boats, Inc. 1-10 Nashville, GA chaparralboats.com...
Page 20: Boating Safety
Chaparral H2O Owner’s Manual BOATING SAFETY HAZARD COMMUNICATION WARNING CAUTION Note: This is a general advisory statement relating to equipment operation and maintenance procedures. Its intent is to call attention to information more important than normal text. SAFETY RECOMMENDATIONS DANGER Chaparral Boats, Inc.
Page 21 Chaparral H2O Owner’s Manual Safe Operation Swimming Safe Boating Courses Chaparral Boats, Inc. Nashville, GA chaparralboats.com...
Page 22 Chaparral H2O Owner’s Manual Voluntary Inspections Important: Never send a “MAYDAY” message unless there is a seri- ous emergency and you are in need of immediate assistance. Warning Markers Rules of the Road Drugs and Alcohol Chaparral Boats, Inc. Nashville, GA...
Page 23 SAFETY EQUIPMENT Important: Federal law requires you to provide and maintain safety equipment on your Chaparral boat. As the boat owner, you are re- sponsible for supplying all required safety equipment. Consult your Coast Guard, state, and local regulations to ensure your boat has all required safety equipment on board.
Page 24 Chaparral H2O Owner’s Manual SAFETY AFLOAT Weather Sound Signaling Device RUNNING AND NAVIGATION LIGHTS Chaparral Boats, Inc. Nashville, GA chaparralboats.com...
Page 25 Chaparral H2O Owner’s Manual Man Overboard Storms Fire Important: A ﬁ re aboard your boat is a serious emergency. You must act immediately! Important: Everyone on board should know where ﬁ re extinguish- ers are and how to operate them.
Page 26 Chaparral H2O Owner’s Manual Flooding, Swamping or Capsized Boat Guidelines for Fire Prevention WARNING Chaparral Boats, Inc. Nashville, GA chaparralboats.com...
Page 27 Chaparral H2O Owner’s Manual Hypothermia Running Aground WARNING Carbon Monoxide Hazard During Operation Collision DANGER Carbon monoxide (CO) can cause brain damage or death. Engine and generator exhaust contains odorless and colorless carbon monoxide gas. Carbon monoxide will be around the back of the boat when engines or generators are running.
Page 28 Chaparral H2O Owner’s Manual WARNING Carbon monoxide (CO) can cause brain damage or death. DANGER Carbon monoxide can be present in the cabin. Signs of carbon monoxide poisoning include nausea, headache, dizziness, drowsiness, and lack of consciousness. Get fresh air if anyone shows signs of carbon monoxide poisoning.
Page 29 Chaparral H2O Owner’s Manual CHECKLISTS Each Trip DANGER Figure 2.3 Exhaust Accumulation While Canvas is in Place Note: Do not operate the vessel if any of these problems exist. At Least Annually Figure 2.4 Desired Ventilation Through the Boat Chaparral Boats, Inc.
Page 30 Chaparral H2O Owner’s Manual Fuel System What to do Important: Do not operate your boat until the source of a fuel leak is identiﬁ ed. Have a qualiﬁ ed service technician correct the condition. NEVER USE A MATCH TO INSPECT FOR LEAKS.
Page 31 Chaparral H2O Owner’s Manual Important: Remember that three people — not two — are required for safe water skiing: the boat operator, the skier, and an observer on the boat facing the skier. The observer relays signals from the skier to the operator. The operator can therefore give full attention to the operation of the boat and the waters ahead.
Page 32 Chaparral H2O Owner’s Manual Additional Equipment 1. Thumb Up: Speed up the boat. 2. Thumb Down: Slow down the boat. 3. Cut Motor/Stop: Immediately stop boat. Slashing motion over neck (also used by dri- ver or observer). 4. Turn: Turn the boat (also used by driver).
Page 33 Chaparral H2O Owner’s Manual LATERAL AIDS AS SEEN ENTERING FROM SEAWARD REMEMBER THESE RULES 1. OVERTAKING - PASSING: Boat being passed has the right-of-way. KEEP CLEAR. 2. MEETING HEAD ON: Keep to the right. 3. CROSSING: Boat on right has the right-of-way. Slow down and permit boat to pass.
Page 34: Systems
Chaparral H2O Owner’s Manual SYSTEMS Note: A breaker has been provided with additinoal accessory hook- ups. Consult your Chaparral dealer for additional DC power needs on your boat. NOTE: For location of items listed in this chapter, refer to the respec- tive drawing.
Page 35 Chaparral H2O Owner’s Manual FUEL SYSTEM WARNING Battery Selector Switch AVOID SERIOUS INJURY OR DEATH FROM FIRE OR EXPLOSION RESULTING FROM LEAKING FUEL. INSPECT SYSTEMS FOR LEAKS PRIOR TO USAGE OF BOAT On/Off Switch with One Battery Note: If engine is off and you are using boat accessories, you need to start your engine occasionally to allow engine alternator to fully recharge battery.
Page 36 Chaparral H2O Owner’s Manual Typical Engine Compartment Layout 1 - BILGE PUMP 2 - ENGINE (MERCURY) 3 - BLOWER 4 - TRIM PUMP (MERCURY) 5 - BATTERY 6 - FIRE PORT 7 - FUEL TANK 8 - BATTERY SWITCH 9 - FIRE EXTINGUISHER...
Page 37 Chaparral H2O Owner’s Manual Typical Engine Compartment Layout 1 - BILGE PUMP 2 - ENGINE (MERCURY) 3 - BLOWER 4 - TRIM PUMP (MERCURY) 5 - BATTERY 6 - FIRE PORT 7 - FUEL TANK 8 - BATTERY SWITCH 9 - FIRE EXTINGUISHER...
Page 38: Components
Chaparral H2O Owner’s Manual COMPONENTS Analog Tachometer Fuel Gauge Important: Adhere to all safety precautions in the manufacturer’s literature when operating the components. Speedometer WARNING 4-in-1 Multifunction Gauge DASHBOARD AND INSTRUMENT PANEL oil pressure gauge WARNING voltmeter Chaparral Boats, Inc.
Page 39 Chaparral H2O Owner’s Manual water temperature gauge Note: Your boat has a mechanical steering system. Refer to the steering manufacturer’s owner’s manual found in your Owner’s Packet, for detailed information regarding use, care and mainte- nance of the steering system.
Page 40 Chaparral H2O Owner’s Manual FIRE EXTINGUISHERS Note: See the manufacturer’s owner’s manual for detailed informa- tion about safety precautions and procedures for operating and maintaining the ﬁ re extinguishing system. The manual is in your owner’s packet. WARNING IN CASE OF FIRE DO NOT OPEN ENGINE BOX OR COMPARTMENT.
Page 41 Chaparral H2O Owner’s Manual Note: The Federal Water Pollution Act prohibits the discharge of oil or oily waste into or upon the navigable waters and contigu- ous zones of the United States if such discharge causes a ﬁ lm or...
Page 42 Check to be certain all bolts are in place and that they are NOTICE tight before using the tower. When towing a boat on a trailer, Chaparral recommends that the tower stays in the Failure to adhere to these guidelines may cause personal upright installed position to avoid injury or death.
Page 43: Underway
Chaparral H2O Owner’s Manual UNDERWAY TRANSPORTING YOUR BOAT Important: Improper trailering is one of the major causes for dam- WARNING age to the hull. The warranty does not cover damage of this type. OPEN DOORS MAY CAUSE NOTE: Ensure all snap-in carpet has been rolled up and secured DAMAGE TO BOAT, AND/OR prior to moving to prevent carpet damage.
Page 44 RATINGS VARY BY STATE AS WELL AS REQUIREMENTS FOR BRAKES. CHECK YOUR STATE REGULATIONS TO DETERMINE THE BRAKE REQUIREMENTS FOR YOUR BOAT, MOTOR AND TRAILER PACKAGE. CHAPARRAL ASSUMES NO LIABILITY FOR THE TRAILER RE- QUIREMENTS SPECIFIC TO YOUR STATE. Chaparral Boats, Inc. Nashville, GA...
Page 45 “trailerable,” but, in most cases you need a permit to do so. Check with your state on permit requirements before towing. Roller Trailers – Launching and Loading Chaparral recommends you follow the trailer manufacturer’s guide- lines for launching and loading your boat. WARNING Bunk or Custom Trailers—Launching...
Page 46 Chaparral H2O Owner’s Manual BOARDING YOUR BOAT Common Cause of Boat Misalignment Correction Procedures DANGER Rotating propellers can injure or kill you. Shut off engine when persons are on swim platform or on swim platform seat. Important: The presence of the capacity plate does not relieve the boat operator from the responsibility of using common sense or sound judgement.
Page 47 Chaparral H2O Owner’s Manual Do not Do not Note: The swim platform is designed for weight loads up to 300 pounds on the H2O Series. Exceeding weight limit could cause damage to your boat or personal injury. The swim platform is not Do not designed to carry personal watercraft.
Page 48 Chaparral H2O Owner’s Manual Important: When fueling or having someone else fuel your boat, be sure the waste or water ﬁ ll caps are not mistaken for the fuel ﬁ ll cap. Also, make sure a ﬁ shing rod holder is not mistaken for a fuel ﬁ ll plate.
Page 49 Chaparral H2O Owner’s Manual OPERATING YOUR BOAT DANGER DANGER: Carbon Monoxide Hazard! Starting the Engine Important: Falls from moving boats are a major cause of fatal rec- reational boating accidents. Do not allow passengers to ride on the Note: Transmission must be in neutral position before engine will bow with feet hanging over the side or ride while sitting on the stern, turn over.
Page 50 Chaparral H2O Owner’s Manual ACCELERATE BOW RISES PLANING ATTITUDE Figure 5.2 Boat Acceleration and Attitude Getting Up To Cruising Speed CAUTION: When shifting between forward and reverse, always CAUTION pause in neutral for a few seconds before reversing the rotation of the propeller.
Page 51 Chaparral H2O Owner’s Manual Trimming Your Boat CORRECT Gives maximum performance Power Trim INCORRECT Causes boat to "plow" Note: Refer to your engine owner’s manual regarding the operation of the power trim controls installed on your boat. Drive Angle INCORRECT Causes boat to "porpoise"...
Page 52 Chaparral H2O Owner’s Manual WARNING WARNING Stopping Your Boat ANCHORING YOUR BOAT Additional Underway Information Chaparral Boats, Inc. 5-10 Nashville, GA chaparralboats.com...
Page 53 Chaparral H2O Owner’s Manual Weighing Anchor Docking Your Boat Important: When operating or docking in close quarters, maneuver Dropping Anchor your boat at idle speed. Proceed with caution in congested areas. WARNING Chaparral Boats, Inc. 5-11 Nashville, GA chaparralboats.com...
Page 54 Chaparral H2O Owner’s Manual MOORING YOUR BOAT Figure 5.6 Mooring Lines Note SHUTTING DOWN THE ENGINE Chaparral Boats, Inc. 5-12 Nashville, GA chaparralboats.com...
Page 55: Preventive Maintenance And Repair
Note: During the engine 20-hour break-in period, Chaparral recom- mends that you check the oil level every two hours. Note: Chaparral Boats recommends that you use a funnel when you add oil to prevent spillage and to help keep your engine free of sur- face grime and dirt.
Page 56 Note: Refer to your engine owner’s manual for detailed information about checking and maintaining the fuel system. WARNING MONTHLY INSPECTION Note: A trained marine mechanic should replace parts or repair the fuel system. See your Chaparral dealer for parts and repair. TUNE-UP CAUTION FUEL SYSTEM Engine Alignment Check Chaparral Boats, Inc.
Page 57 Note: Operating boat in saltwater is classiﬁ ed as excessive use. Important: Never use any ﬂ ammable solvents for cleaning the bilge. Check with your Chaparral dealer for recommended cleaners. WARNING Note: If engine is cold, the correct ﬂ uid level should be at the ADD Chaparral Boats, Inc.
Page 58 Chaparral H2O Owner’s Manual TROUBLESHOOTING CAUTION PROBLEM CAUSE SOLUTION Chaparral Boats, Inc. Nashville, GA chaparralboats.com...
Page 59 Chaparral H2O Owner’s Manual PROBLEM CAUSE SOLUTION Chaparral Boats, Inc. Nashville, GA chaparralboats.com...
Page 60 Chaparral H2O Owner’s Manual PROBLEM CAUSE SOLUTION Chaparral Boats, Inc. Nashville, GA chaparralboats.com...
Page 61 Chaparral H2O Owner’s Manual PROBLEM CAUSE SOLUTION Chaparral Boats, Inc. Nashville, GA chaparralboats.com...
Page 62 Chaparral H2O Owner’s Manual PROBLEM CAUSE SOLUTION WARNING Chaparral Boats, Inc. Nashville, GA chaparralboats.com...
Page 63 Chaparral H2O Owner’s Manual PROBLEM CAUSE SOLUTION Chaparral Boats, Inc. Nashville, GA chaparralboats.com...
Page 64 Chaparral H2O Owner’s Manual INTERIOR AND EXTERIOR CARE Note: Before you use a particular cleaning solution or method, test the material to be cleaned in a hidden or inconspicuous area for possible adverse reactions. Use cleaning agents sparingly. Never discharge cleaning solutions into the waterways. Do not use prod- ucts containing phosphates, chlorine, solvents, or nonbiodegrad- able or petroleum based products.
Page 65 Chaparral H2O Owner’s Manual HULL BOTTOM MAINTENANCE WINDSHIELD AND PORTHOLES Important: Solvents can penetrate glass or porthole surfaces and cause hazing. Hazing obstructs visibility. Never use acetone, ben- zine, carbon tetrachloride, lacquer thinner, or similar solvents to clean glass or portholes.
Page 66 Chaparral H2O Owner’s Manual SEAT COVERINGS AND VINYL Care Note: Follow the manufacturer’s recommendations for cleaning and seat covering and removing stains. These recommendations include the proper cleaning methods and cleaning agents. Care Cleaning Cleaning CANVAS (WEATHER COVERINGS) Chaparral Boats, Inc.
Page 67 Chaparral H2O Owner’s Manual WINTERIZING AND STORAGE Cradle LIFTING THE BOAT WARNING DRY STORAGE PREPARATION Note: Refer to Chapter 8, Interior and Exterior Care, for speciﬁ c cleaning solutions and procedures. Deck Hull Chaparral Boats, Inc. Nashville, GA chaparralboats.com...
Page 68 Chaparral H2O Owner’s Manual STERN DRIVE FUEL SYSTEM General Housekeeping BATTERY ENGINE Important: In regions where temperatures fall below freezing, win- terizing your engine is necessary. Failure to do so will seriously damage the engine. Refer to your engine owner ’s manual for de- WARNING tailed winterization information.
Page 69 Chaparral H2O Owner’s Manual RECOMMISIONING NOTE: For detailed information on recommissioning your boat’s systems and equipment, refer to the owner’s manual for each sys- tem or component. Important: Inspection of the fuel system at recommissioning is very important. We cannot overemphasize our concern for your safety.
Page 70 Chaparral H2O Owner’s Manual NAUTICAL GLOSSARY Abaft Abeam Aboard ABYC Adrift Aﬂ oat Aground Amidships Anchor Anchorage Astern Athwart Chaparral Boats, Inc. 10-1 Nashville, GA chaparralboats.com...
Page 71 Chaparral H2O Owner’s Manual Chine Cleat Breakers Clinker Breakwater Bulkhead Coaming Burdened Vessel Coast Guard Caulking Cockpit Camber Companionway Capsize Compass Cowls Carburetor Backﬁ re Flame Arrestor Cradle Cardinal Points Current Deadrise Ceiling Certiﬁ cate Deck Deep-six Chart Chaparral Boats, Inc.
Page 72 Chaparral H2O Owner’s Manual Depth Sounder Fathom Fenders Dinghy Flare Displacement Hull Fore Dock Forward Frame Documented Vessel Freeboard Dolphin Galley Draft Gimbals Give-Way Vessel Dunnage Grab Rail Gunwale Estuary Chaparral Boats, Inc. 10-3 Nashville, GA chaparralboats.com...
Page 73 Chaparral H2O Owner’s Manual Hatch Launch Head Headway Leeward Helm Holding Tank Leeway Hull List Hypothermia Inboard Inland Rules Locker Intracoastal Waterways Lubber’s Line Jetty Making Way Keel Marina Knot Chaparral Boats, Inc. 10-4 Nashville, GA chaparralboats.com...
Page 74 Chaparral H2O Owner’s Manual MAYDAY Overall Length Painter Mooring Motor Pier Motorboat Pile Navigation Piling Nautical Mile Pitch Nun Buoy Planing Hull Port Outboard Privileged Vessel Propeller Outdrive Rigging Chaparral Boats, Inc. 10-5 Nashville, GA chaparralboats.com...
Page 75 Chaparral H2O Owner’s Manual Roll Stern Rules of the Road Stow Strake Scope Taffrail Scupper Tide Sea Anchor Topsides Transom Seacock Trim Slip Trimaran Sole Unbend Spar Buoy Underway Stand-On Vessel USPS Starboard Chaparral Boats, Inc. 10-6 Nashville, GA chaparralboats.com...
Page 76 Chaparral H2O Owner’s Manual Vessel Windward VHF Radio Wake Wash Waterline Well Wharf Wheel Whistle Signal Chaparral Boats, Inc. 10-7 Nashville, GA chaparralboats.com...
Page 77 Chaparral H2O Owner’s Manual WARRANTY Chaparral Boats, Inc. 11-1 Nashville, GA chaparralboats.com...
Page 78 Subject to the conditions, exclusions and limitations set forth below, Chaparral warrants to only the Original Purchaser of a new Chaparral boat that, at Chaparral’s option, either Chaparral or its authorized dealer will repair the fiberglass hull manufactured by Chaparral if it is found to be Structurally Defective in material or workmanship for as long as the original purchaser owns the boat.
Page 79 Chaparral if it is found to be Structurally Defective within five (5) years after the date of delivery to the original retail purchaser. Chaparral’s obligation to repair a hull is limited to the fair market value of the owner’s boat.
Page 80 Subject to the conditions, exclusions and limitations discussed below, Chaparral warrants to only the Original Purchaser of a new boat that for a period of three (3) years from the date of delivery, Chaparral will repair or replace any cockpit upholstery or canvas found to be structurally defective in material or workmanship.
Page 81 DEALER RESPONSIBILITIES VS. FACTORY WARRANTY COVERAGE Chaparral Dealers are responsible for keeping inventory in new condition at all times prior to sale of the boat. Any damage that occurs to a boat in a dealer’s inventory from weathering, theft, vandalism or failure to adequately protect the boat from environmental conditions will not be covered under any Chaparral factory warranty.
Page 82 WARRANTIES ARE EXCLUDED. Warranty Transfer fees are waived for dealer demonstrator boats. LIMITATION OF REMEDIES Chaparral’s obligation under this warranty is limited to the cost of repair of the warranted item or replacement thereof, at Chaparral’s sole option, when returned prepaid to Chaparral or other point of repair authorized by Chaparral.
Page 83 13) Any defect or repair requiring redesign of the Boat, except pursuant to the recall provision of the United States Federal Boat Safety Act of 1971 or the recall laws of any other foreign jurisdiction. 14) Any Chaparral boat acquired by a retail sales outlet from any sources other than the Chaparral factory.
Page 84 Warranty repairs, unless otherwise authorized by Chaparral Boats, should be performed by the selling Chaparral dealer. In the event a boat is out of the Owner’s possession for more than 15 days for warranty repair, the Owner must notify Chaparral. The Owner must also notify Chaparral for any claimed defect that is not corrected after one repair attempt.
Page 85 Chaparral will discharge its obligations under this warranty as rapidly as possible, but cannot guarantee any specified completion date due to the different nature of claims that may be made and services that may be required. Chaparral Boats is the registered trademark of Chaparral Boats, Inc.
Page 86 Signature To register the transfer, the second purchaser must mail the following to Chaparral Warranty Transfer, P. O. Drawer 928, Nashville, GA 31639 no later than thirty (30) days after the purchase from the original purchaser: (1) An Ownership Transfer Record completed by the original purchaser and the subsequent owner;...
Page 87 Chaparral H2O Owner’s Manual WIRING SCHEMATICS Chaparral Boats, Inc. 12-1 Nashville, GA chaparralboats.com...
Page 88 Chaparral H2O Owner’s Manual H2O INST PNL PIGTAIL Chaparral Boats, Inc. 12-2 Nashville, GA chaparralboats.com...
Page 89 Chaparral H2O Owner’s Manual H20 INST PNL PIGTAIL Chaparral Boats, Inc. 12-3 Nashville, GA chaparralboats.com...
Page 90 Chaparral H2O Owner’s Manual H2O DECK DISTRIBUTION HARNESS Chaparral Boats, Inc. 12-4 Nashville, GA chaparralboats.com...
Page 91 Chaparral H2O Owner’s Manual H2O DECK DISTRIBUTION HARNESS Chaparral Boats, Inc. 12-5 Nashville, GA chaparralboats.com...
Page 92 Chaparral H2O Owner’s Manual H2O OPTIONAL DISTRIBUTION HARNESS Chaparral Boats, Inc. 12-6 Nashville, GA chaparralboats.com...
Page 93 Chaparral H2O Owner’s Manual H2O OPTIONAL AERATOR DECK HARNESS Chaparral Boats, Inc. 12-7 Nashville, GA chaparralboats.com...
Page 94 Chaparral H2O Owner’s Manual H2O OPTIONAL AERATOR HULL HARNESS Chaparral Boats, Inc. 12-8 Nashville, GA chaparralboats.com...
Page 95 Chaparral H2O Owner’s Manual H2O MERCURY ENGINE HARNESS ANALOG Chaparral Boats, Inc. 12-9 Nashville, GA chaparralboats.com...
Page 96 Chaparral H2O Owner’s Manual H2O TROLLING MOTOR PLUG WIRING H2O TROLLING MOTOR PLUG WIRING 12 9 Chaparral Boats, Inc. 12-10 Nashville, GA chaparralboats.com...
