POE304 - Quick Start Guide
A PoE switch is a network switch which
has power over Ethernet built-in.
The PoE switch will detect whether the
load device is PoE compatible and
provide PoE power automatically and
network connection.
The units add extra flexibility to a network
infrastructure thanks to 100 metre run
capabilities both in and out of them.
The Switches have different uses and setup options. Including providing power to PoE Cameras, and
providing network access to devices like computers.
Setup Options
Option 1
To power IP Cameras using the PoE switch
then connect the IP Cameras using
CAT5e/CAT6 Ethernet Cable, for longer
distances we recommend using high
quality cable, with solid copper cores.
Option 2
Provide network infrastructure to PoE and non-
PoE Devices, like computers, and other Network
devices..
Quick Start Guide - qPOE304
1
www.systemq.com/PDF
/manual/xPOE304.pdf
User Information
·
The PoE Switch must be installed in a clean, dry
environment where it will not be exposed to high
temperatures, moisture or excessive dust.
·
Do not touch the PoE Switch or any of its connections
with wet hands.
·
Ensure the power is switched off if the PoE Switch is not
in use for a long period of time.
·
There are no user serviceable parts in the PoE Switch
and opening or attempting to repair the product will
void the warranty.
·
Only use the PSU originally supplied with the product.
·
Do not install or use the device if the power cable is
damaged.

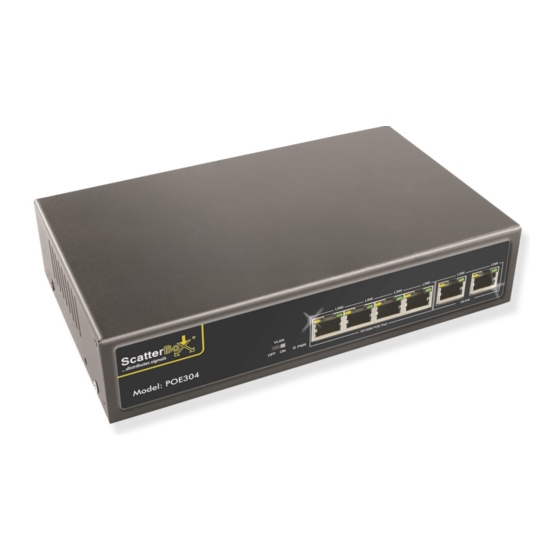

6 Port 100Mbps PoE Switch
