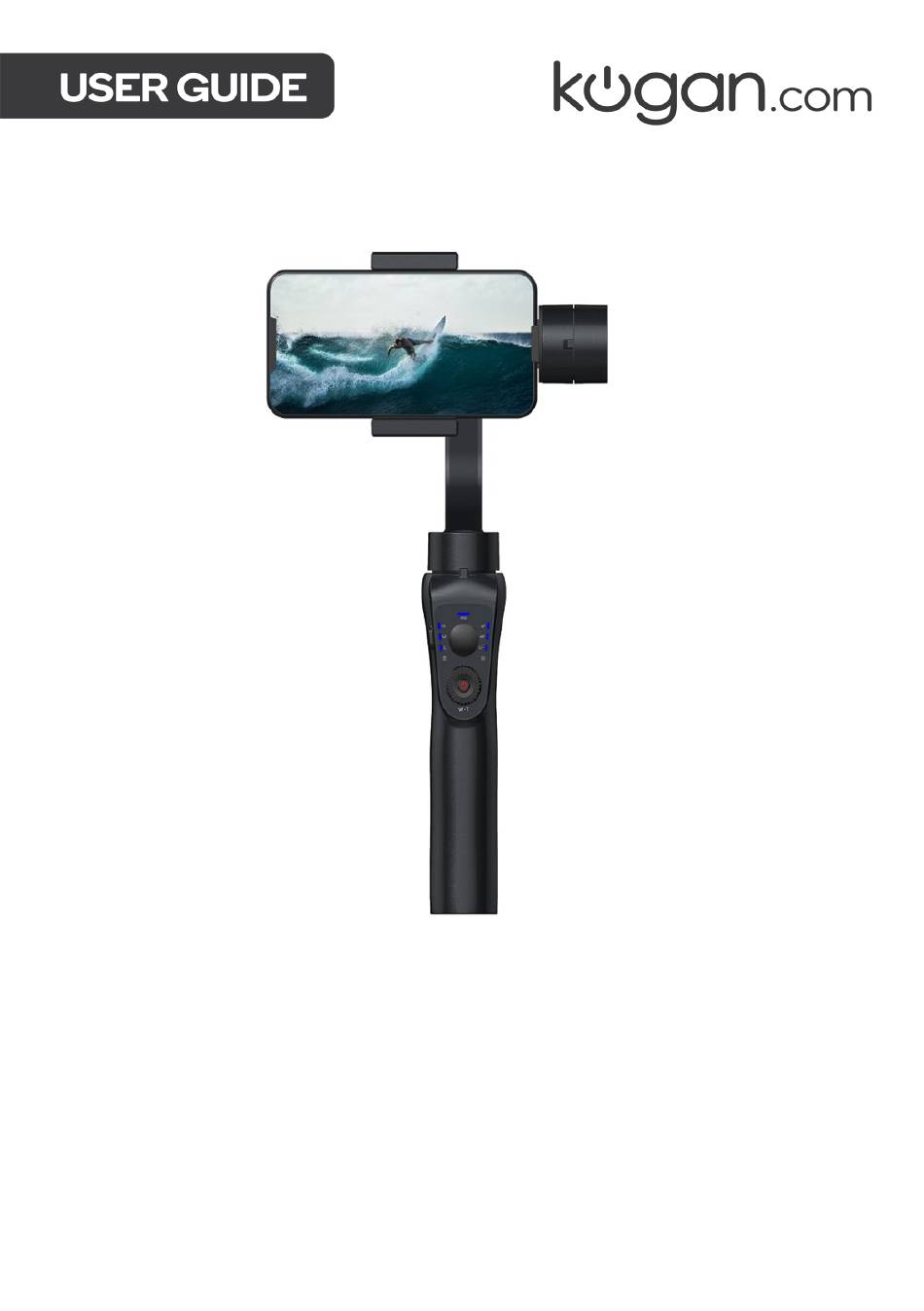

- Page 1 3-AXIS HANDHELD GIMBAL STABILISER KA3AGIMBALA...
-
Page 3: Safety And Warnings
• Do not use with incompatible components or in any way otherwise as mentioned or instructed in the product documents provided by Kogan.com. • The stabiliser should be used in temperatures from 0°C to 40°C. Use of the battery in environments above 40°C can lead to a fire or explosion. - Page 4 • Always use the supplied charger and observe manufacturer charging requirements. • Battery performance is best when within normal room temperature (5°C-20°C). • Batteries need to be charged before use. • Do not leave the gimbal near heat sources such as a furnace, heater, or the inside of a vehicle on hot days.
- Page 5 OVERVIEW Smartphone holder Pan motor Bluetooth indicator >66% Battery Pan and Tilt mode >33% Battery Pan Follow <33% Battery Lock mode Power/mode Joystick Zoom control...
- Page 6 Holder adjustment Roll motor Balance screw Adjustable arm Pitch motor USB power out Micro USB port Shutter 1/4" thread screw...
- Page 7 INSTRUCTION Mounting a smartphone Place the smartphone into mounting clip as shown. Slide the smartphone to the right until it touches the tilt motor. Adjust balance If the smartphone does not stay levelled when mounted: Loosen the roll balance knob. Make small adjustments by sliding the horizontal arm until the phone balances.
- Page 8 Change orientation Switching from horizontal to vertical: • Keep the phone facing yourself and rotate the stabiliser handle over 70 degrees in a clockwise or counter-clockwise direction; stabiliser will enter vertical shooting mode. Switching the mount direction: Loosen the smartphone clamp thumbscrew and rotate the clamp to the vertical position.
- Page 9 CONNECTIVITY Charging during use Connect the Micro USB Port on the side of stabiliser’s handle to a power source, such as a power pack (not included), to extend run-times. Mobile charging The USB port at the bottom of the stabiliser handle can be used for the charging of your smartphone while use.
- Page 10 Downloading the app Scan the QR Code below (Android & iOS) to download the “Gimbal Pro” app. Gimbal Pro Find the "Gimbal Pro" app on the Google Play or Apple App Store. Bluetooth Connection Using the smartphone's camera Power on the stabiliser Turn on Bluetooth in your smartphone setting.
- Page 11 App overview Photo & video switch Gimbal battery Panorama & time-lapse Phone battery Shutter & shooting Flash Toggle camera Home Gallery Camera modes Bluetooth Mode select Face/object tracking Settings Mode status...
-
Page 12: Operation
OPERATION Power On Press and hold the power/mode button for 3-4 seconds until the Mode Indicator light flashes blue and all indicators then illuminate in blue. Power Off Press and hold the power/mode button for 3-4 seconds until the Mode Indicator light dims. Power/mode Shutter button Press once to take a picture. - Page 13 Switching stabiliser modes The stabiliser enters Pan & Tilt Following Mode by default when powered on. Press the power button once when the unit is on to enter Pan Following Mode. Press the power button again while in Pan Following Mode to enter Locking Mode. Note: The Joystick Function can be used in all 3 modes.
- Page 14 Pan & Tilt Following Mode (default): The Roll axis is locked. The camera pan and tilt will rotate smoothly following the movement of the camera. Pan Following Mode: The Tilt and Roll axes are locked. The pan axis rotates smoothly with a turn of the wrist.
-
Page 15: Specifications
SPECIFICATIONS Min. Standard Max. Input voltage 3.4V 3.7V 4.2V Operating current 150mAh 1500mAh 3000mAh Operating temperature 0˚C 40˚C Operation time 10-12 hours Weight 455g Pitch angle range 330˚ Roll angle range 160˚ Pan angle range 330˚ Compatible devices Smartphones under 6.0” and GoPro 3/4/5/6 Controllable pitch angle -155˚... - Page 16 IN THE BOX The product should be packed with the following items (including this user guide); if you are missing any items or components, contact Kogan.com immediately. 1 x Gimbal stabiliser 1 x Micro USB cable 1 x User Guide...
- Page 17 NOTES...
- Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
