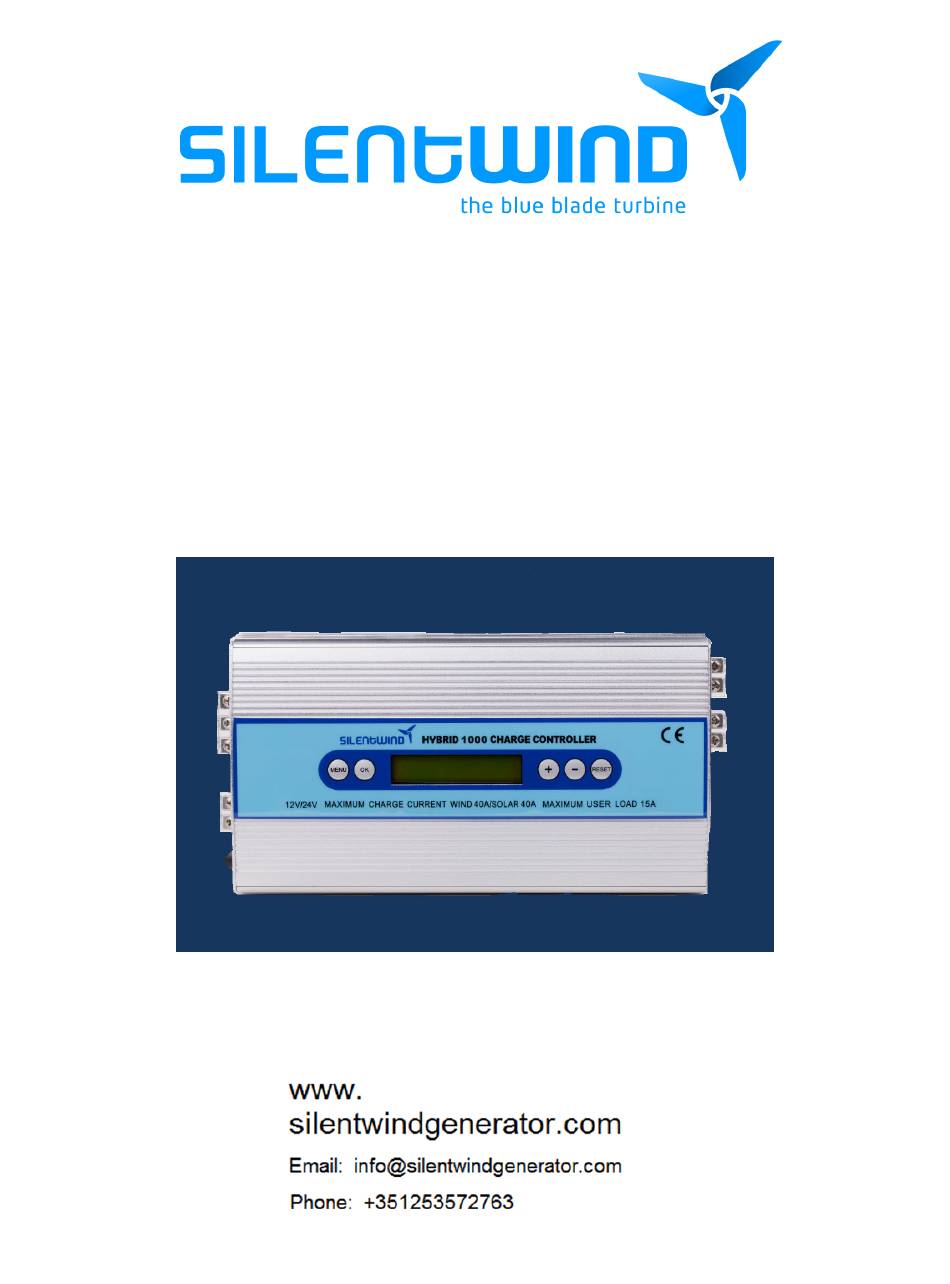

- Page 1 Instruction Manual Hybrid – Charge Controller HYBRID 1000 with LCD-multi-function-display...

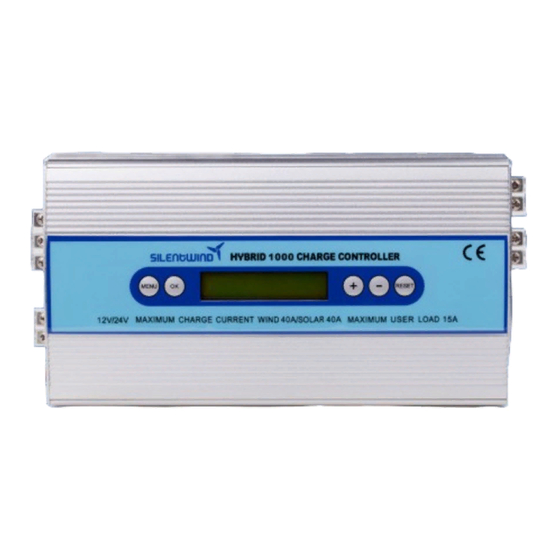

- Page 2 SILENTWIND hybrid charge regulator HYBRID 1000 Before first using this gadget please carefully read this manual. General information: The Silentwind-Charge controller HYBRID 1000 is a combined wind and solar charge regulator with inbuilt micro-controller. HYBRID 1000 was especially developed for the Silentwind Generator and enables you additionally to install solar panels up to a wattage of 550 Watt peak or to a max.
-
Page 3: Table Of Contents
Contents: 1. wiring diagramm 2. technical data 3. components of the charge controller Front side Back side LCD – display 4. Mounting the charge controller Mounting by holding brackets Mounting in a slurry wall trench 5. Cable – cross section 6. -
Page 4: Wiring Diagramm
Technical data hybrid-charge controller type HYBRID 1000 Battery system voltage (automatically detected) 12 or 24 Volt Max. power input of the wind generator 600 W Max. current input of the wind generator Max. power input of the solar panel 550Wp Max. -
Page 5: Components Of The Charge Controller
If the brake is manually or electronically activated, the LED “brake” will lit up. The brake switch should be manually activated in case of storm, maintenance or if you want to work close by the Silentwind Generator. For automatic brake mode please switch position “0” (“RELEASE”) -
Page 6: Back Side
3.2 Back side On the backside of the charge controller there are screw terminals to connect the wind generator and the solar panels. Rear view: 3.3 LCD-Display On the top of the charge controller there is an LCD-display that is necessary to adjust the charge controller and that shows you all operating data during the working process. -
Page 7: Mounting The Charge Controller
Mounting the charge controller The charge controller can be mounted in various cways. We suggest these possibilities: 4.1 Mounting with holding plates (brackets) picture 1: Mount the charge controller with the enclosed holding plates as shown in picture 1. Use suitable screws - depending on the mounting material. Screws are not included in delivery. -
Page 8: Cable Cross Section
As you can see from the wiring diagram in paragraph 1 a 3-pole cable with suitable cross section must be wired from the Silentwind-Generator to the charge controller. The charge power gets from the charge controller to the batteries through two wires... - Page 9 If you wish to connect solar panels with more as 200Wp (20A) you must acquire a stronger circuit breaker. After the connection of the battery you can connect the Silentwind Generator, the solar panel and if required a load output with maximum 15A. On the 3-phase output wires of the Silentwind you need not to pay attention to polarity.
-
Page 10: External Stop Switch
2x0.5mm2. You can choose the type of stop switch suitable to your instrument panel. Connecting solar panels The charge controller Hybrid 1000 is a hybrid controller both for wind and solar energy. Solar panels with a max power of 550 Wp / 40 A can be connected, See technical details page 4. -
Page 11: Programming Charge Controller
We also recommend to make use of the additional adjustments according to your individual requirements. If the point of maximum voltage is reached, the Silentwind Generator will stop for 20 minutes. The break mode of the charge regulator generates internal rising temperatures that are thermically detected. -
Page 12: Programming Instruction
10. Programming instruction 10.1 Operating keys The charge regulator has 5 operating keys on the top: • With the menu key you move through the menu. • With the OK key you move back. • with the "+" and "-" keys you can change the different parameters •... -
Page 13: Charge Cut-Off Voltage
10.3 Charge cut-off voltage In the display mode shown above „charge off“ you can set the max. possible voltage of your battery with the buttons “+” and “-“ . Please note the instructions of the manufacturer of the batteries. The maximum possible voltage is dependent on the system voltage (12/24V) and the type of battery (acid, Gel or AGM) 10.4 Charge amount in Kilowatt hours (kWh) Charge shows you the amount of kWh have been loaded into the battery. -
Page 14: Consumer Settings
10.7 Consumer settings You can also connect a consumer to the screw terminals of the load output and define when the consumer should be switched on and off. The consumer is called user in the picture above. This shows you how many amphours the user has taken. With the button „+“... -
Page 15: Brake Adjustments
10.8 Brake adjustment With +/- you can set the current when you want to stop the Silentwind Generator. This prevents overheating, especially with big battery banks and high loading currents. This function can also be used to reduce the RPM of the Silentwind Generator. - Page 16 If the charge controller is correctly connected, the manual break switch on the front of the charge controller can be switched in position “0”. The Silentwind Generator will then start to turn faster until the charging process starts. The charge controller now starts operating and monitors all special settings that you have programmed according to the type of battery and the instructions of the battery manufacturer (see examples for settings).
-
Page 17: Troubleshooting
If the Silentwind Generator generates too little power • The wind speed is too low, see the performance diagrams shown in the manual of the Silentwind. The wind speed measured on top of the mast is higher than at the position of the wind generator! •... - Page 18 Rulis Eléctrica, Lda. Loteamento Industrial de Linhares, Lote 19 PT-4805-486 Santo Estevão de Briteiros / Guimarães Portugal VAT/Contribuinte / EORI-N. PT 502 995 530 Tel. 00351-253-572763 Fax 00351-253-572764 Tm/Handy 00351 96 790 79 33 e-mail: info@silentwindgenerator.com site: www.silentwindgenerator.com...
