SilentWind HYBRID BOOST Instruction Manual

Charge controller with bluetooth connection
Hide thumbs Also See for HYBRID BOOST:
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual
Hybrid – BOOST Charge Controller with
Bluetooth connection

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYBRID BOOST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SilentWind HYBRID BOOST

Summary of Contents for SilentWind HYBRID BOOST

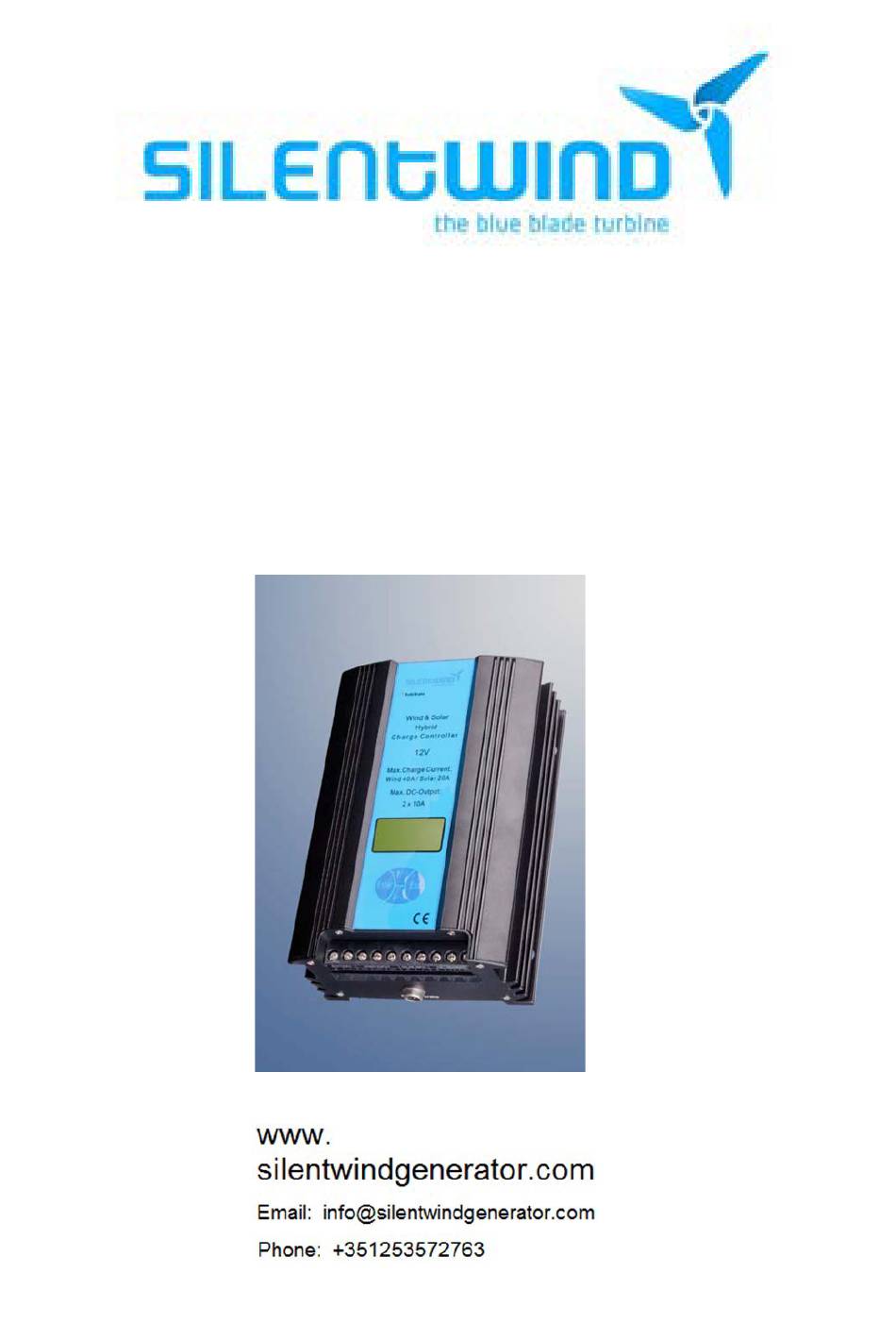

  • Page 1 Instruction Manual Hybrid – BOOST Charge Controller with Bluetooth connection...
  • Page 2 Before first using this equipment please carefully read this manual. General information: The Silentwind charge controller HYBRID BOOST is a combined wind and solar charge controller with an inbuilt micro-controller. The HYBRID BOOST was especially developed for the Silentwind Generator and enables you to additionally install solar panels up to a wattage of 300 Watt peak or to a maximum current of 20A.

  • Page 3: Table Of Contents

    Contents: 1. Wiring diagram 2. Technical data 3. Components of the charge controller Bottom panel connections Front panel LCD 4. Mounting the charge controller 5. Cable size selection 6. Installation and Connection of the charge controller 7. External Stop Switch 8.

  • Page 4: Wiring Diagram

    Wiring Diagram Technical data Hybrid-charge controller type HYBRID BOOST Battery system voltage (automatically detected) 12 / 24 / 48 Volt Maximum power input from the wind generator 600 W Maximum current input from the wind generator 40A / 30A / 15A...

  • Page 5: Components Of The Charge Controller

    Components of the charge controller 3.1 Bottom panel On the bottom of the charge controller there are screw terminals to connect the battery, the wind generator, the solar panels and DC outputs. The connections for the remote brake are also below. Bottom panel:...

  • Page 6: Mounting The Charge Controller

    3.2 LCD On the front of the charge controller there is an LCD that shows you all operating data during the working process. Mounting the charge controller The charge controller generates heat and should be mounted with the panel upright (if you can read the front panel text horizontally then this is correct).

  • Page 7: Cable Size Selection

    As you can see from the wiring diagram in paragraph 1 a 3-pole cable with suitable cross section must be wired from the Silentwind Generator to the charge controller. The charge power gets from the charge controller to the batteries through two wires whereas on the AC input is three wires.
  • Page 8 After you have connected the battery you can connect the Silentwind generator, the solar panels and, if required, connections to the load outputs with maximum 10A. On the 3-phase output wires of the Silentwind you do not need to pay attention to polarity.

  • Page 9: External Stop Switch

    5). You can choose the type of stop switch suitable to your instrument panel. Connecting solar panels The charge controller Hybrid BOOST is a hybrid controller both for wind and solar energy. Solar panels with a max power of 300 Wp ( 20 A for 12V / 10 A for 24V and 5 A for 48V) can be connected, See technical details page 4.

  • Page 10: Programming Charge Controller

    Never install the controller at direct solar radiation or sunlight. This means that the Silentwind Generator can also be operated with a large battery bank. If a larger battery bank is discharged, a higher charge current will flow in high wind speeds.

  • Page 11: Programming Instruction

    10. Programming instruction 10.1 APP Download Android devices please website under following link: http://www.silentwindgenerator.com/en/downloads and download the APP Win- Power directly to your Smartphone or Tablet. For iOS devices, please go to the Apple App Store and search for Win-Power. Download the App directly to your iPhone or iPad.
  • Page 12 9.2.1 Setting parameters Go to menu key on your device and then ‘Data Setting’ 9.2.2 Charging - Absorption mode In the setup field ‘Unload Volts’ shown above you can set the voltage for the absorption mode of your batteries by clicking on the field and change the value. Usually this stage is to slowly keep charging the batteries until the maximum charge 48V).

  • Page 13: Charge Cut-Off Voltage

    9.2.2 Brake adjustment You can set the maximum current when you want to stop the Silentwind Generator. This prevents overheating, especially with big battery banks and high loading currents. This function can also be used to reduce the RPM of the Silentwind Generator.
  • Page 14 Saftey advice: Please never disconnect the battery wires while the Silentwind Generator is charging. This will immediately destroy the charge controller. If you want to measure the charging current flowing, an amp meter must be installed in the positive battery wire.

  • Page 15: Troubleshooting

    If the Silentwind Generator generates too little power • The wind speed is too low, see the performance diagrams shown in the manual of the Silentwind. The wind speed measured on top of the mast is usually higher than at the position of the wind generator! •...
  • Page 16 Rulis Eléctrica, Lda. Loteamento Industrial de Linhares, Lote 19 PT-4805-486 Santo Estevão de Briteiros / Guimarães Portugal VAT/Contribuinte / EORI-N. PT 502 995 530 Tel. 00351-253-572763 Fax 00351-253-572764 Tm/Handy 00351 96 790 79 33 e-mail: info@silentwindgenerator.com site: www.silentwindgenerator.com...
