HITROL CO., LTD.
HEAD OFFICE.FACTORY.R&D INSTITUDE
HITROL CO.,LTD 141, Palhakgol-road, Jori-eup
Paju-si, Gyeonggi-do, Korea
TEL. : (00)-82-31-950-9700
FAX. : (00)-82-31-943-5600
www.hitrol.com

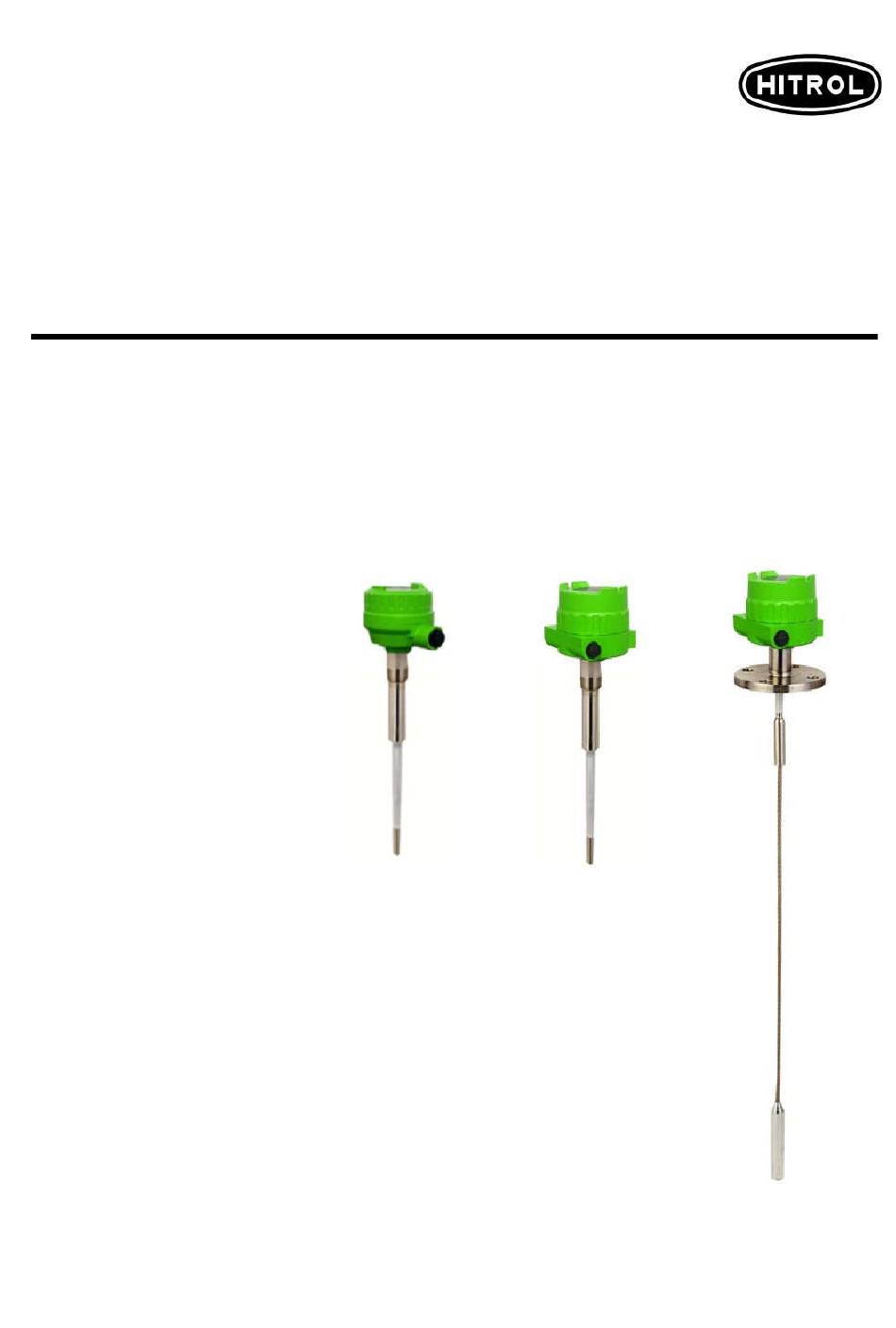

INSTRUCTION MANUAL
CAPACITANCE TYPE LEVEL SWITCH
HITROL CO.,LTD.
HCC(HPC)-95R Series
HCC-95R Series
HPC-95R Series
Doc. no. : HCC(HPC)95R_IM_ENG_R0
Issued date : 2019. 12
1
Advertisement
Table of Contents
Related Manuals for HITROL HCC-95R Series
Summary of Contents for HITROL HCC-95R Series
- Page 1 HCC(HPC)-95R Series HITROL CO., LTD. HEAD OFFICE.FACTORY.R&D INSTITUDE HITROL CO.,LTD 141, Palhakgol-road, Jori-eup Paju-si, Gyeonggi-do, Korea TEL. : (00)-82-31-950-9700 FAX. : (00)-82-31-943-5600 www.hitrol.com INSTRUCTION MANUAL CAPACITANCE TYPE LEVEL SWITCH HCC-95R Series HPC-95R Series Doc. no. : HCC(HPC)95R_IM_ENG_R0 Issued date : 2019. 12...
-
Page 2: Table Of Contents
Removal Cautions · · · · · · · · · · · · · · · · · · · · · ·10 Cautions for Inserted External Wire · · · · · · · ·10 (Ex-Proof Product) Cautions for Grounding · · · · · · · · · · · · · · · · 10 (Ex-Proof Product) HITROL CO.,LTD. -
Page 3: Overview
This change is sensed to detect the object to be measured. C: Capacitance of object to be measured C1: Initial capacitance R: Conductivity of object to be measured HITROL CO.,LTD. -
Page 4: Specifications
Ex-Proof (Ex d IIC T4, IP65) Ex-Proof (Ex d IIC T6, IP65) Ex-Proof (Ex d IIC T4, IP65) Wetted Parts Material 316L with TEFLON Process Connection PT 1”(M) Screw Housing ; Cable Entry AL. ; PF 3/4”(F), IP65 HITROL CO.,LTD. - Page 5 DC 24V DC 24V Output SPDT, DPDT SPDT Contact Rating AC 250V 10A, DC30V 10A (SPDT) AC 250V 10A, DC30V 10A AC 250V 5A, DC30V 5A (DPDT) Enclosure Weather-Proof (IP54) Housing ; Cable Entry AL. ; 2-PF 3/4”(F), IP54 HITROL CO.,LTD.
-
Page 6: Component And Technical Data
: material: Active Rod, 316L material : Teflon 316L With Teflon Active Rod Active Rod material: material: 316L 316L with Teflon Weisht material : C.S, 316L Rod Probe Rod Probe Rod Probe Rope Probe (Fully insulated TEFLON) HITROL CO.,LTD. - Page 7 Fuel oil: gasoline, diesel Hydrogen chloride 4.6–12 Hexane, liquid Butanol 17–18 Ammonia 16–25 Alcohol 16–31 Acetone Caustic soda 22–26 Ethanol Methanol 32–33 Glycerine 47–68 Water Sulfuric acid For the dielectric constant value, visit out website, www.hitrol.com and download from Technical Data. HITROL CO.,LTD.
-
Page 8: Attachment And Cautions
■ If the measure object is fluid in the tank, set adequate time delay for the output relay. ■ Install a sun cover for outdoor installation so as to avoid the influence of temperature rise. ■ If there is an agitator, keep safety distance between the agitator and probe. HITROL CO.,LTD. -
Page 9: Wiring And Amp
(The product is set for the upper limit when the product is shipped.) Unit Composition and Designation ■ - HLC-95R-P Range Set Terminal Contact Output Terminal Power Input Terminal Fail Safe Mode Relay Action LED(Green) Detect LED(Red) Range Set Sensitivity Aduj. Time Aduj (0~30sec.) HITROL CO.,LTD. -
Page 10: Removal Cautions
(3.1 mm SQ). If the power line is bigger than 3.1 mm , connect the ground wire with the terminal lug removed. To connect the internal ground terminal with the terminal lug removed, make sure to insert a washer (to prevent loosening). HITROL CO.,LTD. -
Page 11: Safety And Environment
The ex-proof product is designed according to Articles 34 and 4 of Article 58, Occupation Safety and Health Act. Do not apply a non-ex-proof product in an ex-proof zone. An ex-proof product can be used where the environment and liquid of the containers are type 1 and 2. HITROL CO.,LTD. -
Page 12: Failure Check And Maintenance
You can request A/S from our website or by contacting our headquarters. Headquarters, Factory and Research Center (Contacts) Address: Hitrol, 141, Palhakgol-gil, Jori-eup, Paju-si, Gyeonggi-do, Republic of Korea (Palhakgol-gil 98) HITROL CO., LTD. 141, Palhakgol-road, Jori-eup, Paju-si, Gyeonggi-do, Korea...
