Summary of Contents for Safe Fleet PRIME DESIGN ACX

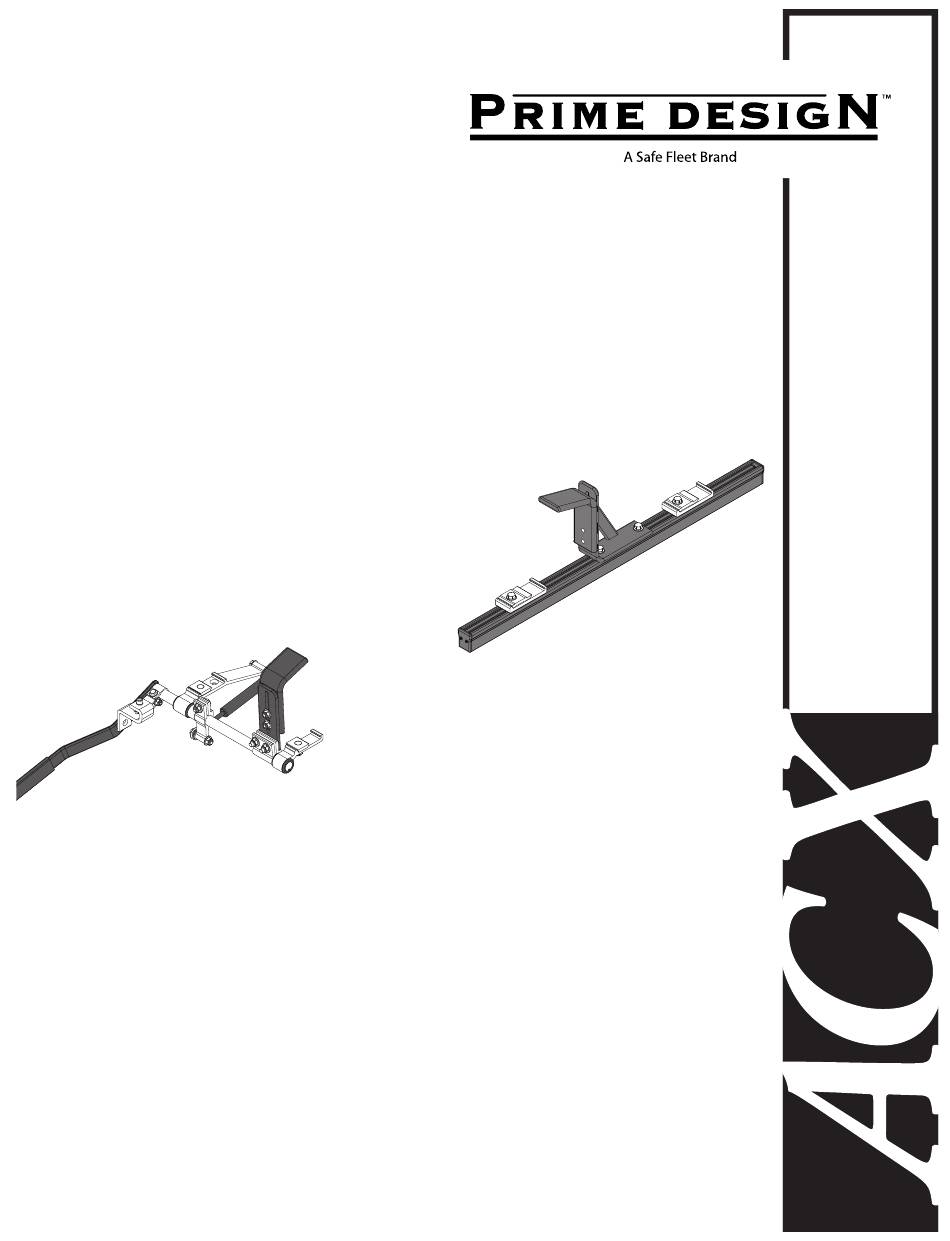

  • Page 1 PRIME DESIGN, A SAFE FLEET BRAND ▪ Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 Toll Free: 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
  • Page 2: Contents Overview

    CONTENTS OVERVIEW 1—Quick Clamp Assembly ........Qty 1) Left Hand, Rear, w/Handle 2—Rear Clamp Support Assembly......(Qty 1) AluRack 3—Clamp Down Handle Assembly ....... (Qty 1) Left Hand, 14.00”, Bent w/Hardware 4—Lock Bracket Assembly ........(Qty 1) AluRack, w/Hardware 5—Quick Clamp Front Hook Assembly ....(Qty 1) AluRack, Adjustable Prime Design Limited Warranty.
  • Page 3 RIGHT ACX ASSEMBLY SEQUENCE This ACX Left Hand Quick Clamp Assembly is shown installed onto a Prime Design AluRack for illustrative purposes only. Installer Note: Alternative Instructions in this manual are for Prime Design Alurack for Ford Transit Connect, due to differing positions in Channel Mounts.
  • Page 4 Position the Clamp into For maximum Handle distance from the bottom groove on the vehicle, position the Gas Spring the AluRack Crossbar Clamp firmly against the Side Rail as shown in Figure A Support this end until Step 1.6 Fig. A Position the Rear Clamp Support onto the Clamp Rod, then into the Crossbar groove...
  • Page 5 ALTERNATIVE POSITIONING For maximum Handle distance from FOR FORD TRANSIT CONNECT RACK MODELS 1.10 the vehicle, position the Gas Spring Clamp firmly against the Channel Mount as shown in Figure B Position the Clamp into the bottom groove on the AluRack Crossbar Fig.
  • Page 6 CLAMP DOWN LOCK BRACKET SEE QUICK START GUIDE FOR ADJUSTMENTS Remove the Lock Bracket hardware and retain for Step 2.4 Remove but do not discard 1.14 Slide the Clamp Down Handle onto the Clamp Down Rod until fully seated. Torque the Handle Bolt to 90 in-lbs Remove the Bolts and Lock Washers from the rear-most Crossbar, and Roller...
  • Page 7 Align the hole on the Lock Bracket to the lock hole on the Handle as shown below Holes aligned Torque Lock Bracket Bolt to 80 in-lbs FRONT HOOK ASSEMBLY After determining Front to Rear Ladder Hook spacing based upon ladder size, slide the Front Hook Assembly SEE QUICK START GUIDE FOR ADJUSTMENTS under the Crossbars to that determined distance.
  • Page 8 Attach the Front Hook Assembly onto your designated Position the Front Hook Assembly until it Crossbars. The Channel Connectors must seat into the centers with the Rear Clamp Down Hook. bottom groove of the Crossbar as shown below. Do not tighten until Step 3.7 Both Channel Connectors must seat into the Crossbar groove...
