Safe Fleet PRIME DESIGN PRI-255 Quick Start Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
PRIME DESIGN, A SAFE FLEET BRAND ▪ Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118
Toll Free: 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRIME DESIGN PRI-255 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Safe Fleet PRIME DESIGN PRI-255

Summary of Contents for Safe Fleet PRIME DESIGN PRI-255

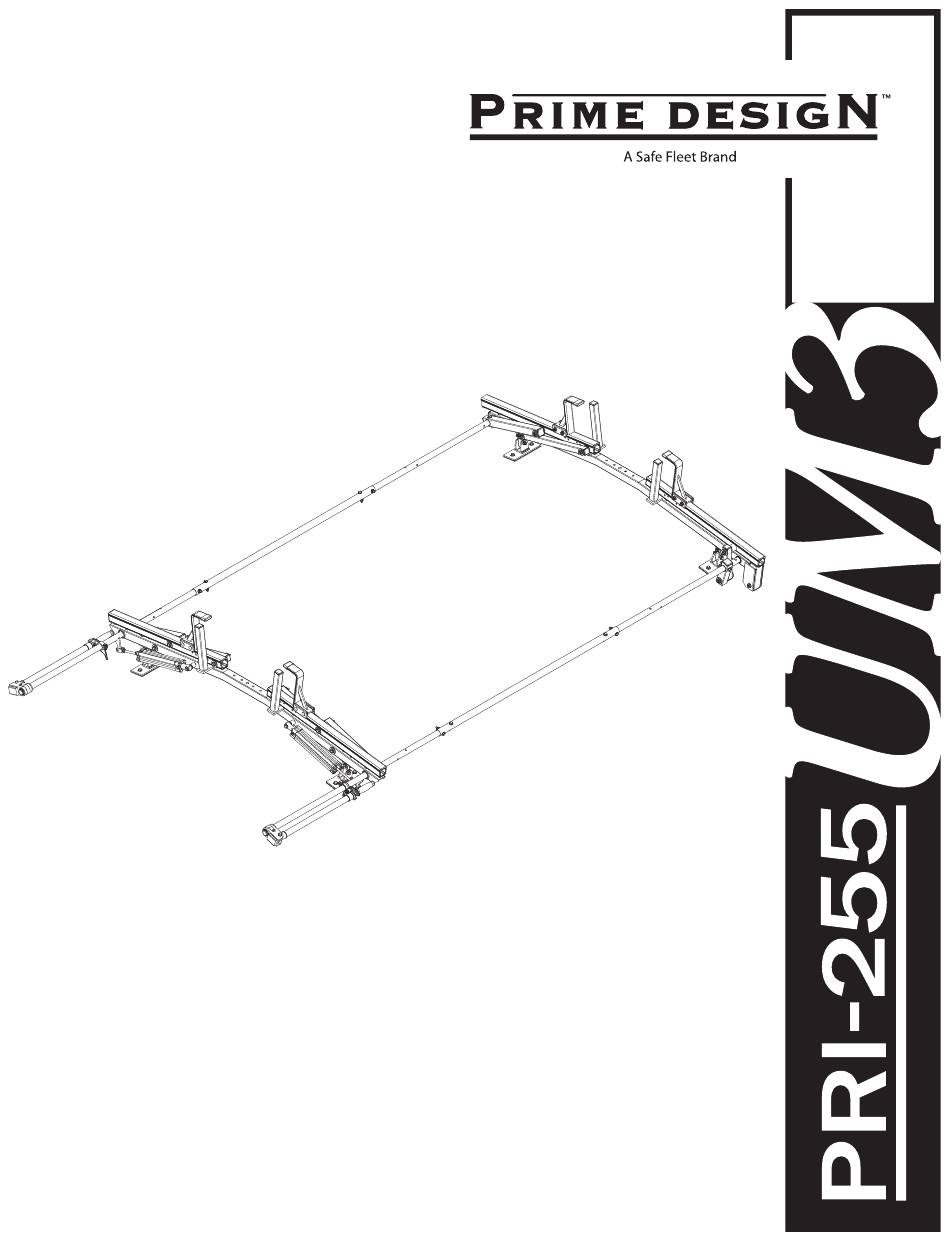

  • Page 1 PRIME DESIGN, A SAFE FLEET BRAND ▪ Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 Toll Free: 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...

  • Page 2: Contents Overview

    CONTENTS OVERVIEW 1—UM3..............(Qty 4) Mounting Feet with Hardware Mounting Top (2X) Mounting Post (2X) Mounting Foot (2X) Foam Pad (2X) M8 x 35MM (4X) M8 x 40MM (2X) M8 x 55MM (2X) M8 x 70MM (4X) Fender Washer (4X) Sealing Neoprene Washer (4X) Washer (4X)
  • Page 3 4—Rear Drive Shaft ..........(Qty 1) Right Hand, B4 Version, 50.00” 5—Rear Drive Shaft ..........(Qty 1) Left Hand, B4 Version, 50.00” 6—Connecting Bar ..........(Qty 2) 48.00” 7—Front Drive Shaft ..........(Qty 2) B Version, 38.75” 8—Drive Arm ............(Qty 1) Incline Version with Bushing and Hardware 9—Z Post ..............
  • Page 4 UM3 MOUNTING BRACKETS Assemble the Mounting Top to the Mounting Post using the hardware as shown below. MOUNTING BRACKETS TO ROOF Assemble the Mounting Post to the Mounting Foot using the hardware as shown below. Bolt M8 x 40MM Bolt M8 x 55MM Assemble onto vehicle roof as shown, then torque the Mounting Drill bolt holes according to the dimensions shown.

  • Page 5: Rear Drive Shaft

    RIGHT ROTATION ASSEMBLY SEQUENCE 3/19 CROSSBARS REAR DRIVE SHAFT Apply Anti-Seize compound to Mounting Bracket bolts Repeat Steps 1.1–1.2 to install the remaining Mounting Torque to 90 in-lbs. Brackets onto the Front Crossbars. Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).

  • Page 6: Cylinder Assembly

    CYLINDER ASSEMBLY CONNECTING BAR FRONT DRIVE ARM FRONT DRIVE SHAFT Align holes Torque to 90 in-lbs. Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
  • Page 7 CONNECTING BAR FASTENERS CROSSBAR SEALING Cover the first Crossbar hole. Cover the second Crossbar hole. L POSTS Z POSTS SEE QUICK START GUIDE FOR ADJUSTMENTS 10.1 10.1 10.2 Torque to 90 in-lbs Torque to 90 in-lbs Torque to 90 in-lbs Prime Design Limited Warranty.
  • Page 8 LEFT ROTATION ASSEMBLY SEQUENCE 16/17 12/19 REAR DRIVE SHAFT CYLINDER ASSEMBLY 11.1 12.1 11.2 12.2 11.3 Torque to 90 in-lbs. Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
  • Page 9 FRONT DRIVE SHAFT CONNECTING BAR 14.1 14.2 13.1 14.3 13.2 14.4 Torque to 90 in-lbs. CROSSBAR SEALING Cover the first Crossbar hole. Cover the second Crossbar hole. Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
  • Page 10 Z POSTS L POSTS SEE QUICK START GUIDE FOR ADJUSTMENTS 18.1 18.1 Torque to 90 in-lbs 18.2 Torque to Torque to 90 in-lbs 90 in-lbs CYLINDER ADJUSTMENT Adjust the Cylinder Flow Control Screw to allow approximately 3 seconds time for the ladder to glide down when operating the loaded Ladder Rack.
  • Page 11 DRIVE SHAFT SEALING 20.2 Apply Silicone Sealant to Connecting Bar ends 20.1 20.2 20.1 Apply Silicone Sealant to Connecting Bar ends Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
  • Page 12 USAM-PRI255UM3-US01 Rev-A 0618...
