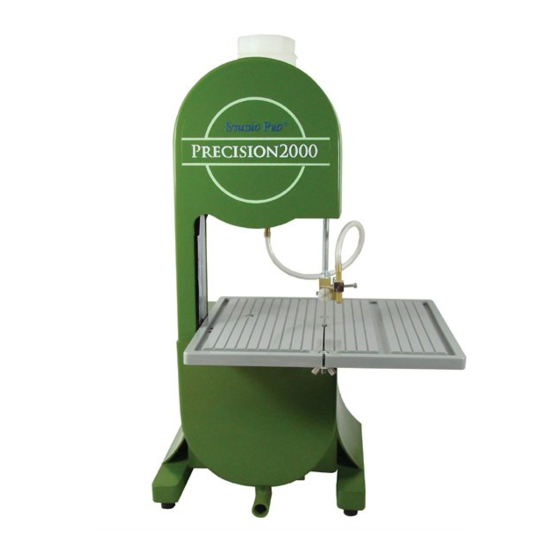

- Page 2 BEFORE YOU BEGIN READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY. KEEP OUT OF REACH OF CHILDREN. WARNING: This product contains small parts that may be a choking hazard to small children. • After unpacking all components, assemble band saw on a fi rm level surface to prevent saw from tilting or rocking. •...
- Page 3 ASSEMBLY INSTRUCTIONS A. Table Installation 1) Remove table mounting bolts located directly behind the blade with a hex wrench. Loosen and remove the table alignment screw, washer and wing nut, on the front of the cutting table. 2) While holding the table with the slot opening directly behind the blade, carefully slide the diamond blade through the slot (Fig.1).
- Page 4 C. Water Systems The PRECISION 2000™ comes equipped with brass water supply nozzle and large capacity water bottle, offering better water fl ow to the front of the blade for increased cooling and lubrication. 1) Remove water bottle cap and fi ll with approximately 24 oz. of water. Replace cap but do not screw lid on tightly.
- Page 5 Fig.10 Fig.11 Fig.12 1) Turn OFF power switch. 2) Remove upper and lower covers and water bottle to access tracking/locking knob located behind the upper wheel (Fig.13). 3) Loosen the knob closest to the saw, this is the locking mechanism (Fig.14). Loosening this knob will allow for free movement of the wheel.
- Page 6 Fig.15 Fig.16 PRECISION 2000 DELUXE ASSEMBLY INSTRUCTIONS A. Reservoir Installation 1) Place reservoir on a fi rm level surface, to prevent saw from tilting or rocking. The small compartment of the reservoir should be on the left side of the saw. 2) Lift saw and insert feet into the 4 openings in the reservoir base (Fig.
- Page 7 ™ ™ Diamond Tech offers a Diamond Blade repair service should a blade break with ample diamond remaining. Return blade to Diamond Tech, Blade Repair Service, 5600 Airport Blvd., Suite C, Tampa, FL 33634. When returning a blade for repairs, make sure you include your name, addresses, daytime phone number @ area code, saw model and type of payment.
- Page 8 WITHOUT SUCH PRIOR AUTHORIZATION! Return postage and insurance are the responsibility of the consumer. Diamond Tech will return your equipment postage paid and insured if it is under warranty. Any Band Saw no longer under warranty will be returned at the owner’s expense. Diamond Tech reserves the right to repair or replace faulty equipment at its discretion.
