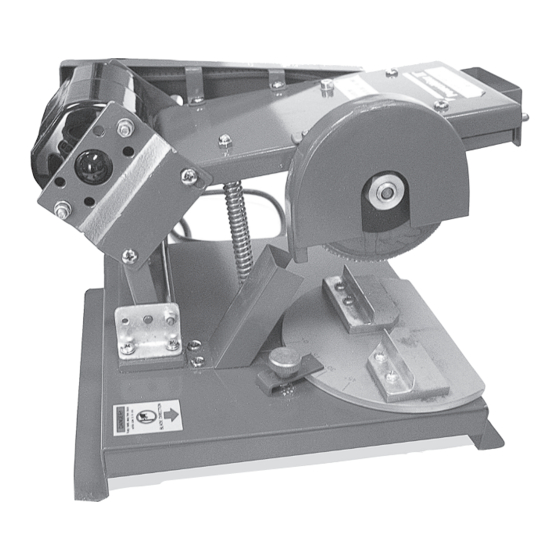

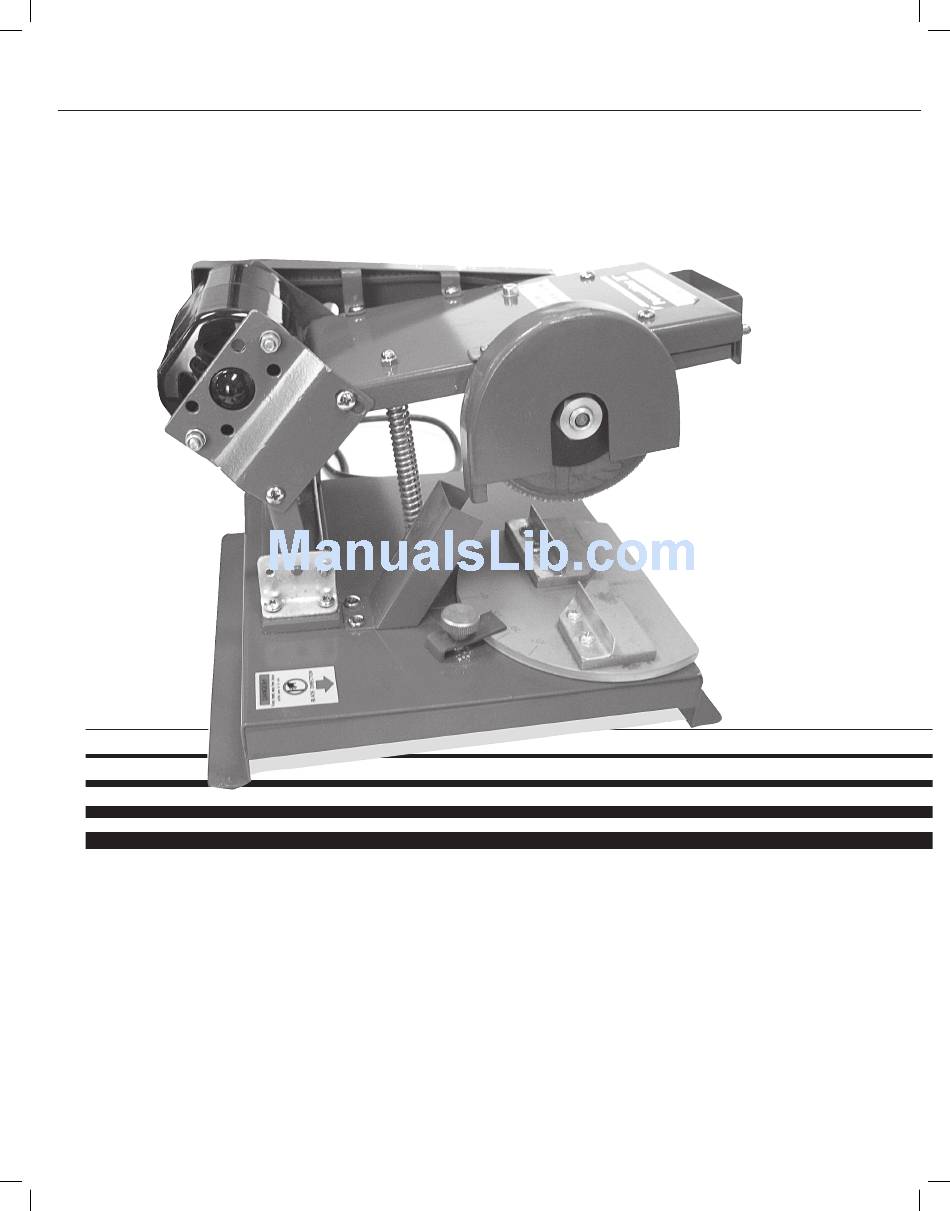

- Page 1 Power Miter ii oPerations Manual DiamonD Tech innovations For creativity Power Miter II chop Saw OperatiOns manual...
- Page 2 Power Miter ii oPerations Manual - Page 1 Before You Begin Read and follow all instructions carefully. • Unpack and inspect all components. Assemble chop saw on a firm level surface to prevent saw from tilting and rocking. • Always disconnect chop saw from electrical outlet before setting up or servicing. • Be sure the power switch is in the OFF position before plugging in the chop saw. • Wear proper apparel. Never wear loose fitting clothes, neckties, jewelry and gloves that may get caught in moving parts. • Remove all wrenches before using chop saw. Leaving wrenches or loose items on the saw while operating this tool may result in damage to the machine and/or operator. • Always wear safety glasses. Everyday eyeglasses have only impact resistant lenses; they are not safety glasses. • Make sure blade is sharp, undamaged and properly aligned. • Always hold material being cut firmly on cutting table. • To reduce the risk of fire never use the chop saw near flammable liquids, vapor or gasses. • Keep out of reach of children.
-
Page 3: Initial Setup
Power Miter ii oPerations Manual Contents Your Power Miter II has been shipped fully assembled. Carefully remove ™ saw and accessories from the packaging. 1- Power Miter II Saw Body 2- Oil Dispenser 3- 1/2 ounce of oil 4- Hex Wrenches Initial Setup a. Inspect and adjust Power Miter II Chop Saw. 1) Place chop saw on a firm level work surface. Do not plug Fig.1 saw in to an electrical outlet at this point. 2) Inspect saw for any damages that may have occurred Lock Bolt during shipping. 3) The blade teeth should be pointing downward at the front of the saw. If necessary tighten the blade retaining nut at this time. 4) Occasionally the path of the blade will shift out of alignment during shipping. Test alignment with miter/angle guide:... - Page 4 Power Miter ii oPerations Manual Operations and Use of Chop Saw the powerful motor of the power miter ii Chop saw is designed to cut hardened lead, zinc, wood, copper and brass came or framing. WARNING: This machine is NOT designed for cutting ferrous metals (steel, iron and iron based metals.) Use this miter saw to cut only thin wood, or soft metals like aluminum, brass or zinc.
-
Page 5: Troubleshooting
Page 4 - Power Miter ii oPerations Manual motor mount screws. 5) Check drive belt tension by pressing downward on the drive belt with moderate pressure. There should be 1/4” – 3/8” give in the drive belt. 6) Secure drive belt cover back into position with screws. Quick Tips 1) If any part of this chop saw is missing, bent, or broken in any way, or any electrical parts don’t work, turn the saw off and unplug it. Replace damaged, missing, or failed parts before using the saw again. 2) Keep guards in place, in working order, and in proper adjustment. 3) Should your chop saw make an unfamiliar noise or vibrates, stop immediately. Turn the saw off, unplug the saw from the outlet, and do not restart until the problem has been corrected. Troubleshooting problem: Blade jams while cutting. This may occur if you feed material too rapidly into the blade or make too many Cause: start/stops in a short time. May also be attributed to an improper or dull saw blade. solution: Release the trigger switch immediately and unplug the saw from the outlet. Check blade to insure it turns freely. Once the blade is free, check the breaker box, if a circuit was tripped simply flip the breaker switch or replace the fuze. Plug saw into the outlet and try to start the motor again. problem: The chop saw shakes or vibrates during use. - Page 6 Power Miter ii oPerations Manual - Page 5 additional Parts Item Item Number 110V MOTOR P800 220 - 230V MOTOR P800A SWITCH ASSEMBLY P801 DRIVE BELT SAFETY COVER P803 BLADE COVER P805 MITER GUIDE ADjUSTABLE TABLE P810 BLADE ARBOR P811M DRIVE BELT P812...
- Page 7 Page 6 - Power Miter ii oPerations Manual...
- Page 8 - Page 7 Power Miter ii oPerations Manual Diamond Tech Power Miter II Chop Saw - 3 Year Warranty Diamond tech’s Power Miter II Chop Saw and accessories are manufactured to high quality standards and are serviced by highly qualified technicians. The Power Miter II is warranted to the original purchaser for three full years from the original purchase date. During the three year period, if you feel the Power Miter II is not performing properly and needs to be serviced, contact Diamond Tech at 1-800- 937-9593 or email info@dticrafts.com for a Return Authorization Number. Equipment will not be accepted at Diamond Tech without a Return Authorization Number. If returning your band saw for evaluation or repair, be sure to include your Name, Address, Daytime Phone Number with Area Code and a letter explaining the specific problem you are encountering. You will be contacted if any necessary parts or service are not covered under the warranty. Date of purchase __ / __ / __ Mark the Return Authorization Number clearly on every package! Do not send this product back without such prior authorization! Return postage and insurance are the responsibility of the consumer. Diamond Tech will return your chop saw...
