USB Dongle

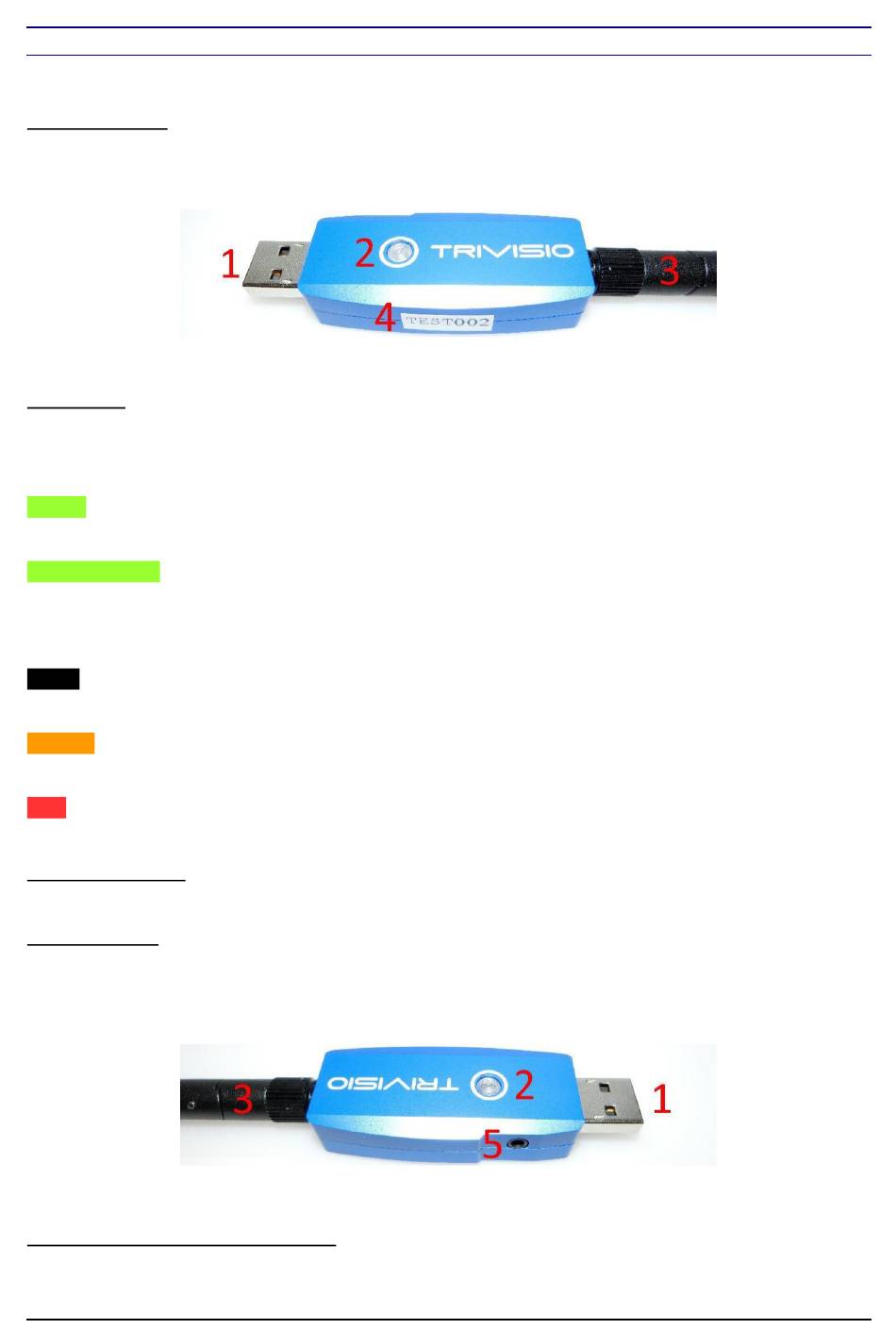

Getting to know the USB dongle:
1.USB Connector
Connects to you Desktop or mobile PC USB port. (sometimes also called "Gate")
2.Status LED
Displays the status of the dongle.
Standby:
Green:
Solid: dongle is ready for use.
Green/Orange:
Flashing:RF Channel change.
While measuring:
black:
Flashing:data sample repeated once
orange:
Flashing:data sample repeated more than once
Red:
Flashing:data sample lost
3.Wireless antenna
2.4 GHz wireless antenna. Without this antenna the dongle does not work.
4.Serial number
The serial number is unique to each individual dongle. The serial number is important in establishing
a connection between the USB dongle and the tracker.
5.2,5mm Plug for master-slave cable
To link two dongles together in one network. (Do not connect earphones or speakers here).
