PRO- TW1L
OWNER'S MANUAL
4 OHMS
400W MAX
200W RMS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO- TW1L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DS18 PRO- TW1L

Summary of Contents for DS18 PRO- TW1L

  • Page 1 PRO- TW1L OWNER'S MANUAL 4 OHMS 400W MAX 200W RMS...
  • Page 2 DIMENSIONS INSTALLATION & CONNECTION OPTIONS: BATTERY BATTERY Blue LED (-) Red LED (-) Green LED (-) LED-BTC 12V DC (+)
  • Page 3 To connect without LED Control Module (LED-BTC), Connect as Shown in the Following Diagram: Black wire “BK” Connected to Battery Positive (+) 12V White Color Light “R” ; “B” and “G” Connected to Battery Negative (-) Green Color Light “G” Connected to Battery Negative (-) Red Color Light “R”...

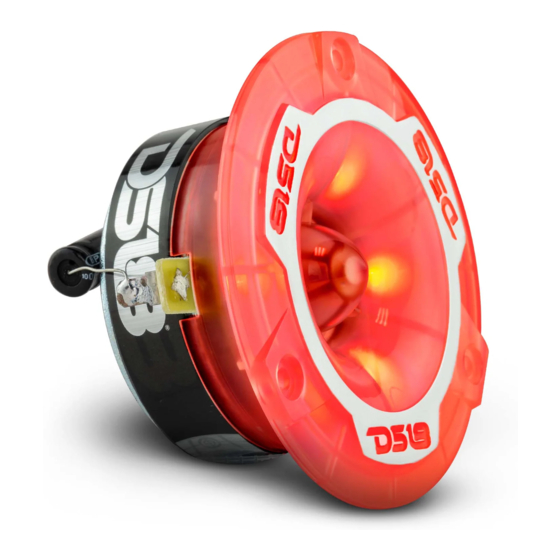

  • Page 4 ’ ALUMINIUM SUPER BULLET TWEETER TRANSPARENT POLYCARBONATE BODY AND BULLET FREQUENCY RESPONSE 3.5KHz-20KHz SURFACE RING BRUSHED SILVER FILM HOT STAMP CAPACITOR CROSSOVER INCLUDED 1” HIGH TEMPERATURE KAPTON VOICE COIL ZINC PLATED TOP AND BACK PLATE 8 OZ Y30 FERRITE MAGNET 200 WATTS RMS POWER 400 WATTS MAX POWER IMPEDANCE 4 OHMS...
