- Page 1 JL- HARNESS USER MANUAL...

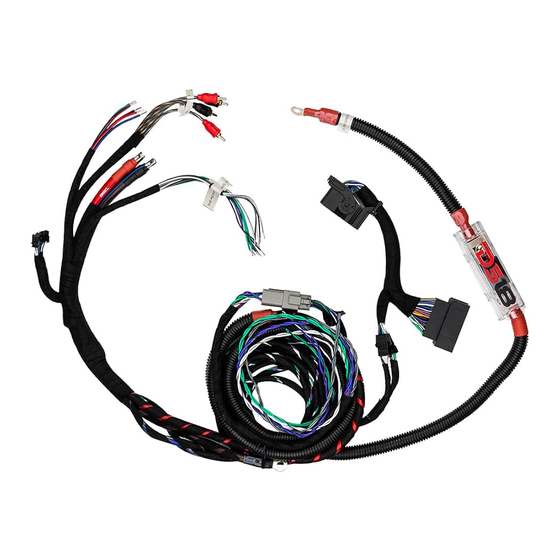

- Page 2 JL-HARNESS Thank you for choosing the DS18 JL-HARNESS for your factory radio. This harness installation kit will allow you to add an amplifier under the passenger seat for the DS18 JL-SBAR and also amplify the dashboard speakers (optional), it also comes ready for the LED-BTC lights module and the audio signal module V4HL.V2.
- Page 3 FACTORY RADIO SPEAKER / HARNESS SIGNAL CONNECTOR DS18 HARNESS (RADIO SIDE) A - Connect the DS18 T-Harness connector between the factory radio unit and the radio harness. **ATTENTION** Disconnect the negative post (Ground) of the battery before you start the installation. This helps avoid airbags coding and malfunctions, codes...
- Page 4 JL-HARNESS Amplifier Side Installation TO LED BTC LED-BTC (Sold separately) 6 CHANNEL AMPLIFIER (Sold separately) V4HL.V2 (Sold separately) A. RGB Wire: connect this RGB wire to the LED-BTC module matching the color wires as described in the picture (Red: Red, Yellow: Green, White: Blue, Black: Black).
- Page 5 NOTE: If you use 4 or 5 Channels FACTORY RADIO amplifier without upgrading the HARNESS front speaker you will need to bypass the “Front” signal. Use only the “Rear” signal to JL-SBAR or DS18 HARNESS DS18 (RADIO SIDE) subwoofer channels. T-HARNESS RADIO Cut the wires: White CH1(+),...
- Page 6 JL-HARNESS SoundBar Side CONNECTOR RGB WIRE RGB BADGE SPEAKERS, RINGS TWEETERS, RGB LIGHTS SPEAKERS TWEETERS...
- Page 7 B - RGB LED light wire: connect this to each RGB LED lightings such as speakers, rings, grills, tweeters, and DS18 Badge used for the Soundbar. Black: +12V, Red: Red color (-), Green: Green color (-), Blue: Blue color (-).
- Page 8 FOR MORE INFORMATION PLEASE VISIT DS18.COM We LIKE IT LOUD...
