Item #635-614
Model #
143-002-22ET-V2
USE AND CARE GUIDE

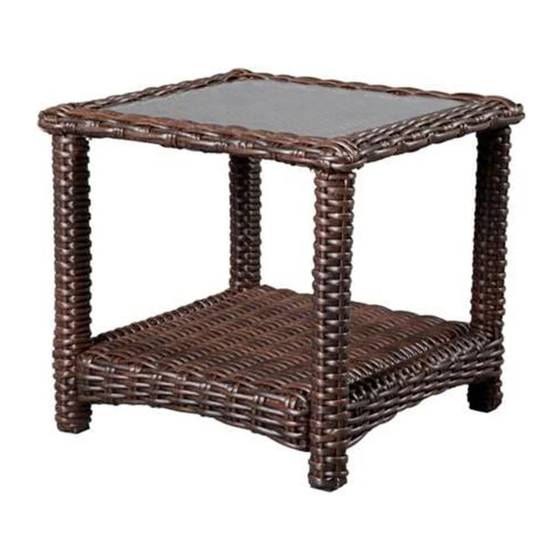

MILL VALLEY 22 in. GLASS TOP END TABLE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8.00 a.m. - 6.00 p.m., EST, Monday - Friday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
ntinually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Related Manuals for HAMPTON BAY MILL VALLEY
Summary of Contents for HAMPTON BAY MILL VALLEY
- Page 1 Item #635-614 Model # 143-002-22ET-V2 USE AND CARE GUIDE MILL VALLEY 22 in. GLASS TOP END TABLE Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8.00 a.m. - 6.00 p.m., EST, Monday - Friday 1-855-HD-HAMPTON HAMPTONBAY.COM...
-
Page 2: Table Of Contents
Table of Contents Pre-Assembly ............3 Table of Contents............2 Planning Assembly ..............3 Safety Information............2 Hardware Included..............3 Warranty ..............2 Package Contents ..............4 2 Year Frame and Weave Limited Warranty........2 Assembly ..............5 ..............2 What Is Covered What Is Not Covered .............. -
Page 3: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY It will take one person about 15 minutes to complete the assembly process. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Bolt (M6x20) Bolt (M6x35) Washer Bolt cap Hex wrench HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance. -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Table rim Apron Table leg Glass... -
Page 5: Assembly
Assembly Attaching the table legs Attaching the apron □ □ Place the glass top (D) aside from the table rim (A). Align the apron (B) among two table legs (C). □ □ Secure the apron (B) to table legs with washers (CC) and bolts (BB) using hex wrench (EE). - Page 6 Assembly (continued) Attching the glass top □ Turn over the table frame to upright position. □ Inset the glass (D) into the table rim (A).
- Page 7 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8.00 a.m. – 6.00 p.m., EST, Monday-Friday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
