- Page 1 Multitone Electronics plc EkoTek Hub Quick Guide www.multitone.com...
- Page 2 Telecommunication Terminal Equipment R & TTE Directive 99/5/EC & RoHS Directive 2011/65/EU (Decision 768/2008/EC Annex II, Module A) As the manufacturer, we declare under our sole responsibility that the EkoTek 2WHUB equipment in its various forms, conforms to all the applicable essential requirements of the...

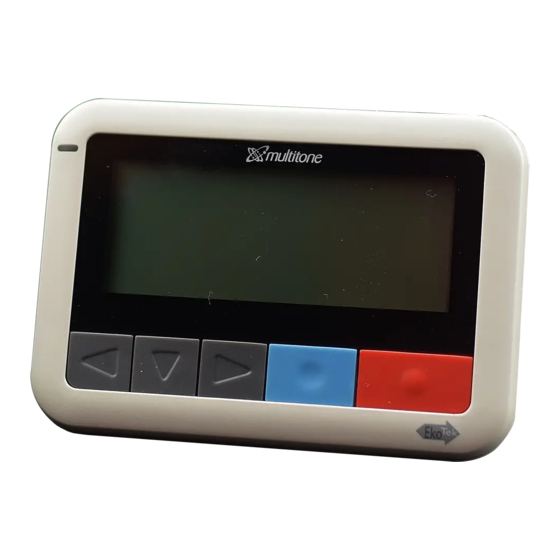

- Page 3 Red button: emergency alarm. Turning on the device • To switch the hub on, insert the power supply into the back of the hub. • Insert back-up batteries. • Ensure isolator switch is in the correction position. 9261-9210 EkoTek-Hub/2WHUB/Issue 1 3 of 11...
- Page 4 The following icons are displayed in the top right corner of the display as status indicators: Plugged in to power source: Running on back up battery: Audible alert: Shift mode: day shift: night shift: Screen display 11:34 12.03.07 Hub [1234567] Name / Message status EkoTek 9261-9210 EkoTek-Hub/2WHUB/Issue 1 4 of 11...
- Page 5 The alarm is sent out to the pagers/users configured by the administrator. • Use the ◄ button to clear the alarm. • The alarm will be re-sent at an interval configured by administrator, until the alarm is cleared. 9261-9210 EkoTek-Hub/2WHUB/Issue 1 5 of 11...
-
Page 6: Receiving Messages
After display time-out, the screen returns to the message overview screen. • The first part of each message is shown in a list format. • Use the ▼ button to scroll through the messages. • Use the button to display the full message. 9261-9210 EkoTek-Hub/2WHUB/Issue 1 6 of 11... -
Page 7: Hub Functions
• Use the ▼ button to increase the year to the desired year • Press the ► button to confirm the date • After a short delay the time displayed in the standby screen will show the new date 9261-9210 EkoTek-Hub/2WHUB/Issue 1 7 of 11... - Page 8 The standby screen then appears and the IP address of the hub is displayed after a short displayed after a short time as a message • This can be deleted as per a standard message. 9261-9210 EkoTek-Hub/2WHUB/Issue 1 8 of 11...
-
Page 9: Advanced Settings
• Available options: 8, 16, 32 and 64 second time-out. iii. Font • Available options: 7 x 5, 10 x 5, 10 x 8 formats (only applicable to message display). iv. Contrast • Available options: scroll between 0 to 5. 9261-9210 EkoTek-Hub/2WHUB/Issue 1 9 of 11... - Page 10 The ‘clear alarm’ instruction can be displayed on the screen to show users how to clear a raised alarm. • To hide this information the ‘Hide Clear Info’ function can be turned on. • See navigation instructions for how to select options. 9261-9210 EkoTek-Hub/2WHUB/Issue 1 10 of 11...
