Multitone EkoTek Quick Manual

Welcome to your
EkoTek Pager Quick
Guide
Further instructions are
available from the
multitone support site
www.multitone.com
1.

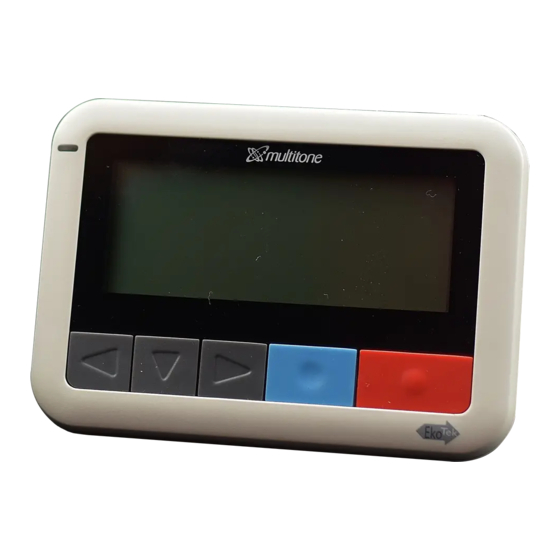

Buttons

(from left to right):
Navigation keys: left arrow, down arrow, right arrow
Blue button: assist alarm
Red button: emergency alarm
4.

Emergency Alarm (red button):

Single click or double click, depending on configuration
raises emergency alarm
The alarm is sent out to the pagers/users configured by
the administrator
Press and hold the ◄ button to clear the alarm
The alarm will be re-sent at an interval configured by
administrator, until the alarm is cleared
2.
Turning on the device
To switch the device on for the first time, place the unit in
the charger and charge for a minimum of 12 hours.
Otherwise press and hold the ◄ button
Charging the battery
The pager is fitted with an AAA Ni-Mh
rechargeable battery. To charge the battery, place the
device in the charger.
Do NOT attempt to remove the battery. Opening the device
will invalidate any warranty. Please give the device to your
administrator for return to a Multitone Agent for service.
5.
(if enabled)

Assist Alarm (blue button):

Single click raises assist alarm and automatically
returns to normal state (no alarm clear necessary)
The alarm is sent out to the pagers/users configured by
the administrator
Man-Down Alarm:
for longer than the configured trigger period
Dead-Man Alarm: If a response is not entered to the pe-
riodic prompt
Snatch Cord Alarm:If the pager is snatched, the cord
disengages from the body of the pager and sends alarm
(if enabled)
If unit is tilted more than 45 degrees
For further information or
troubleshooting, please refer to your
system administrator.
3.
Raising and clearing alarms
When an alarm is raised a text message is sent to
configured group of pagers
The text includes the raising device's identity, the alarm
type that has been activated and the current location of
the device
On clearance of an alarm, a text message is sent with
the device's identity stating the alarm has been cleared
6.

Receiving Messages

Upon receiving a message, the pager will sound an
alert, vibrate and activate the backlight depending on
profile settings and the message will be displayed
If multiple messages, use the ▼ and ► buttons to
select
Select the ▼ button to see the available responses
(accept and reject or delete)
Use the▼ button to scroll to the desired option
Select the ► button to send the response or delete
Accept responses will be sent to the user that raised
the alarm to show help is on its way
