OWNER' S GUIDE & INSTALLATION INSTRUCTIONS
Transom Mount Depth Transducer
or TRIDUCER
Models: P23, P32
U. S. Patents: 4,555,938; 4,644,787; 5,606,253; Des. 334,335
Canadian Patent 1,233,341
IMPORTANT : Please read the instructions completely
before proceeding with the installation. These
instructions supersede any other instructions in your
instrument manual if they differ.
CAUTION : NEVER USE SOLVENTS
Cleaners, fuel, paint, sealants, and other products may
contain strong solvents, such as acetone, which attack
many plastics greatly reducing their strength.
Applications
• Not recommended for boats with large or twin screw inboard
engine(s).
• Good operation up to 55kn (63MPH)
• Vertically orients sound beam on hull with deadrise angle up to 30°
• Adjusts to transom angles from 3
• Bracket protects sensor from frontal impact only
Tools & Materials
Scissors
Masking tape
Safety goggles
Dust mask
Electric drill
Drill bits:
Bracket holes
Transom hole (optional) 18mm, 11/16", or 3/4"
Cable clamp holes
Straight edge
Wire cutters (some installations)
Marine sealant
Screwdrivers
Pencil
Zip-ties
Water-based antifouling paint ( mandatory in salt water )
Pretest Temperature & Speed Functions
Check for the approximate air temperature and a speed reading (if
applicable). Connect the sensor to the instrument and spin the
paddlewheel. If there is no reading or it is inaccurate, return the
product to your place of purchase.
Multisensor
®
with Integral Release Bracket
° –20 °
4mm, #23, or 9/64"
3mm or 1/8"
Record the information found on the cable tag for future reference.
Part No._________________Date___________Frequency________kHz
P23
Mounting Location
For the best performance, the sensor must be in contact with
aeration-free and turbulence-free water. Mount the sensor on the
transom as close to the centerline (keel) of the boat as possible.
On slower, heavier, displacement hulls, positioning it farther from
the centerline is acceptable.
Caution : Do not mount in an area of turbulence or bubbles:
Near water intake or discharge openings
Behind strakes, struts, fittings, or hull irregularities
Behind eroding paint (an indication of turbulence)
Caution : Avoid mounting the sensor where the boat may be
supported during trailering, launching, hauling, or storage.
• Single drive boat —Mount on the starboard side at least 75mm
(3") beyond the swing radius of the propeller (see Figure 1).
• Twin drive boat —Mount the sensor between the drives.

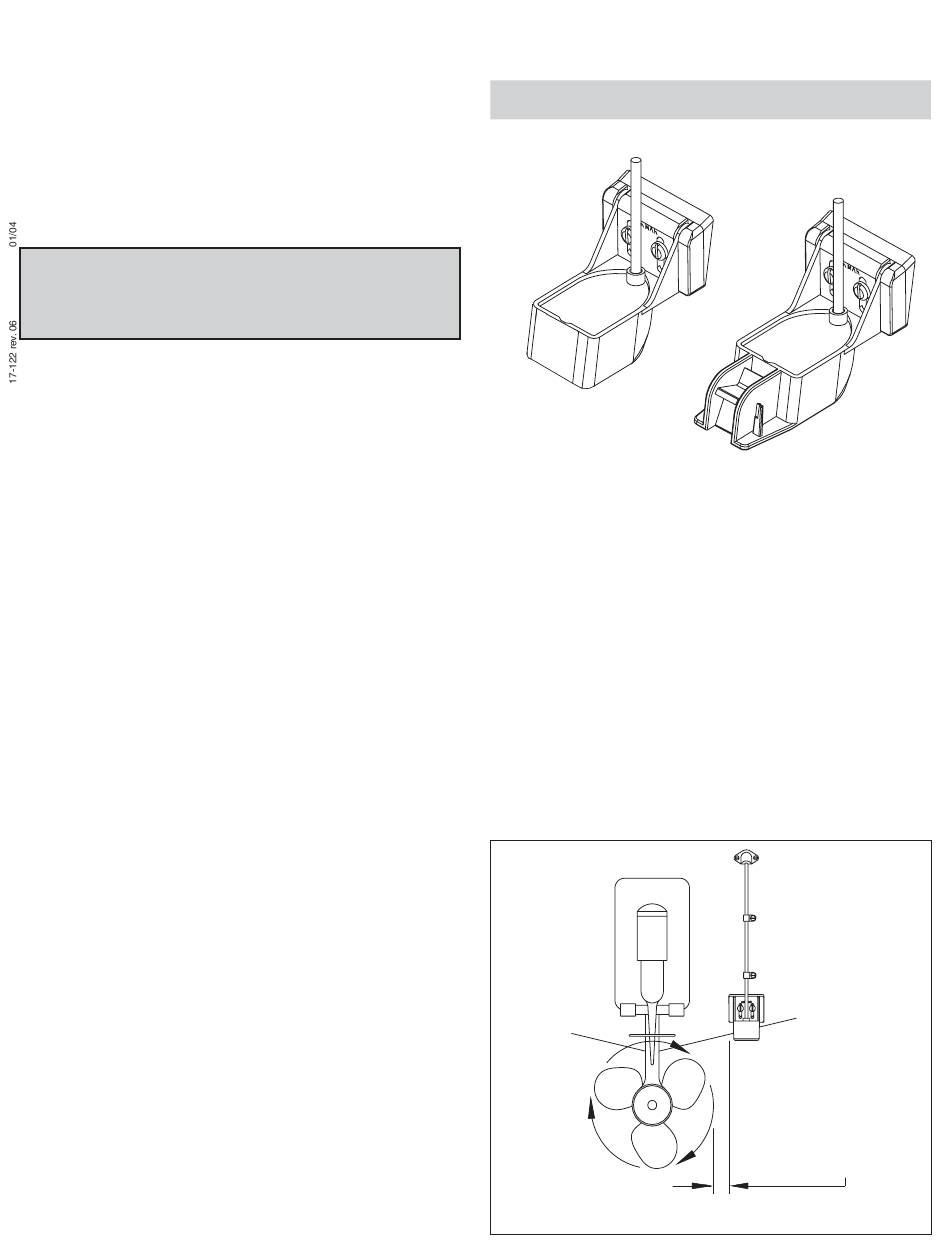

Figure 1. Mounting location on single drive boat
P32
AIRMAR
®
75mm (3")
minimum beyond
swing radius
