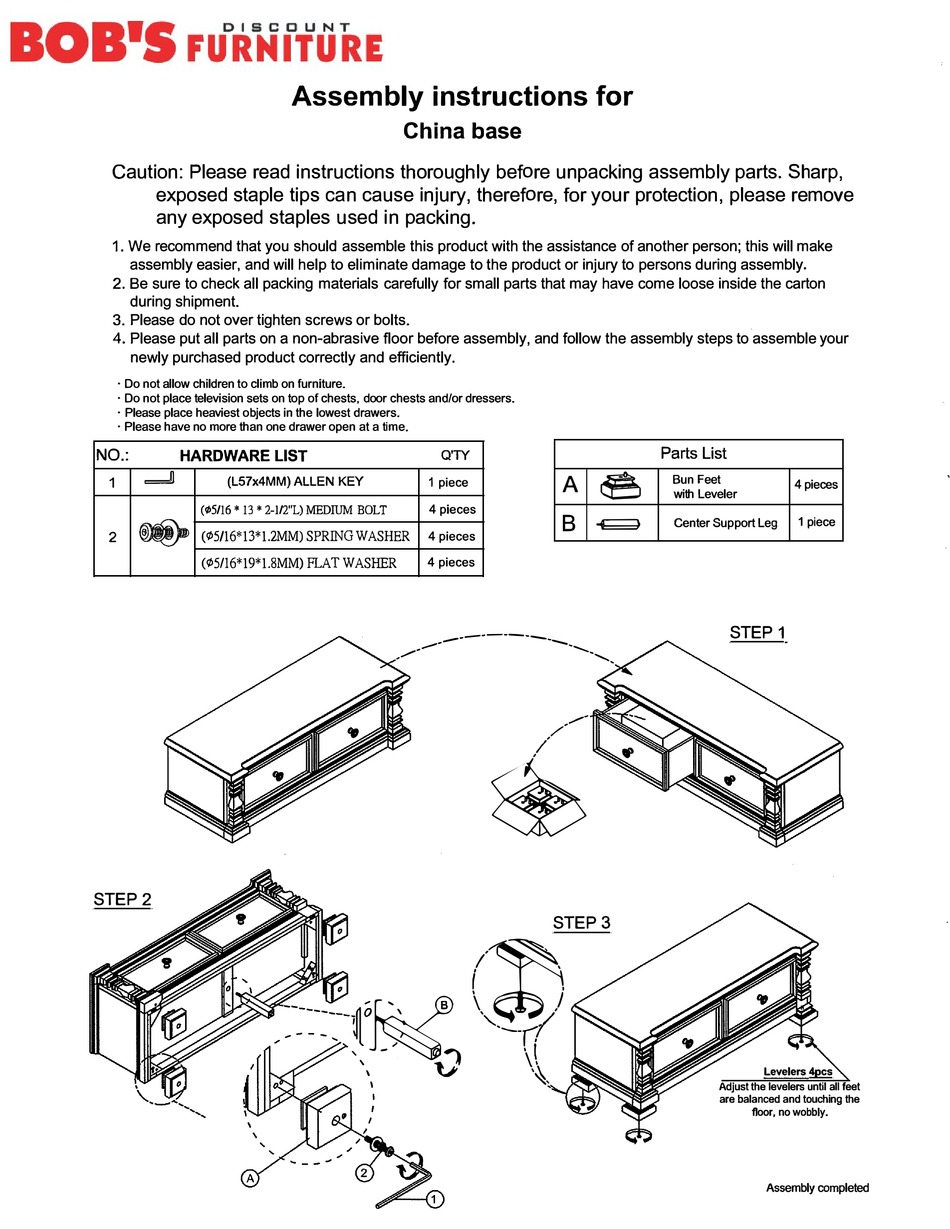

Bob's Discount Furniture China base Assembly Instructions

Caution: Please read instructions thoroughly bef o re unpacking assembly parts. Sharp,
exposed staple tips can cause injury, theref o re, for your protection, please remove
any exposed staples used in packing.
1. We recommend that you should assemble this product with the assistance of another person; this will make
assembly easier, and will help to eliminate damage to the product or injury to persons during assembly.
2. Be sure to check all packing materials carefully for small parts that may have come loose inside the carton
during shipment.
3. Please do not over tighten screws or bolts.
4. Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps to assemble your
newly purchased product correctly and efficiently.
· Do not allow children to climb on furniture.
· Do not place television sets on top of chests, door chests and/or dressers.
· Please place heaviest o bjects in the lowest drawers.
· Please have no more than one drawer open at a time.
NO.: HARDWARE LIST
==:Jl
(L57x4MM) ALLEN KEY
1
(¢5/16 * 13 * 2-l/2"L) MEDIUM BOLT
2
� (¢5/16*13*1.2MM) SPRING WASHER
(¢5/16*19*1.SMM) FLAT WASHER
STEP2
Assembly instructions for
China base
QTY
1 piece
4 pieces
4 pieces
4 pieces
--- - - - ------- --
---
-
----
0
- - - --;
- ---
�0�'
B
-
, \ - D
- -
.,,.. ....
I
e
A
B
�
- -
-
........_
-
----
�
STEP3
I
.
'
(
'
- �
· , _
J
\ :/
-- r r
,
, I - � � -
\,

Parts List

Bun Feet
4 pieces
with Leveler
1 piece
Center Support Leg

STEP 1

Levelers 4pcs
Adjust the levelers until all feet
are balanced and touching the
floor, no wobbly.
Assembly Completed
