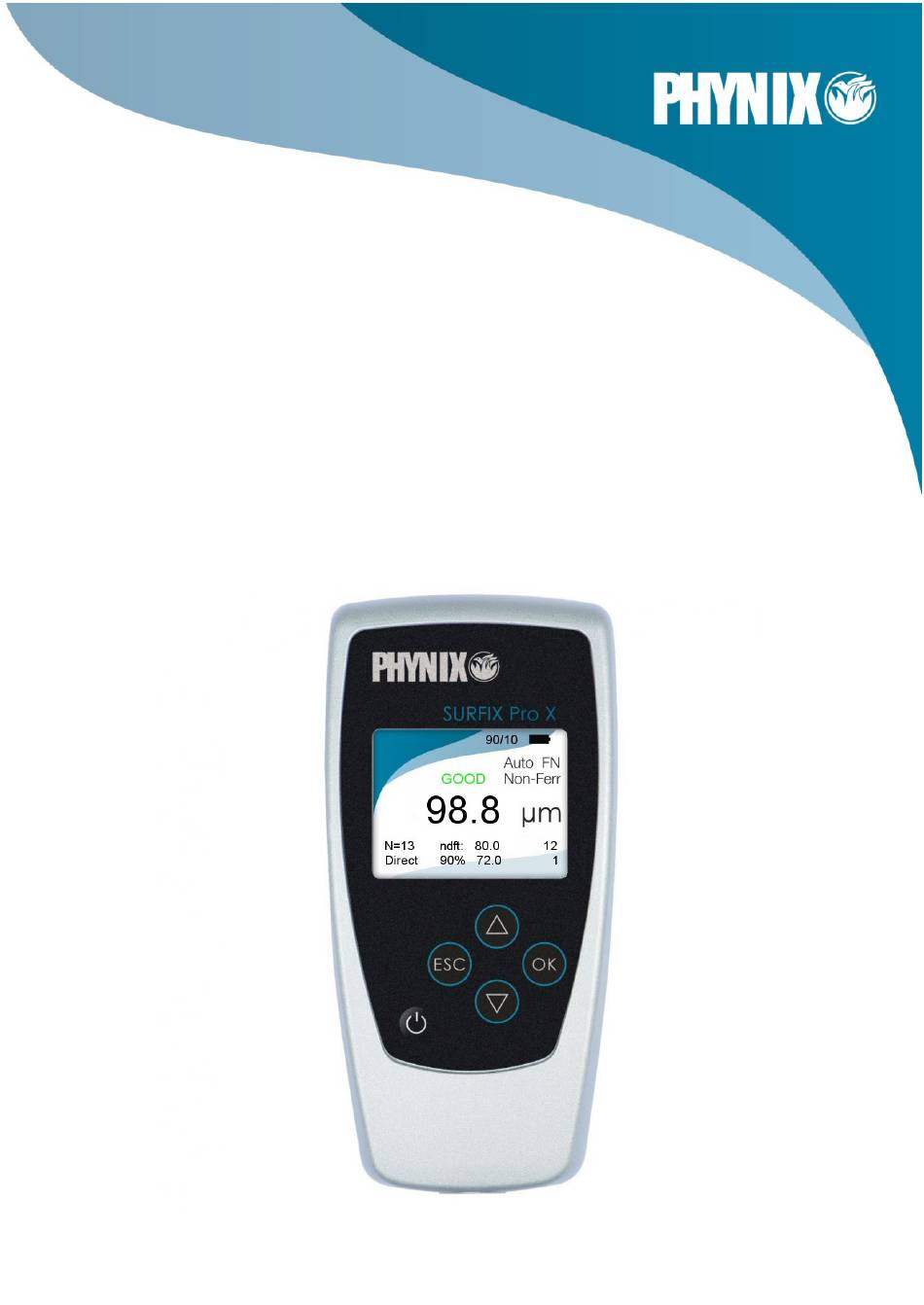

  • Page 1 Instruction Manual New Functions Surfix Pro X ®...

  • Page 3: Calibration (1St Menu Item)

    4. Calibration (1st menu item) 4.6 Combi-calibration This calibration procedure combines zero setting and foil calibration in one single command. When selected you are prompted to perform a zero calibration and, without any further user interaction, a foil calibration. This procedure is useful for users who often use both calibration methods.
  • Page 4 In this case and if deviations are small the accuracy could probably be increased by a function “set new probe zero”. This function determines a new zero value for ferrous or non-ferrous mode by positioning the probe on a (preferrable new) PHYNIX zero plate.

  • Page 5: Measuring Mode (3Rd Menu Item)

    Measuring mode (3rd menu item) 6.5 SSPC PA2 mode SSPC PA2 is a standard developed by the Society for Protective Coatings (SSPC) and describes a procedure for determining conformance to a specified coating dry film thickness on ferrous and non-ferrous metal substrates using nondestructive coating thickness gauges described in ASTM D 7091.
  • Page 6 Now a kind of block value statistics with fixed block size of 3 is established. After the first measurement the display shows the coating thickness value with large numerals; after the second measurement this value moves to the next line, indicated with “n1”. The second reading is shown as usual.

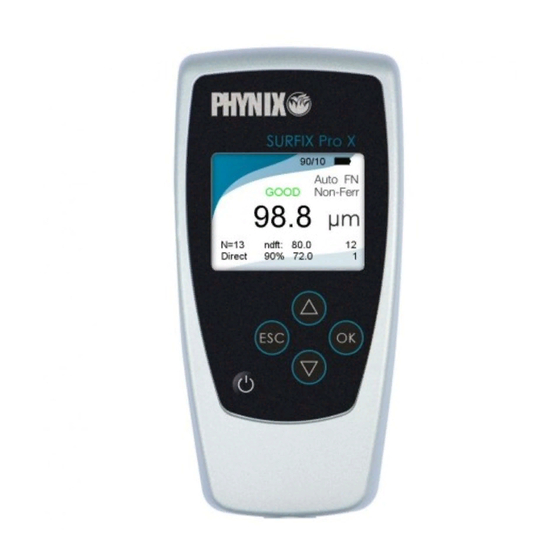

  • Page 7 The IMO PSPC 90/10 mode supports the user applying the 90/10 rule. It can be selected under the menu item “Measuring mode”. This mode is indicated by “90/10” in the display. In 90/10 mode the gauge determines after each measuremet whether both conditions of the rule are fulfilled.
  • Page 8 Now a kind of limit function is established. After each measurement the display shows the nominal dry film thickness (ndft) followed by the number of readings above this value; also the value “90 % of ndft” is shown, followed by the number of readings below this value.

  • Page 9: Deactivating The Keylock

    9. Options 9.7 Keylock This function can help to prevent unintentional operation. After activation all keys (except Power On ) are locked until the ESC key is pressed for 5 seconds. 9.7.1 Activating the Keylock Procedure: press this key twice; Options appears on the display press this key;...
  • Page 12 PHYNIX GmbH & Co. KG Siemensstr. 14 D-41469 Neuss Germany +49-2137-10978-0 +49-2137-10978-28 www.phynix.com info@phynix.de...
