03C441
Operation Manual
Operation Manual
Please fill out the Warranty with the installation shop name and date,
Note to
and give it to the customer.
Installer
Regularly inform the customer about parts which require replacement.

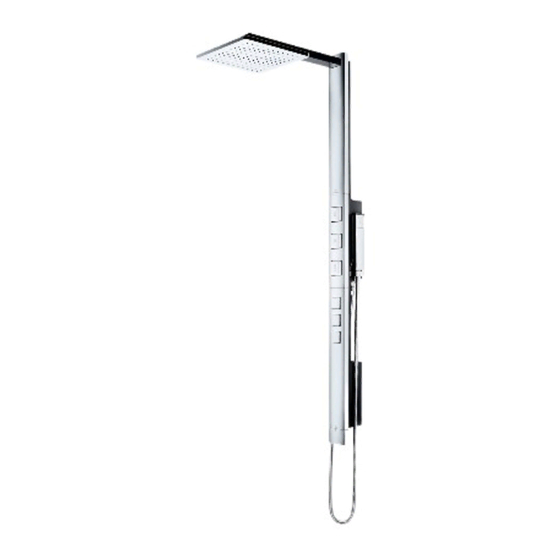

Thermostatic Shower Mixer
Model TMC95 V101
■Thank you for your recent purchase
of TOTO products. Please read the
manual carefully to ensure the safe
use of your product.
■Because this Operation Manual
includes the warranty, please
retain it for your records.
2007.4
Warranty Included
(Shower tower)
Important Safeguards...
1 〜 5
Setup Drawing.........
6
Before Installation
7
〜
10
How to use.........
〜
12
11
Daily maintenance... 13〜 14
Regular inspection...... 15
Replace parts regularly...... 16
TroubleShooting ......
17〜 18
After service......
19〜 20
Warranty
Warranty........................
Warranty........................22
........................22
Contact............... Back cover
Contact
Contact...............
............... Back cover
Back cover
22
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Toto TMC95 V101
Summary of Contents for Toto TMC95 V101
- Page 1 03C441 2007.4 Operation Manual Operation Manual Warranty Included Please fill out the Warranty with the installation shop name and date, Note to and give it to the customer. Installer Regularly inform the customer about parts which require replacement. TOTO LTD. Head Office 1-1, Nakashima 2-chome, Kokurakita-ku, Kitakyusyu 802-8601, Japan Phone:+81-93-951-2366/Fax:+81-93-922-6789 Thermostatic Shower Mixer TOTO LTD. Tokyo Branch 1-28, Toranomon 1-chome, Minato-ku Tokyo 105-0001, Japan Phone:+81-3-3595-9323/Fax:+81-3-3595-9384 (Shower tower) Model TMC95 V101 TOTO KIKI(H.K.)LTD. RM.1101, 11/F No.3 Lockhart Rd. Wanchai, Hong Kong Phone: +852-2861-3177/Fax: +852-2861-3563 Important Safeguards… 1 〜 5 TOTO LTD. SINGAPORE BRANCH 221 HENDERSON ROAD #08-13 HENDERSON BUILDING, SINGAPORE 159557 Setup Drawing……… Phone: +65-6376-0045/Fax:+ 65-6376-0049 TOTO VIETNAM CO., LTD. Hanoi Branch unit 1209, Daeha Business Center 360 Kim Ma St. Da Binh Hanoi Before Installation 〜 Phone:+84-4-771-4354/Fax:+84-4-771-4355 ...
- Page 2 Important Safeguards (For your safety, please follow the instructions below) Read the Important Safeguards section thoroughly before installing the product. Warning ●After you read this instruction manual, keep it where it can be easily accessible. ●The following symbols indicate safe and proper use of the product. Do not allow children to use the product Failure to observe them may result in injury or property damage. unattended. The symbols and their meaning are as follows: Meaning Sign Scalding or other injuries may occur. Do Not! Ignoring these symbols may result in death or Warning serious injury Do not disassemble or modify the item Ignoring this symbol may result in death or in any way not decribed in this manual. Caution property damage. If the system is broken, property damage, scalding and injuries are likely to occur due to water Do not leakage. disassemble ■The following table classifies the contents so as to protect you. Do not touch the bottom of the Absolutely Do NOT. product or the installation leg on the hot Do not dissemble! side with your bare hand Mandatory! Do not You may be burned due to high temperatures on The action must be performed as described. the hot side.
- Page 3 Warning Warning When cleaning the filter, shut off the Before use, set the temperature handles stop valve or the main valve first and according to the temperatures they Stop valve open the cap slowly. indicate. Filter at cold side If hot water is used unintentionally, you may Check that the filters on the lower side bescalded.
- Page 4 Setup Drawing C a u t i o n The shower tower should not be used as a handrail or be used to hang objects, do not attempt to hang from it. If you fall off, or it comes loose, you may be harmed. This may result in malfunctions or leakage. Do not use where it is likely to freeze If it is damaged, property damage may occur due to leakage. Overhead shower Damage by freezing is not covered in the warranty. Freezing When freezing may occur, ensure that the temperature around the faucet is above freezing. Hand shower ON/OFF button for Avoid collisions with the the shower head overhead shower or allowing it to fall to the ground. ON/OFF button Stop valve for hand shower If the plated surface is cut, you may be hurt. for cold side ON/OFF button Do Not! If the plated surface is cut, you should replace it for body shower with a new shower head. Filter (With check valve) The shower head should not be subjected ...
- Page 5 Before Using Check the outflow temperature Set the temperature handle If the temperature handle is different from the factory setting (cold/hot outflow ※To calibrate when the outflow temperature is not correctly indicated: temperature, pressure), the outflow temperature will not be what is indicated. When this happens, check on the following key points. Flow lever 1.Turn the flow lever to the 1. Set temperature on the hot highest position. water device. Set the temperature on the hot ON/OFF button water device 10° C higher that for hand shower the outflow temperature. 2. Push the ON/OFF button of E.g. if the outflow is , set 40° C the temperature on the hot Push the hand shower. water device to 50° C or higher. Mark To prevent scalding due to Water should come out of malfunction, the recommended the hand shower. hot water temperature is ...
- Page 6 Adjust flow rate 5. Re-install the temperature You can adjust flow rate by the stop valve as follows. handle. Flow lever 1. Turn the temperature handle Set the scale to "40" with the Ring to the end of cold side and mark and re-attach the push ON/OFF button on the Temperature temperature handle, hand shower. handle then fix the small screw. Mark Small screw Cold side 2. Adjust flow rate at 15L/min Push (It takes 10seconds to fill the washbowl) with the stop Hand shower valve on cold side. Temperature handle 6. Make sure the water outflow Hand shower ...
- Page 7 How to use Using cold/hot water How to adjust the temperature Turn the temperature Overhead shower handle Push ON/OFF button for the Overhead shower It is normally set to "40" , set it to overhead shower your required temperature. Hot side Water (cold/hot) will come out. For safety reasons, the product is built Push it again, the water will stop. with a function that prevents flow of overly Hand shower Hand shower hot water, (When set correctly, the Cold side maximum temperature is about 45° C) Push ON/OFF button for the Mark hand shower To prevent scalding due to malfunction Temperature handle Water (cold/hot) will come out. Body shower the recommended outflow temperature Push it again, the water will stop. is 60℃. Body shower Push ON/OFF button for the body shower How to adjust flow rate Water (cold/hot) will come out. Push it again, the water will stop. Turn the flow lever.
- Page 8 Daily maintenance To take full advantage of the product, and to keep things sanitary, Cleaning with a cloth and a tooth-brush you should perform daily maintenance. ●For minor cleaning Maintaining the filter Wipe dirt away with a damp cloth. Hex. wrench 1. Unscrew the screws (3 Critical (small) ●For more extensive cleaning. locations) with a hexagon wrench, and remove the Wipe with a cloth using a nuetral detergent Cover Screw then rinse with water. cover, use the ON/OFF tool to shut off the stop valve Stop valve Shut for cold side on the cold/hot side. ON/OFF I n case of dirt for detail like ON/OFF buttons. ● tool Wipe dirt away with a tooth-brush 2. Insert the ON/OFF tool into ...
- Page 9 If the system is damed by deterioration or (2pieces for may result in unexpected accidents wear, property damage or injuries are cold/hot side) likely to occur due to water leakage. like leakage. No leakage! In case of leakage, shut off the stop valve and main valve (refer to P.17), request To replace the check valve, request service service from the installation shop, distributor from the installation shop, distributor or TOTO or TOTO Maintenance. Maintenance. When requesting service from TOTO Looseness in the main body (twice a year) Maintenance, you may be charged for Cover technical, part, and shipping costs. Check for looseness in the main body If you use the product while the main body No is loose, it will cause leakage due to the load looseness! on the pipe. If loose, request service from Screws the installation shop, distributor or TOTO ...
- Page 10 Troubleshooting To shut water off in an emergency ●The following situations are not malfunctions. Before requesting service, check the following list, if the problem is not resolved, request service from the installation shop, distributor, or TOTO. For details see the back cover. In case water flows without stopping due to pipe leakage, follow the instructions in the figure below to shut off the Before requesting service stop valve or main valve. Problem Inspection Solution Reference Is the ON/OFF button in the stop Push the ON/OFF P.12 position? button again. Water flow Hex. wrench Use a hexagon wrench to does not The shower may drip, because (small) unscrew the screws (3 stop water left in the pipe is flowing out. − P.12 Cover This is not a problem. Screw locations), and remove the cover, use a flathead Use stop valve to Is the stop valve fully open? P.13 adjust the flow. screwdriver to shut off the ...
- Page 11 After-Sale Service Age and use Replacement of parts subjected to wear or degradation 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 7 7 7 8 8 8 9 9 9 ●Wear or degradation of valve or packing causes water leak. In such a case, the defective parts must be replaced. Daily maintenance and checking by user ●On such worn or degraded parts, please request for the replacement to the installation firm, the outlet store or any of the offices listed on the back cover. Consideration Replacement of consumable parts for When you request for a repair, replacement Replacement of worn or degraded parts Replacement of worn or degraded parts Replacement of worn or degraded parts (Please request for replacement to the installation firm or any ...
- Page 12 MEMO Faucet Guarantee Certificate This guarantee certificate is to guarantee a free repair of faucet according to the contents described herein. In the event of defect or failure occurred within the period shown below from the date of installation, users are requested to contact any of the offices listed in the back cover for repair, showing this guarantee certificate. Name Thermostatic Shower Mixer Name of (Shower tower) commodity User Address Part No. TMC95 V101 Installation firm Guarantee Two (2) years from the date Sealed period of installation/purchase Outlet Phone: − store Bath room of Application Date of installation/Date of purchase ordinary household ★Notes for users When receiving this guarantee certificate, please make sure that the date of installation, the name of installation firm (or outlet store) and the seal of installation technician are filled in. The guarantee certificate is not issued again. Please keep the certificate under due care in order not to loose it. In spite of being in the guarantee period, the repair is to be fee-based in the following cases. (1) Defect caused by use of the commodity out of the application specified above (2) Defect attributable to nonfulfillment of correct use or proper maintenance (3) Defect attributable to the installation not complying with our installation manual or disassembly by a nonexpert firm (4) Defect of commodity attributable to the deformation of building structure (5) Defect on appearance arising out of secular change such as decoloration or wear due to use ...
