Installation and Owner's Manual
Manual de Instrucciones y del Propietario
Manuel d'Installation et d'Utilisation
Diverter Valve Trim
Acabado De Diversora
Garniture De Dérivation
Warranty Registration and Inquiry
For product warranty registration, TOTO U.S.A. Inc. recommends online warranty registration. Please visit
our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please con-
tact TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260
(888) 295-8134 or (678) 466-1300 when calling from outside of U.S.A.

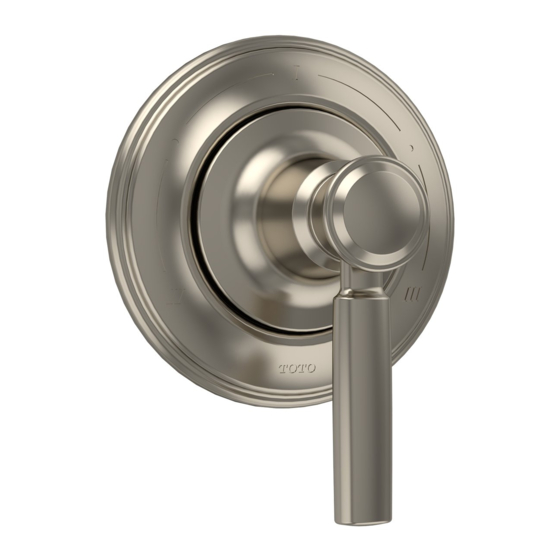

Keane™
TS211X
Keane™
TS211XW
Advertisement
Table of Contents
Related Manuals for Toto Keane TS211X
Summary of Contents for Toto Keane TS211X
- Page 1 TS211XW Warranty Registration and Inquiry For product warranty registration, TOTO U.S.A. Inc. recommends online warranty registration. Please visit our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please con- tact TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260...
- Page 2 Rough-In Dimensions ..................17 THANKS FOR CHOOSING TOTO! The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.
- Page 3 INCLUDED PARTS Check to make sure that all these parts were included in your packaging: Handle Assembly* Escutcheon* Collar Screw and Lock Washer Threaded Extension Adapter * Actual product may vary in appearance depending on the model. INSTALLATION PROCEDURE 2-1/2” [65mm] MIN. 2-1/2"...
- Page 4 Installation Procedure (continued) 3. Use an adjustable wrench to Valve* tighten the threaded extension into the valve. Threaded Extension 4. Secure adapter to the valve with the included screw and lock washer. Adapter Lock Washer Screw 5. Turn the adapter manually until it “clicks”...
- Page 5 Installation Procedure (continued) 6. Hold the escutcheon against the wall with the TOTO logo at the bottom. Tighten the collar onto the threaded extension with an adjustable wrench to secure. Collar Escutcheon 7. Slide handle assembly onto the adapter, and tighten onto the collar by rotating handle base.
- Page 6 INC., 1155 Southern Road, Morrow, GA 30260 (888) 295 8134 or (678) 466-1300, if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery.
