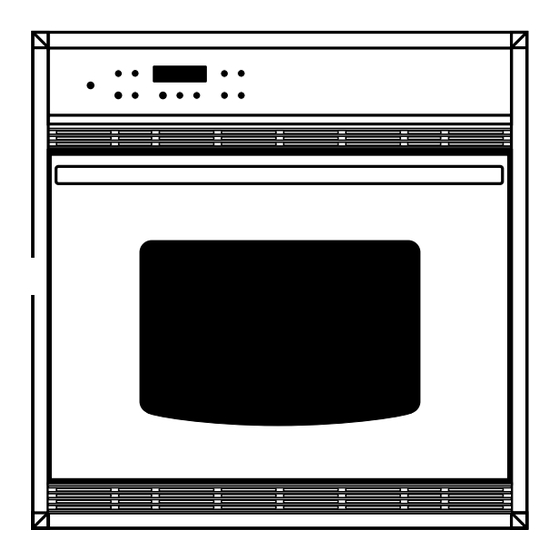

Frigidaire FEB30S5A Factory Parts Catalog

Electric wall oven
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

PRODUCT NO.
BASE MODEL NO.
FEB30S5ABA
FEB30S5A
FEB30S5ASA
FEB30S5A
WIRING DIAGRAM - # 318046208
OWNER'S GUIDE - # 318200919
TIMER INSTRUCTION SHEET - # 318200181
INSTALLATION INSTRUCTIONS - # 318201507
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. BOX 212378, Augusta, GA 30917
FACTORY PARTS CATALOG
FACTORY NO.
COLOR
38254331F1061
black
38254331F1011
white
Publication No.
5995363230
020104
-EN/SERVICE /ECL
377
RANGE
MARKET
North America
North America
ELECTRIC
WALL OVEN
Model No.
FEB30S5A
©2002 White Consolidated Industries, Inc.
All rights reserved
