Summary of Contents for AEG 33620 DK-M

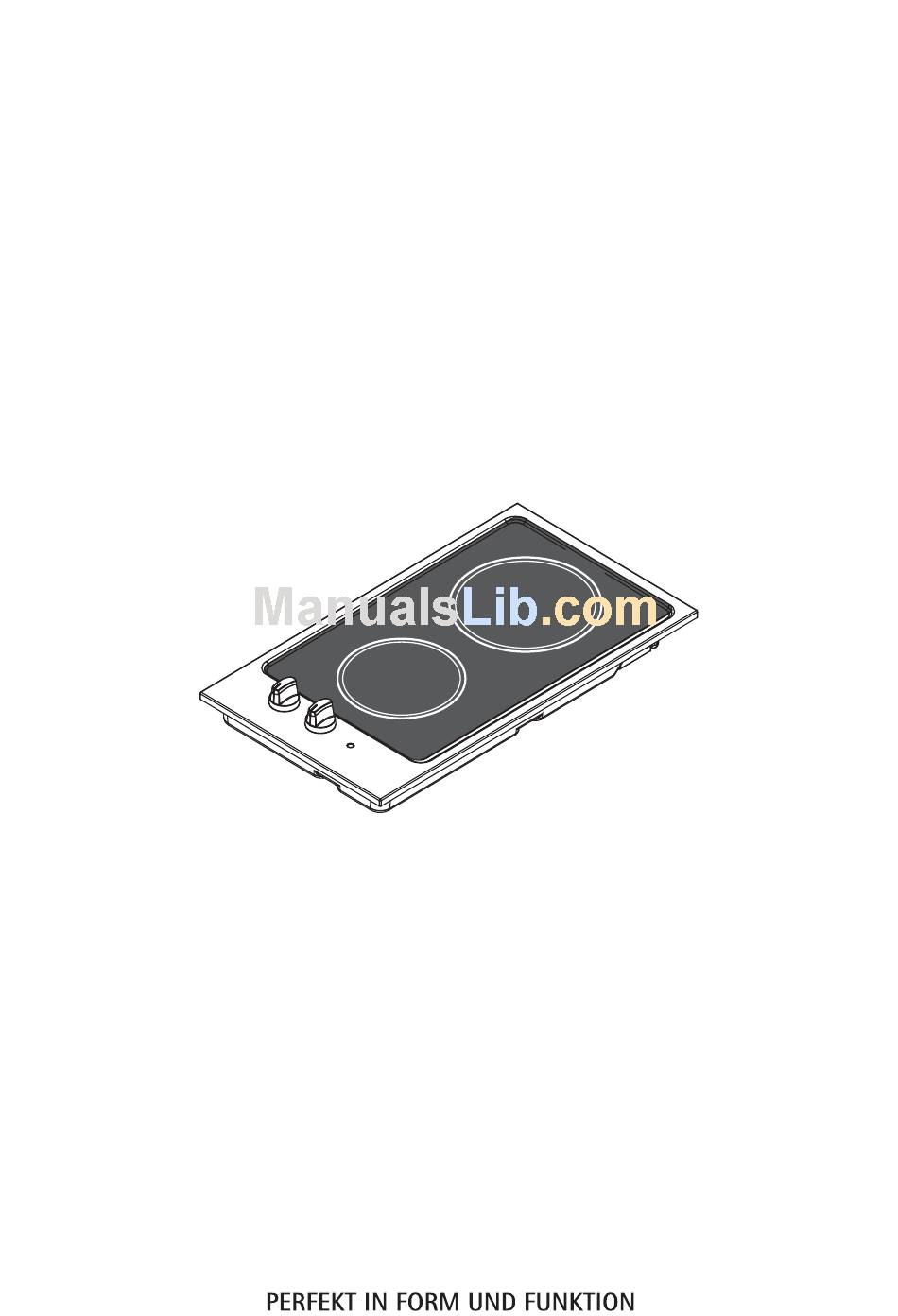

- Page 1 33620 DK-M Electric Ceramic Hob Operating Instructions...
- Page 3 Congratulations from AEG Dear Customer, Congratulations with your new Hob. It is important that you become familiar with the functions and features of the Hob. You should therefore read these operating instructions as they will help you get the most out of your new Hob.
- Page 4 Table of contents Contents For the user For the installer Installation Electrical connection Building in dimensions Technical Data How to read the operating instructions: 1... 2...Step by step Safety information Page no Hint and tips Environmental information...
-
Page 5: Safety Information
Ensure that all the control knobs are in the OFF position when not in use. Do not use the hob if it is damaged in any way, contact your local AEG Service Centre. Never use plastic or aluminium dishes on the hob. -
Page 6: Description Of The Product
Description of the product Residual heat indicator Control knobs Front cooking zone Pilot light Rear cooking zone... - Page 7 Represents maximum heat. “0” Represents “OFF”. Do not use the ceramic hob if the glass is damaged. If a fault or crack appears during cooking disconnect the hob immediately and contact AEG Service. How to use Control knobs Pilot light...
-
Page 8: Pilot Light
Pilot light Pilot light is activated when either of the zones are turned on, and will remain on until the cooking zones are switched off. Residual-Heat indicator Each plate has a residual heat indicator which remains on as long as the temperature of the cooking zone exceeds 80˚C, even if the cooking zone is switched off. -
Page 9: Cooking Zones
Advice and hints for using the cooking zones If you use the advice below you will save energy and make your cleaning tasks easier. Adjust the cooking zones correctly. Select the highest setting for the cooking zones until the food is brought to the boil. - Page 10 Check whether your cooking utensils has level bases by placing the item in question upside down on a work top and positioning a ruler on the base. A curved base, both inwards and outwards, will prolong the cooking time and increase the energy consumption.
-
Page 11: Cleaning And Maintenance Of
Cleaning and maintenance of For reasons of hygiene and safety, the cooking zones must be kept clean. Grease stains and spilled food generate smoke when heated, and can even cause fire. Never use metal wool, metal sponges or other abrasive cleaning agents. The ceramic glass hob Immediately scrape off stains caused by food which has boiled over using... - Page 12 Tips on the use of the ceramic hob unit Do not slide saucepans across the surface of the hob - always lift the pan when placing it on, or removing it from the ceramic surface. Wipe the bottom surface of the pots and pans with a clean dry cloth before placing them on the ceramic surface.
- Page 13 The decorative pattern on the ceramic surface can become scratched and marred with use, depending upon maintenance, but does not adversely affect performance. Such blemishes are not covered by the warranty and do not affect the operation of the hob. Spills and melts must be removed immediately, while the surface is still warm, using the scraper supplied with...
- Page 14 Warnings about electrical connection This hob is designed to be connected to a 230V single-phase 50 Hz AC 220 V, 60 Hz electrical supply.
- Page 15 Electrical connection ° Replacement of connection cable...
- Page 16 Warnings about building in the hob °...
- Page 17 Building in Dimensions Cut Out Size...
- Page 18 Securing the hob into the cut out...
-
Page 19: Technical Data
Technical data 1200 2900 3000 230 V, 50 Hz... - Page 20 Servicing AEG Hausgeräte GmbH © Copyright by AEG Sie können Ersatzteile, Zubehör und Pflegemittel on-line bestellen unter http:www.aeg-electrolux.com 35688-6104 05/04...
