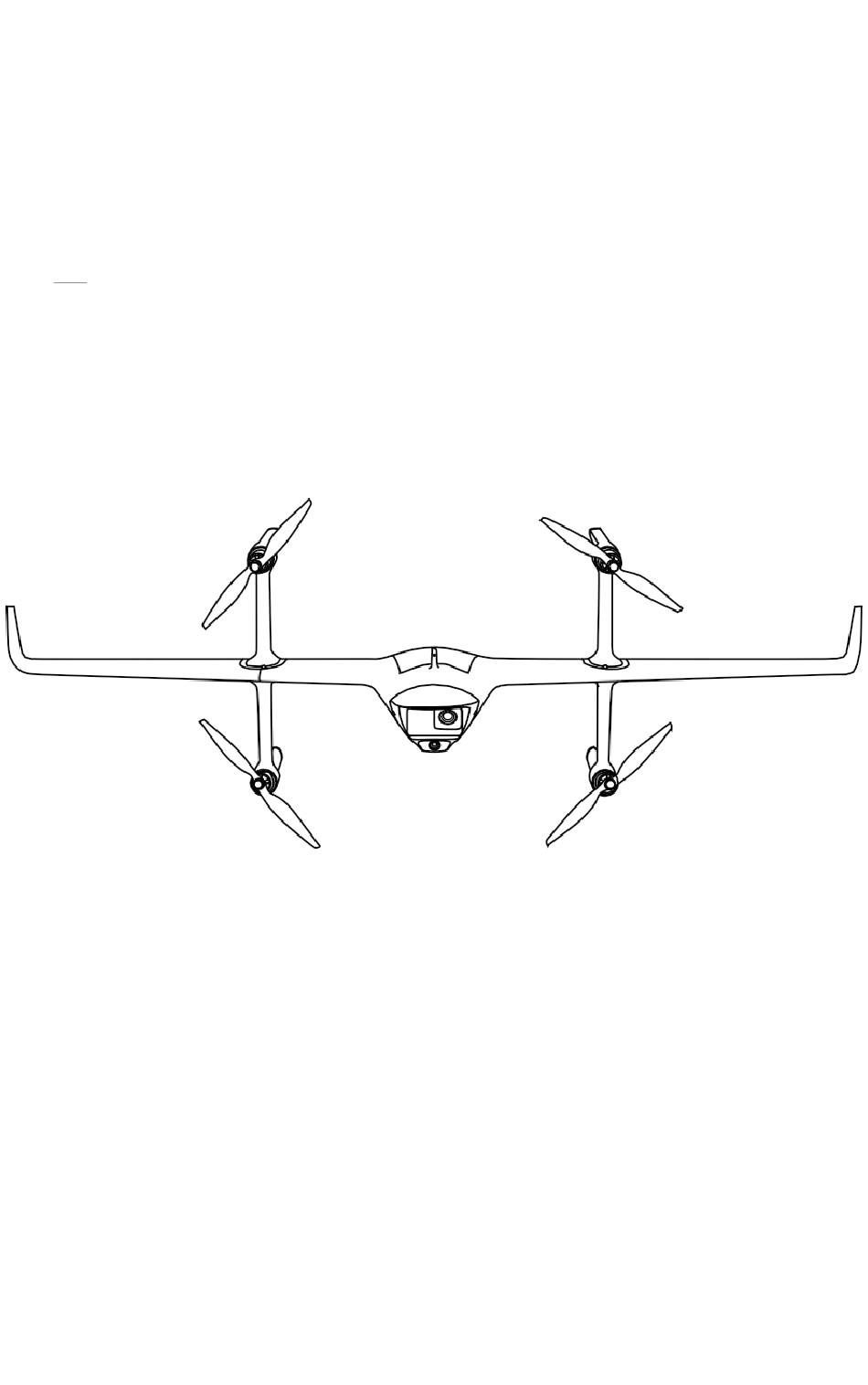

- Page 1 H-Wing PRO 快速入门指南 Quick Start Guide V2.1 2021.6...
- Page 2 充电 /Charging the Battery 请用 type-C 数据线链接您的充电头给遥控器充电。 Please connect your charger with a type-C data cable to charge the remote control. 组装飞行器 /Assemble the drone...
- Page 3 安装螺旋桨 /Attaching the Propellers A- 逆时针拧紧 B- 顺时针拧紧 A-Tightencounterclockwise. B-Tightenclockwise. H-wing 机头方向 Aircraft head direction 黑桨帽 白桨帽 Black nut propeller White nut propeller 无标记 标记 Unmarked Marked 开启与关闭遥控器，安装飞行器电池 / Open and close the remote control,Install the battery 长按开机 / 关机。 Long press to start/shut down.
- Page 4 摇杆操控飞行器 / Controlling the drone 美国手旋翼模式 美国手固定翼模式 American hand rotor mode American hand fixed wing model 上升 / 下降 左转 / 右转 上升 / 下降 向左 / 向右 加速 / 减速 无 下降 / 爬升 左横滚 / 右横滚 Up/Down Turn Left/Right Forward/ Turn Left/ Speed Up/...
- Page 5 旋翼切换固定翼模式 / Rotor switch fixed wing mode Altitude Rotor Locked 20 connected 100% 0.5 1 17 .4V 20 100% Altitude Rotor Locked connect ed 0.51 17.4V Airspeed0.0m/s Flying speed 0.0m/s Altitude 0.0m distance 0.0m/sFlight time00:00 旋翼模式下操作飞机升到 30 米高度即可按遥控A 按键切换为固定翼模式。 升高飞机 水平地面...
- Page 6 FCC Warning 15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
