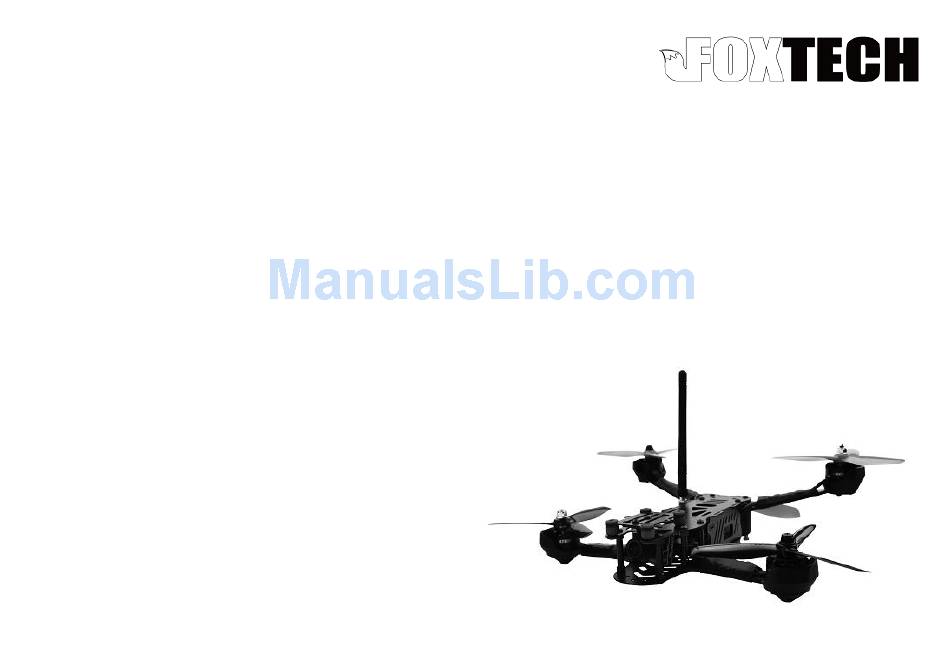

SCREAMER 250
USER MANUAL
SPECIFICATIONS
-Wheel base: 250mm
-Frame weight: 260g
-Flying weight: 610g (4S 1500mah lipo included）
-Flight time: 3-5 mins(Flight time reduces by using rear motor)
-Radio system: 6CH or more
-Flight controller: Naze32 6Dof /SP F3
-Battery: 4S 1500mah HV-Lipo with XT60 connector
-Max speed: >130km/h
R
ACE
1
P
ENTACOPTER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCREAMER 250 and is the answer not in the manual?

Questions and answers

Related Manuals for Foxtech SCREAMER 250

Summary of Contents for Foxtech SCREAMER 250

  • Page 1 SCREAMER 250 ENTACOPTER USER MANUAL SPECIFICATIONS -Wheel base: 250mm -Frame weight: 260g -Flying weight: 610g (4S 1500mah lipo included） -Flight time: 3-5 mins(Flight time reduces by using rear motor) -Radio system: 6CH or more -Flight controller: Naze32 6Dof /SP F3 -Battery: 4S 1500mah HV-Lipo with XT60 connector -Max speed: >130km/h...

  • Page 2: Important Notes

    IMPORTANT NOTES -Screamer 250 is not a toy, it flies at a very high speed hence can be very dangerous,so please keep it away from children and don’t fly over (crowded) people to minimize the possibility of accidents or injury to property or persons.

  • Page 3: Radio Setup

    RADIO SETUP The Sbus/PPM connection requires a radio receiver with both Sbus/PPM and PWM output same time, and the booster ESC must to be plugged in radio receiver directly, and assign a transmitter CH to 'Slide level' to control the booster power. POWER HUB WIRING MOTOR/PROPELLER ROTATION DIRECTION...
  • Page 4 SP F3 FLIGHT CONTROLLER WIRING NAZE32 6DOF FLIGHT CONTROLLER WIRING...
  • Page 5 Self-locking Nut M5 Button Head Bolt Button Head Bolt M3*10 M3*40 Self-locking Nut M5 Alum Standoff M3*27 Socket Head Bolt M3*30 Self-locking Nut M5 Self-locking Nut M5 Nylon nut M3 Adjusting Shims Alum Standoff 3*5*0.1 M3*30 Nylon Standoff M3*12 Button Head Bolt M3*5 Button Head Bolt Self-locking Nut M5...
  • Page 6 FS009 FS010 FS011 FS012 FS004 FS013 FS024 FS014 FS005 FS004 FS006 FS007 FS023 FS005 FS004 FS008 FS003 FS020 FS015(016) FS025 FS003 FS006 FS022 FS007 FS005 FS002 FS021 FS019 FS017 FS017 FS001 FS004 FS005 FS018 FS024 FS002 FS001...

  • Page 7: Part List

    Button Head Bolt M3*10 10pcs FS002 Front Frame Arm 2pcs FS027 Button Head Bolt M3*14 10pcs FS003 Brushless Motor Foxtech 2205 kv2300 CCW FS028 Button Head Bolt M3*40 10pcs FS004 Propeller 5045 3-blade propeller(Includes CWx2 & CCWx2) FS029 Button Head Bolt M3*5 10pcs...
  • Page 8 MEMO Foxtech Corporation July, 2016 Version 1.1...
