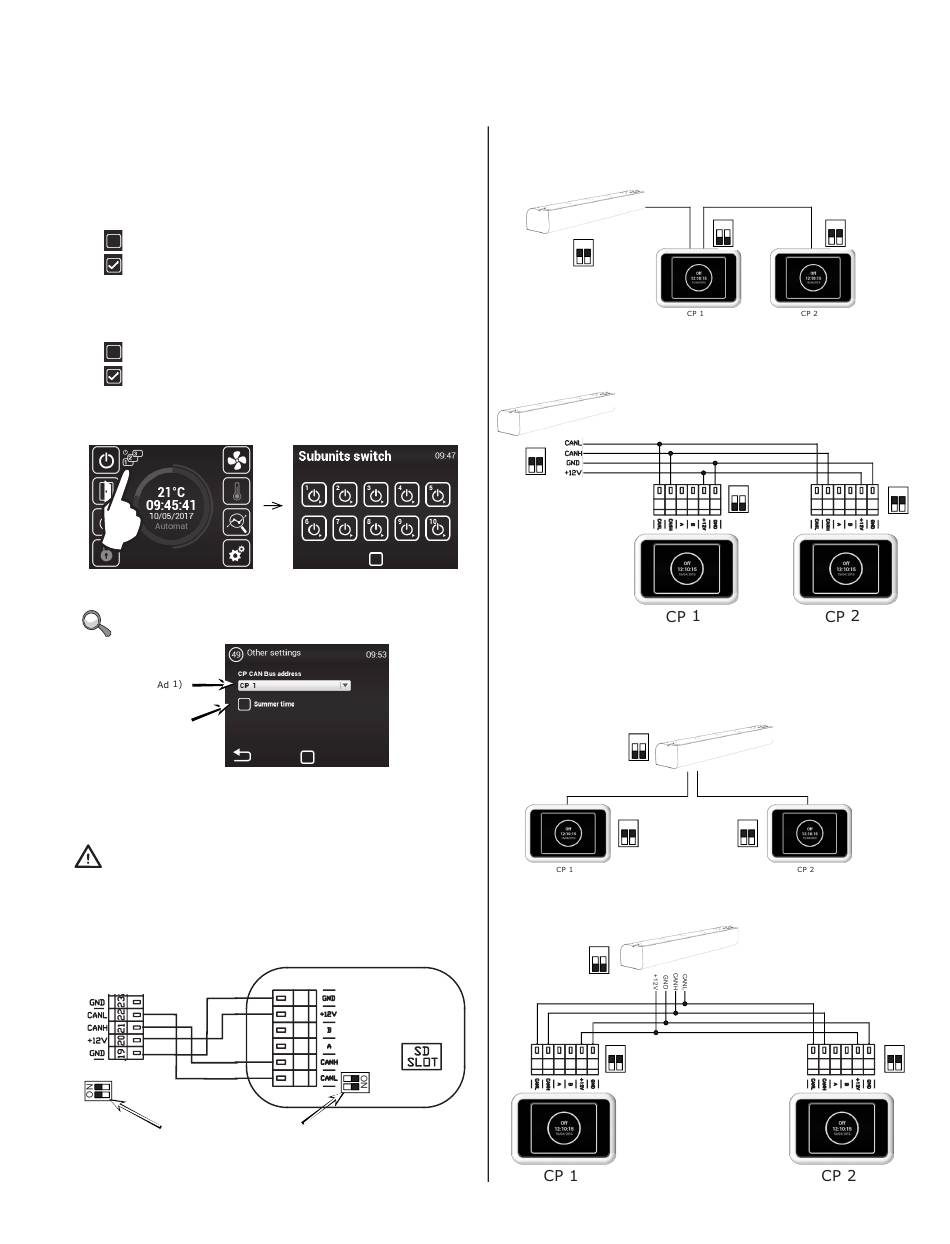

2VV ESSENSSE NEO COMFORT Installation And Operation Instractions page 12

Ad 1) – Use one door contact as main. Its status will be sent to the
SLAVE regulators and it will no longer be necessary to connect it to each
regulator, if required.
Not allowed = the door contact will not transmit to the SLAVE regulator from the MASTER
Allowed = the door contact will transmit to the SLAVE regulator from the MASTER
Ad 2) – Activates in the main screen the icon to turn
each SLAVE regulator ON/OFF If inactive, all the SLAVE
regulators will be turned on or off simultaneously
Not allowed = The SLAVE regulators are turned on/off simultaneously
Allowed = The SLAVE regulators can be turned on/off individually
form the main screen
MENU - OTHER SETTINGS
Use this menu to set the remaining parameters
Enable/disable automatic
switch of
summer/winter time
Ad 1) – Sets the CAN address of the control panel so up to 2 control panels
may be connected to the MASTER regulator
Options: CP 1 = control panel's address is 1
CP 2 = control panel's address is 2
ATTENTION!
Each panel must have its own address,
otherwise it may result in the malfunction of the regulator.
Terminals must be set if multiple panels are to be connected. They are found in the main electronics and
the controller:
Terminal settings
Example of controller connection – Option 1:
12
All manuals and user guides at all-guides.com
ON
Electric connection – Option 1:
ON
Electric connection – Option 2:
OFF
ON
Electric connection – Option 2:
OFF
ON
OFF ON
OFF
ON
ON
ON
