Tighten all wheel bolts to 120nm after the first 2 hours of driving.
Transport
* Only use stable loading surfaces with sufficient loading capacity (see section 2.2).
* Secure the MULTI-MOVER 5XL against tilting or sliding.
* It is prohibited to;
-
get under the MULTI-MOVER 5XL while lifting
-
remain within the tilting range of the MULTI-MOVER 5XL during unloading

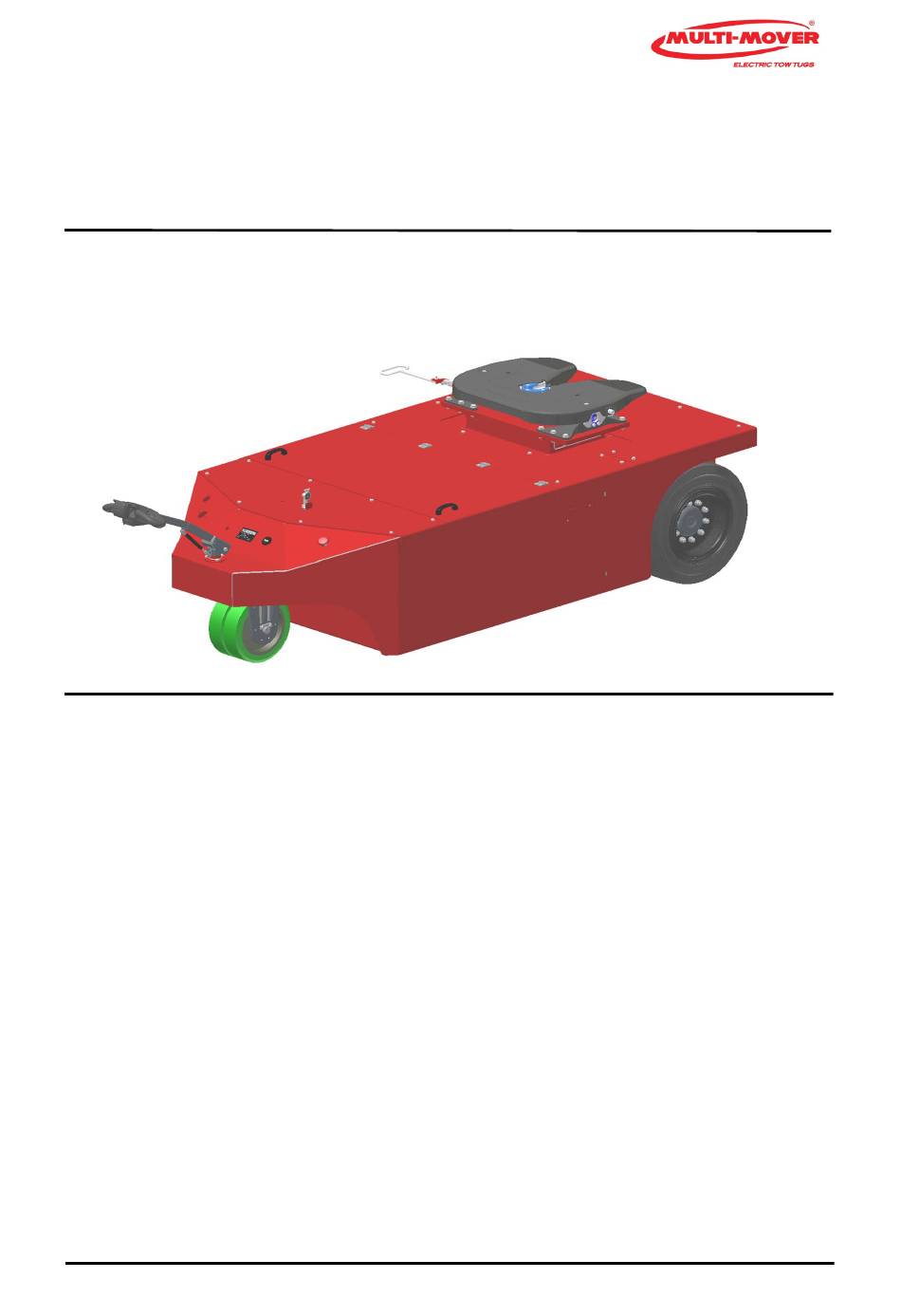

MULTI-MOVER 5XL
USER MANUAL and PARTS LIST
MULTI-MOVER 5XL
Trailer Mover
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5XL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Multi-Mover 5XL

Summary of Contents for Multi-Mover 5XL

  • Page 1 * Only use stable loading surfaces with sufficient loading capacity (see section 2.2). * Secure the MULTI-MOVER 5XL against tilting or sliding. * It is prohibited to; get under the MULTI-MOVER 5XL while lifting remain within the tilting range of the MULTI-MOVER 5XL during unloading MULTI-MOVER 5XL...

  • Page 2: Table Of Contents

    Taking out of operation Annual maintenance Chapter 7 ENVIRONMENT Chapter 8 FAILURES Chapter 9 PARTS Chapter 10 DECLARATION OF CONFORMITY Multi-Mover Europe B.V. www.multi-mover.eu T +31 24 744 00 70 F +31 24 890 17 90 T +49 2842 909 2005 MULTI-MOVER 5XL...

  • Page 3: Introduction / Warranty / Definitions / Safety Symbols

    The user manual should be made available to the user of the Multi-Mover 5XL and must be present at the Multi-Mover 5XL when it is being used. The user manual must have been read by anyone working with/at the Multi-Mover, and the instructions must be observed.

  • Page 4: Chapter 2 Technical Description

    Safety symbols On various places on the Multi-Mover 5XL you will find standardised safety symbol stickers as displayed to the right. The upper part warns against a general or particular hazard. The lower part indicates what type of hazard is being warned against and will explain what you must do.

  • Page 5: Packaging, Loading / Unloading, Towing, Recycling

    Avoid injury and damage as a result of incorrect placement of the lift truck's lift forks. Loading and unloading If the Multi-Mover 5XL has to be moved by means of a lift truck, the lift forks must be placed at the heaviest part at the rear of the Multi-Mover 5XL, between the 2 large wheels.

  • Page 6: Chapter 3 Safety Regulations

    Never drive onto a slope at an angle or crosswise. Only ever drive on and off a slope at a right angle. The Multi-Mover 5XL with trailer(s) may also tip over if the bends are taken at a speed that is too high.
  • Page 7 Make sure the trailer(s) has/have been loaded evenly and safely. 3.11 Caution! Wear clothing that allows you to move freely and does not hinder your view on the Multi-Mover 5XL plus trailer(s). Observe your company's safety regulations. MULTI-MOVER 5XL...
  • Page 8 Multi-Mover 5XL, temporary personnel for instance. The MULTI-MOVER 5XL may only be operated after the operator has thoroughly studied the user manual and after the owner of the Multi-Mover 5XL has provided a full training / instruction concern- ing the operation and the safety regulations.

  • Page 9: Chapter 4 Preparation

    - only original Multi-Mover Europe BV or CE certified parts may be used in the Multi-Mover 5XL. 3.23 As the operator you will determine the limits for "safe driving / working" with the Multi-Mover 5XL. Do not take any risks.

  • Page 10: Operator

    Although Multi-Mover has been designed for use out of doors and in poor weather conditions, it should not be driven in to water.

  • Page 11: Chapter 5 Use

    Only ever drive on and off a slope at a right angle. The Multi-Mover 5XL may also tip over if the bends are taken at a speed that is too high. Maximum slope angle, with / without load 4% / 10 % Passengers may not be taken along with the Multi-Mover 5XL and towed vehicle.
  • Page 12 Avoid bends if necessary and be careful on small hills, thresholds, etc. Reduce speed in case of sharp bends. The Multi-Mover 5XL may only be driven at speeds that allow you to stop in time, e.g. if an obstacle is standing in or entering the driving area.

  • Page 13: Operation

    9. Belly button 10. Ignition key lock 11. Low/high speed switch 12. Potentiometer continuous speed limitation 13. Horn 14. Programming connection 15. Lifting and lowering of clutch 16. Air pressure connection for release of air- controlled trailer brakes MULTI-MOVER 5XL...

  • Page 14: Batteries

    Steering handles The steering handle (1.6) with bar is a fixed part of the Multi-Mover 5XL, moving to the left means driving to the left, and vice versa. Safety switch 2.9 When pressing the safety switch (risk of getting jammed), the Multi-Mover 5XL will stop immediately.
  • Page 15 The temperature of the batteries will increase, resulting in prema- ture wear. Also, the voltage of the battery will become higher than the actual energy condition, which means that the discharge limiter will no longer work correctly. MULTI-MOVER 5XL...
  • Page 16 Frequent use If the Multi-Mover 5XL is used more than 8 hours a day, the batteries will also wear more quickly. When selecting batteries, it is important to take into account the Multi-Mover 5XL 's frequency of use.
  • Page 17 Please note: If the battery is not fully charged before it is topped up, the battery may overflow when charging. Turn off the Multi-Mover. Open the battery compartment cover. Disconnect the electrical coupler from the battery. Connect a water tank to the filler tube.

  • Page 18: Inching

    For info have a look ad the website Jost JSK hitch model Open the clutch by pulling the lever out completely. Check that the eye is open. Drive the Multi-Mover under the trailer so that the pin is in the eye. There are two clicks, the trailer can now be driven.

  • Page 19: Compressor

    Only use the Multi-Mover 5XL if you have thoroughly studied the previous pages and you have no more questions. 5.7 Compressor Switch on the compressor via button number 6, wait until the compressor stops pumping (tanks ar- now vol 10 BAR).

  • Page 20: Replacing The Batteries

    Close the battery compartment cover. MAINTENANCE When performing maintenance, you should always observe the safety regulations, (chapter 3). During maintenance, always switch off the Multi-Mover 5XL and remove the ignition key from the ignition lock In case of doubt, consult the user manual.

  • Page 21: Lubrication And Maintenance Diagram

    Taking out of operation If the Multi-Mover 5XL is not used for a certain period, you will have to; connect the battery charger place the Multi-Mover 5XL on blocks, so that the tyres do not touch the ground Have maintenance and repairs performed by persons authorized by Multi-Mover Europe BV.

  • Page 22: Chapter 7 Environment

    Consequences for the environment Life span The expected life span of the Multi-Mover 5XL depend on maintenance, operating hours and ambi- ent conditions (dust, contamination, humidity etc.). Good maintenance will be beneficial to the life span.

  • Page 23: Chapter 8 Failures

    FAILURES When removing a failure, ALWAYS switch off the Multi-Mover 5XL and remove the ignition key. If a defect is established at the Multi-Mover 5XL, do not use it until the repair has been completed. Always check the BDI for error codes...

  • Page 24: Chapter 10 Declaration Of Conformity

    We, Multi-Mover Europe BV, Boomsestraat 38, 6613 AH Balgoij, Netherlands declare at our own full responsibility, that the Multi-Mover ***, with serial number 2021 *** to which this declaration applies, is in conformity with the provisions of the following directive(s):...
