Transport
* Only use stable loading surfaces with sufficient loading capacity (see section 2.2).
* Secure the MULTI-MOVER XXL 15 TO against tilting or sliding.
* It is prohibited to;
-
get under the MULTI-MOVER XXL 15 TO while lifting
-
remain within the tilting range of the MULTI-MOVER XXL during unloading
[jjo165]

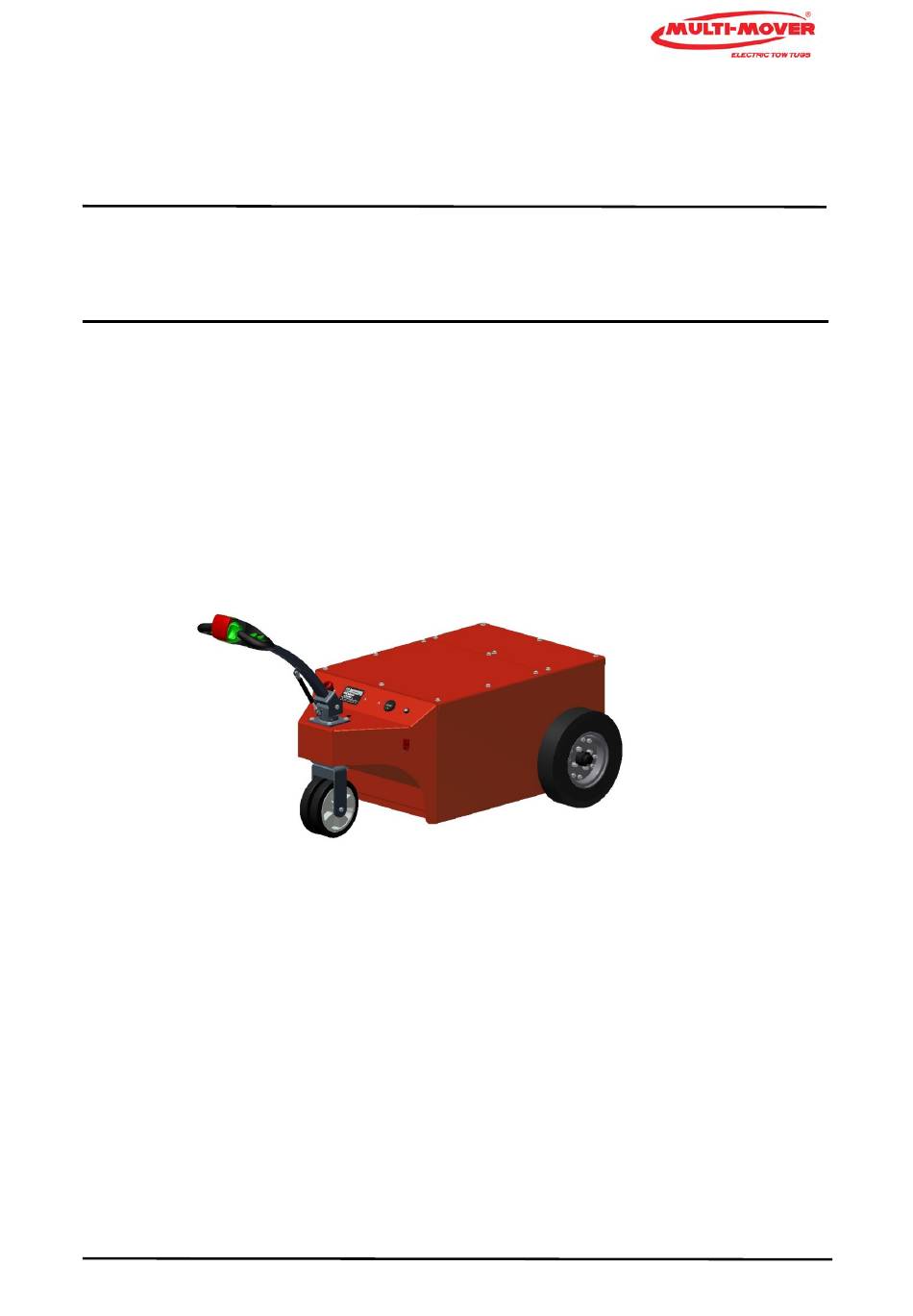

MULTI-MOVER XXL 15 TO
USER MANUAL and PARTS LIST
MULTI-MOVER XXL 15 TO
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XXL 15 TO and is the answer not in the manual?

Questions and answers

Related Manuals for Multi-Mover XXL 15 TO

Summary of Contents for Multi-Mover XXL 15 TO

  • Page 1 MULTI-MOVER XXL 15 TO Transport * Only use stable loading surfaces with sufficient loading capacity (see section 2.2). * Secure the MULTI-MOVER XXL 15 TO against tilting or sliding. * It is prohibited to; get under the MULTI-MOVER XXL 15 TO while lifting...

  • Page 2: Table Of Contents

    DECLARATION OF CONFORMITY Appendix I Electrical circuit diagram Appendix II User manual battery charger Appendix III Part List Multi-Mover Europe B.V. www.multi-mover.eu T +31 24 744 00 70 F +31 24 890 17 90 +49 2841 999 8083 MULTI-MOVER XXL 15 TO...

  • Page 3: Introduction / Warranty / Definitions / Safety Symbols

    INTRODUCTION / WARRANTY / DEFINITIONS / SAFETY SYMBOLS You have made the right decision, by purchasing the Multi-Mover XXL 15 TO. You are now in the pos- session of an excellent tool that has been constructed and produced with the greatest care. You will profit the most from this investment, if you carefully observe the safety, user and maintenance in- structions provided in this user manual.

  • Page 4: Chapter 2 Technical Description

    Safety symbols On various places on the Multi-Mover XXL 15 TO you will find standardised safety symbol stickers as displayed to the right. The upper part warns against a general or particular hazard. The lower part indicates what type of hazard is being warned against and will explain what you must do.

  • Page 5: Packaging, Loading / Unloading, Towing, Recycling

    Loading and unloading If the Multi-Mover XXL 15 TO has to be moved by means of a lift truck, the lift forks must be placed at the heaviest part at the rear of the Multi-Mover XXL 15 TO, between the 2 large wheels.

  • Page 6: Chapter 3 Safety Regulations

    Never drive onto a slope at an angle or crosswise. Only ever drive on and off a slope at a right angle. The Multi-Mover XXL 15 TO with trailer(s) may also tip over if the bends are taken at a speed that is too high.
  • Page 7 3.10 Caution! Hazard of serious injury due to overloading the Multi-Mover XXL 15 TO. The load behind the Multi-Mover XXL 15 TO may not be more than indicated at section 2.2 tech- nical data. Make sure the trailer(s) has/have been loaded evenly and safely.
  • Page 8 The MULTI-MOVER XXL 15 TO may only be operated after the operator has thoroughly studied the user manual and after the owner of the Multi-Mover XXL 15 TO has provided a full training / instruc- tion concerning the operation and the safety regulations.

  • Page 9: Chapter 4 Preparation

    - other liquids and hazardous substances than stated above If you want to move the substances mentioned above we offer an ATEX Casing The Multi-Mover XXL15 TO does not have permission to be driven on public roads unless you have the additional options ordered.

  • Page 10: Operator

    Multi-Mover XXL 15 TO should not start in that case. If you establish a fault, or if you have any doubts concerning the operation of the Multi-Mover XXL 15 TO you must immediately report this to your supervisor or the maintenance personnel.

  • Page 11: Chapter 5 Use

    Avoid bends if necessary and be careful on small hills, thresholds, etc. Reduce speed in case of sharp bends. The Multi-Mover XXL 15 TO may only be driven at speeds that allow you to stop in time, e.g. if an ob- stacle is standing in or entering the driving area.

  • Page 12: Operation

    Only transport safe and stable loads. Make sure the weight of the load to be moved lies within the capacity of the Multi-Mover XXL 15 TO. The maximum traction force 9900 Newton or 15.000 Kg.
  • Page 13 Drive switch, throttle forwards / backwards Steering handles (2.1) The steering handle (1) with bar is a fixed part of the Multi-Mover XXL 15 TO, moving to the left means driving to the left, and vice versa. MULTI-MOVER XXL 15 TO...

  • Page 14: Batteries

    By rotating the drive switch (6) to the front with your thumb, the driving direction will first be switched on and then, when rotated further, the Multi-Mover XXL 15 TO will start to drive. The cen- tral position is the neutral position.
  • Page 15 If, for example, the batteries are empty for only 20% and are reconnected to the charger, the batter- ies will not get the time to relax. The temperature of the batteries will increase, resulting in prema- ture wear. Also, the voltage of the battery will become higher than the actual energy condition, MULTI-MOVER XXL 15 TO...
  • Page 16 Frequent use If the Multi-Mover XXL 15 TO is used more than 8 hours a day, the batteries will also wear more quickly. When selecting batteries, it is important to take into account the Multi-Mover XXL's fre- quency of use.

  • Page 17: Coupling Trailer(S)

    # Maximum slope angle, with / without load 4 / 20 % Slowly reverse the Multi-Mover XXL 15 TO to the eye of the trailer and place the tow eye or coupling of the pole between the tow eyes or coupling point of the Multi-Mover XXL and insert the tow pin.

  • Page 18: 6.3 Cleaning

    Taking out of operation If the Multi-Mover XXL 15 TO is not used for a certain period, you will have to; connect the battery charger place the Multi-Mover XXL 15 TO on blocks, so that the tyres do not touch the ground Have maintenance and repairs performed by persons authorized by Multi-Mover Europe BV.

  • Page 19: Chapter 7 Environment

    Consequences for the environment Life span The expected life span of the Multi-Mover XXL 15 TO depend on maintenance, operating hours and ambient conditions (dust, contamination, humidity etc.). Good maintenance will be beneficial to the life span.

  • Page 20: Chapter 8 Failures

    FAILURES When removing a failure, ALWAYS switch off the Multi-Mover XXL 15 TO and remove the ignition key. If a defect is established at the Multi-Mover XXL 15 TO, do not use it until the repair has been completed. Failure Solution The Multi-Mover XXL 15 TO does not drive.

  • Page 21: Chapter 10 Declaration Of Conformity

    We, Multi-Mover Europe BV, Boomsestraat 38, 6613 AH Balgoij, Netherlands declare at our own full responsibility, that the Multi-Mover ***, with serial number 2018 *** to which this declaration applies, is in conformity with the provisions of the following directive(s):...
