Transport
Keep the S12 always in an upright position to avoid oil escaping.
* Only use stable loading surfaces with sufficient loading capacity (see section 2.2).
* Secure the MULTI-MOVER S12 against tilting or sliding.
* It is prohibited to;
-
get under the MULTI-MOVER S12 while lifting
-
remain within the tilting range of the MULTI-MOVER S12 during unloading

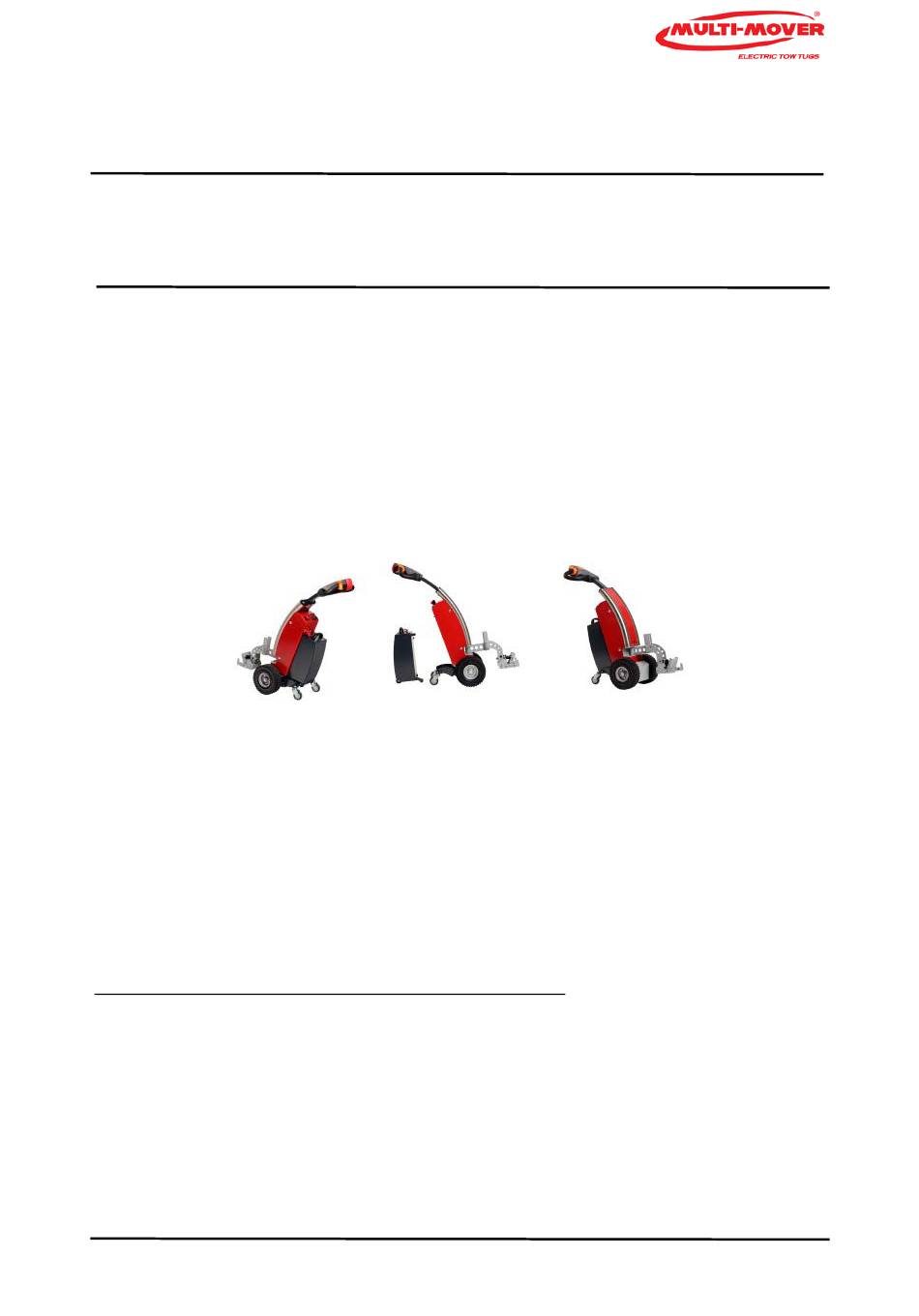

MULTI-MOVER S12
USER MANUAL and PARTS LIST
MULTI MOVER S12
1
Advertisement
Table of Contents
Related Manuals for Multi-Mover S12
Summary of Contents for Multi-Mover S12
- Page 1 USER MANUAL and PARTS LIST MULTI MOVER S12 Transport Keep the S12 always in an upright position to avoid oil escaping. * Only use stable loading surfaces with sufficient loading capacity (see section 2.2). * Secure the MULTI-MOVER S12 against tilting or sliding.
-
Page 2: Table Of Contents
Chapter 10 DECLARATION OF CONFORMITY Appendix I Electrical circuit diagram Appendix II User manual battery charger Appendix III Part List (on request) Multi-Mover Europe B.V. www.multi-mover.eu T +31 24 744 00 70 F +31 24 890 17 90 MULTI-MOVER S12... -
Page 3: Introduction / Warranty / Definitions / Safety Symbols
The user manual should be made available to the user of the Multi-Mover S12 and must be present at the Multi-Mover S12 when it is being used. The user manual must have been read by anyone working with/at the Multi-Mover S12, and the instructions must be observed. -
Page 4: Chapter 2 Technical Description
Safety symbols On various places on the Multi-Mover S12 you will find standardized safety symbol stickers as displayed to the right. The upper part warns against a general or particular hazard. The lower part indicates what type of hazard is being warned against and will explain what you must do. -
Page 5: Packaging, Loading / Unloading, Towing, Recycling
Avoid injury and damage as a result of incorrect placement of the lift truck's lift forks. Loading and unloading If the Multi-Mover S12 has to be moved by means of a lift truck, the lift forks must be placed at the heaviest part at the rear of the Multi-Mover S12, between the 2 large wheels. -
Page 6: Chapter 3 Safety Regulations
Never drive onto a slope at an angle or crosswise. Only ever drive on and off a slope at a right angle. The Multi-Mover S12 with trailer(s) may also tip over if the bends are taken at a speed that is too high. - Page 7 Make sure the trailer(s) has/have been loaded evenly and safely. 3.11 Caution! Wear clothing that allows you to move freely and does not hinder your view on the Multi-Mover S12 plus trailer(s). Observe your company's safety regulations. 3.12 Caution! Hazard of injury. In case of an unusual noise;...
- Page 8 3.14 Caution! Avoid injury by checking the Multi-Mover S12 for damage or bends on a daily basis. Pay particular attention to the tow eye with tow pen or coupling point and locking. 3.15 Caution! Hazard of injury. Make sure the Multi-Mover S12 is properly and safely supported when performing cleaning or maintenance work "under"...
-
Page 9: Chapter 4 Preparation
- combustible substances - other liquids and hazardous substances than stated above The Multi-Mover S12 does not have permission to be driven on public roads. It is not a vehicle according to the law. Only use the Multi-Mover S12 for the purpose for which it was designed. -
Page 10: Operator
- check the jam safety on the steering handle by pressing the safety switch (2, fig. 2), the Multi-Mover S12 should not start in that case. If you establish a fault, or if you have any doubts concerning the operation of the Multi-Mover S12 you must immediately report this to your supervisor or the maintenance personnel. -
Page 11: Use
Avoid bends if necessary and be careful on small hills, thresholds, etc. Reduce speed in case of sharp bends. The Multi-Mover S12 may only be driven at speeds that allow you to stop in time, e.g. if an obstacle MULTI-MOVER S12... -
Page 12: Operation
Only transport safe and stable loads. Make sure the weight of the load to be moved lies within the capacity of the Multi-Mover S12. The maximum traction force is stated on the type plate. - Page 13 5. Drive switch 6. Emergency stop Steering handles (4) The steering handle (1) with bar is a fixed part of the Multi-Mover S12, moving to the left means driving to the left, and vice versa. Safety switch (6) When pressing the safety switch (risk of getting jammed), the Multi-Mover S12 will stop immediately.
-
Page 14: Batteries
5. Connect a new battery package in the inverse order (as per description above). If the batteries have reached 30% of their capacity, the Multi-Mover S12 can still reach only 50% of the normal speed. Only when the BDI shows 70% or less, it will show after complete charging 100%. If the batteries are more than 70% discharged and not being completely charged, the indicator will not be reset on 100%. - Page 15 2. Connection for the internal charger: wire included in delivery, it goes in to the mains, 230 VAC On the instrument panel of the S12 you will find: State of charge. Charging or being charged. Battery indicator full or empty.
- Page 16 If the batteries are used often they will also wear more quickly. When selecting batteries, it is important to take into account the Multi-Mover S12’s frequency of use. If the batteries are used very frequently and intensively, it will be necessary to select the 140AH/20h battery instead of the standard 100AH/20h battery.
-
Page 17: Chapter 6 Maintenance
Coupling trolley/trailer(s) # The Multi-over S12 is made with a standard coupling on the front side in the middle of the Multi- Mover. 1 Slowly reverse the Multi-Mover S12 to the pole of the trailer. -
Page 18: Lubrication And Maintenance Diagram
Taking out of operation If the Multi-Mover S12 is not used for a certain period, you will have to; connect the battery charger place the Multi-Mover S12 on blocks, so that the tyres do not touch the ground Have maintenance and repairs performed by persons authorized by Multi-Mover Europe BV. -
Page 19: Chapter 7 Environment
Consequences for the environment Life span The expected life span of the Multi-Mover S12 depend on maintenance, operating hours and ambient conditions (dust, contamination, humidity etc.). Good maintenance will be beneficial to the life span. -
Page 20: Chapter 8 Failures
FAILURES When removing a failure, ALWAYS switch off the Multi-Mover S12 and remove the ignition key. If a defect is established at the Multi-Mover S12, do not use it until the repair has been completed. Failure Solution The Multi-Mover S12 does not drive. -
Page 21: Chapter 10 Declaration Of Conformity
We, Multi-Mover Europe BV, Boomsestraat 38, 6613 AH Balgoij, Netherlands declare at our own full responsibility, that the Multi-Mover ***, with serial number 2018 *** to which this declaration applies, is in conformity with the provisions of the following directive(s):...
