Axis FIXTRADE AX1801BT Quick Start Manual

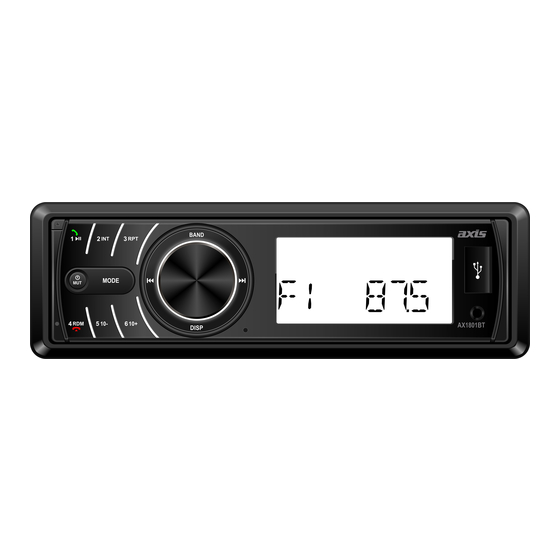

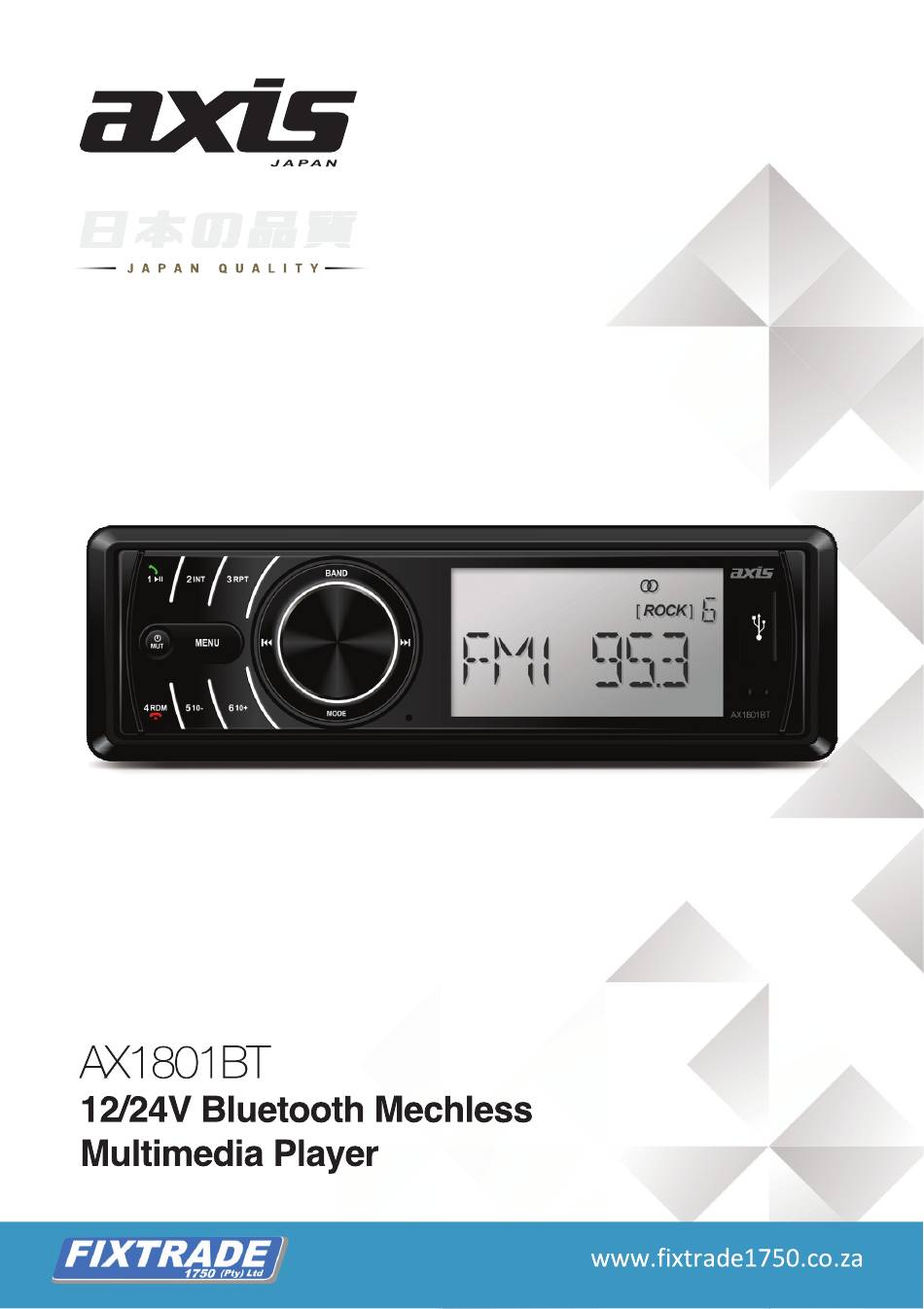

12/24v bluetooth mechless multimedia player
Hide thumbs Also See for FIXTRADE AX1801BT:
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIXTRADE AX1801BT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis FIXTRADE AX1801BT

Summary of Contents for Axis FIXTRADE AX1801BT

  • Page 2: Installation

    INSTALLATION 1. This player should be installed by a professional technician. 2. Please read the instruction and operation of equipment carefully before installing. 3. Make sure to connect other wires before power connection. 4. To avoid short circuit. Please make sure all the exposed wire are insulating. 5.

  • Page 3: Wiring Connection

    WIRING CONNECTION Microphone 1. Do not connect the battery terminal until the player is fully installed. 2. Please make sure to connect the yellow wire to the positive of the battery(+). 3. When changing the fuse. Please make sure the specifications are the same. 4.

  • Page 4: Basic Operation

    OPERATION BASIC OPERATION Turn on/off the unit & Mute function Pressing /M MUTE button to turn on the unit. When the unit is on. Short press this button for mute on/off. Press and hold this button to turn off the unit. Sound and setting adjustment Short press SEL button into the audio menu: BASS->TRE->BAL->FAD->EQ(class/rock/pop/flat/off)->LOUD(on/off)

  • Page 5: Radio Operation

    OPERATION Play music via the aux in 3.5mm jack Press MODE button switch to AUX IN source when inserting an audio source to the 3.5mm jack of the unit. Reset the unit Press RESET button to restore all the data to factory settings. (Note:all memories will be lost.) RADIO OPERATION Receive a radio station...
  • Page 6 OPERATION Random function: Press RDM button, all files will be played randomly. Press it again to cancel this function. Select a Directory Way 1: Press DIR+/DIR- button to select directory upward or downward. Way 2: Press BAND button 1 time. It will show DIR SCH. Rotate VOL knob to select the desired directory to play.
  • Page 7 OPERATION Transfer the call between mobile phone and unit During the talking mode, press button to transfer the phone call between the phone and the unit. Disconnect the Bluetooth After the phone is paired with the unit. Hold MODE key to disconnect /re- connect the Bluetooth.

  • Page 8: Specification

    SPECIFICATION GENERAL Power Supply Requirements : DC 12 -24Volts, Negative Ground Chassis Dimensions : 178 (W) x 97 (D) x 50 (H) Maximum Output Power : 4x40 watts Current Drain : 10 Ampere (max.) RADIO Frequency Coverage 87.5 to 108 MHz. 10.7 MHz 4μV Sensitivity (S/N=30dB)
