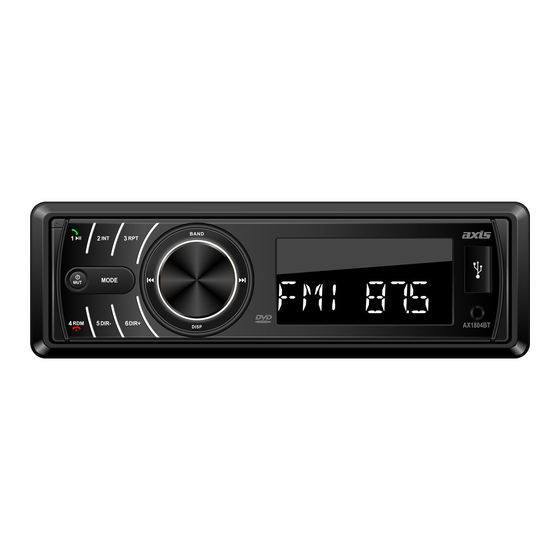

Axis AX1804BT Instruction Manual

12/24v bluetooth dvd/cd multimedia player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

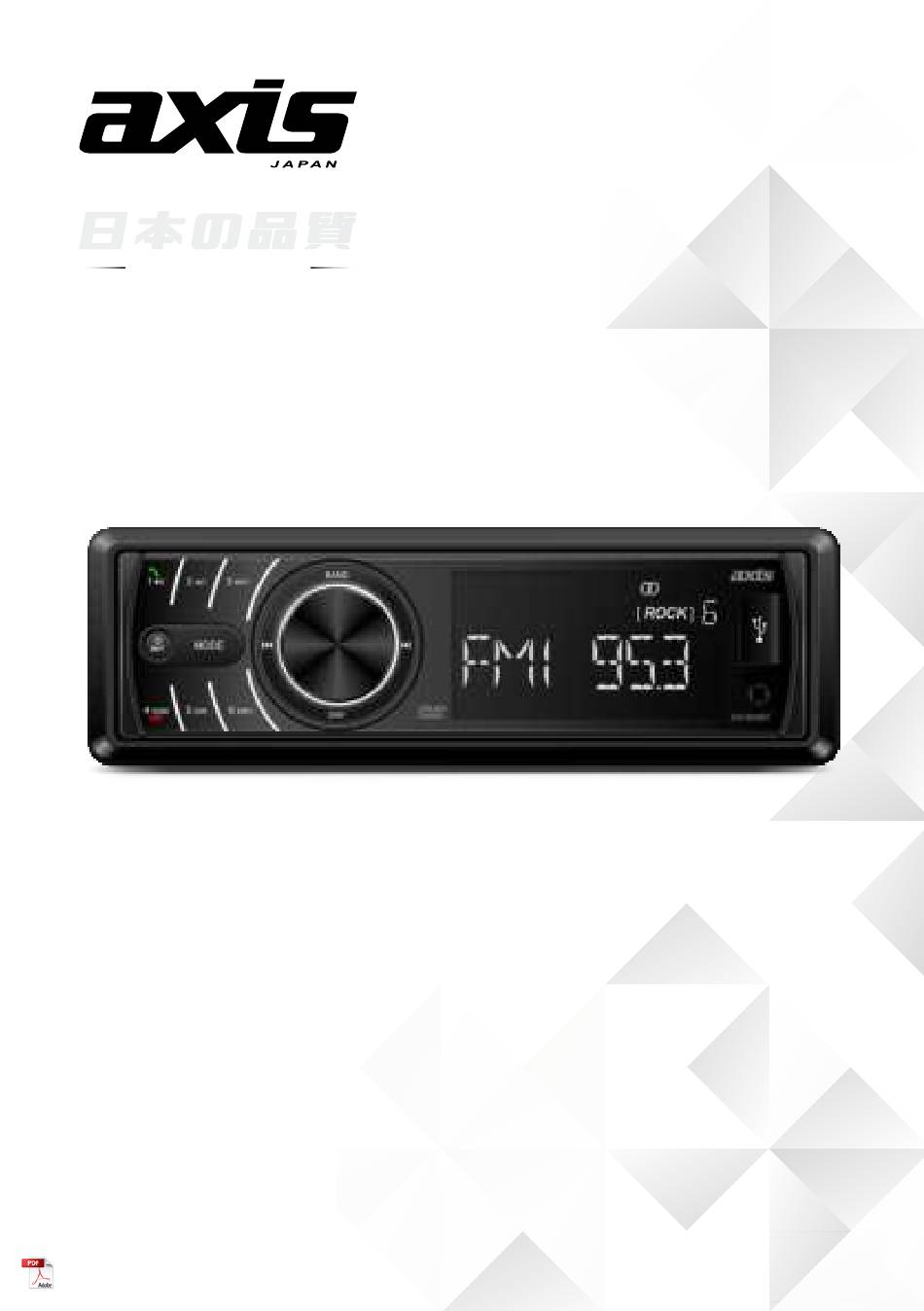

J A P A N
Q U A L I T Y
AX1804BT
12/24V Bluetooth DVD/CD
Multimedia Player
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX1804BT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis AX1804BT

Summary of Contents for Axis AX1804BT

  • Page 1 J A P A N Q U A L I T Y AX1804BT 12/24V Bluetooth DVD/CD Multimedia Player...

  • Page 2: Installation

    Installation 1. This player should be installed by a professional technician. 2. Please read the instruction and operation of equipment carefully before installing. 3. Make sure to connect other wires before power connection. 4. To avoid short circuit. Please make sure all the exposed wire are insulating. 5.
  • Page 3 Installation Remove the Unit 3. Detach the front panel. 4. Take out the outer trim frame. 1. Do not connect the battery terminal until the player is fully well installation. 2. Please make sure to connect the yellow wire to the positive of the battery(+). 3.

  • Page 4: Location Of Controls

    Location of Controls 13. DISP 8. IR 14. PUSH/ENT/SEL 3. 2 INT 9. LCD 4. MODE 10. USB Interface 16. 6 10+ 5. 3 RPT 11. AUX IN 17. 5 10- 6. BAND 12. N/A 18. 4RDM...

  • Page 5: Operation

    Operation Turn on/off the unit & Mute function Pressing MUTE button to turn on the unit. When the unit is on. Shortly press this but- ton for mute on/off. Press and hold this button to turn off the unit. Sound and setting adjustment Shortly press SEL button into the audio menu: BASS->TRE->BAL->FAD->EQ(class/rock/pop/flat/off)->LOUD(on/off) Press and hold SEL button for the setting menu:...

  • Page 6: Radio Operation

    Operation Press MODE button switch to AUX IN source when inserted an audio source to the 3.5mm jack of the unit. Reset the unit Press RESET button to restore all the data to factory settings. (Note: all memories will be lost.) RADIO OPERATION Receive a radio station Press MODE button to select FM or AM source.

  • Page 7: Bluetooth Operation

    Operation Select a Directory Way 1: Press DIR+/DIR- button to select directory upward or downward. Way 2: Press BAND button for 1 time. It will show DIR SCH. Rotate VOL knob to select the desired directory to play. +10/-10 file function Press and hold DIR+/ DIR- button for 2 seconds it will skip +10/-10 file to play.

  • Page 8: Specifications

    Operation Disconnect the Bluetooth After the phone is paired with the unit. Hold MODE key to disconnect /re-connect the Bluetooth. Note: At the first time pair with the mobile phone. You have to use mobile phone to pair the unit. Specifications GENERAL - Flip Down Detachable Face Panel...

  • Page 9: Troubleshooting

    Trouble Shooting Before going through the checklist, check wiring connection. If any of the problems persist after checklist has been made, consult your nearest service dealer. Symptom Cause Solution No power. The car ignition switch is If the power supply is con- not on.
  • Page 10 Notes...
  • Page 11 Notes...

  • Page 12: Consumer Warranty

    You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Please complete details below in the event of warranty service being required. Purchaser’s Name: Purchaser’s Address: AX1804BT Model Number: Serial Number: Dealer Name: Date of Purchase:...
