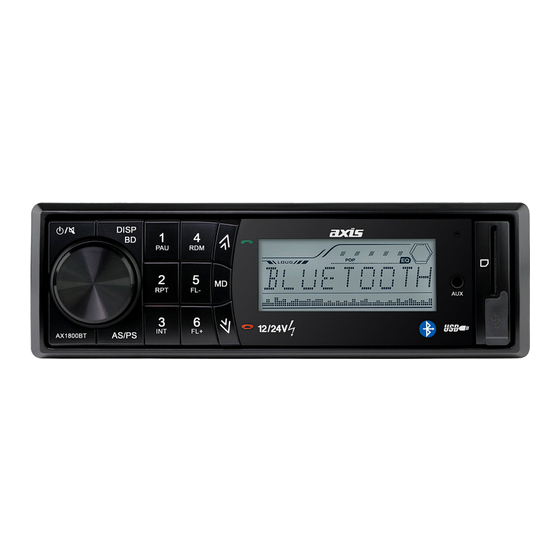

AX1800BT
12/24V BLUETOOTH MECHLESS
AM/FM MULTIMEDIA PLAYER
SPECIFICATIONS
GENERAL
- Fixed Face Panel
- Mechless (without CD deck)
- "Ultra Memory" To retain preset settings
after battery is disconnected
- Illuminated Controls
- FSTN Display for Wide Angle Viewing
- ISO DIN Mounting
- Mounting Depth: 86mm
- Mini DIN Chassis: 178W x 50H x 86D mm
- 12/24 Volt DC (10.8-32V) Negative Ground
- 2 Ch RCA Line Out - 5 Volt (Max)
- Speaker Impedance 4-8 Ohm
- Max Power 25 Watts x 4 Ch
- Digital Clock
TUNER
- PLL Synthesized AM/FM Stereo
- Xtreme Long Range Tuner
- FM 87.5~108 MHz; AM 522~1710 KHz
- Interference Absorption Circuit
- 30 Station Presets - 18FM/12AM Memory
- Station Seek/Preset Scan/Auto Store
- Automatic or Manual Tuning
- Local/Distant Control
- Mono/Stereo
INSTRUCTION MANUAL
Series 2
AUDIO CONTROL
- Rotary Encoder
- Electronic Volume/Balance/Fader/
Bass/Treble
- Loud/Mute
- 4 Band DSP Settings
- Telemute
BLUETOOTH
- Bluetooth in Phone Mode
- Pick-Up/End Call
- A2DP Music Streaming
MULTIMEDIA
- USB Input: Front Panel
- SD/MMC Card Port: Front Panel
- AUX-IN: Front (3.5mm)
- MP3/WMA Player
- Intro/Repeat/Random Play/Pause
- Track Down/Up/Select (MP3/WMA Files)
INCLUDED
- Remote Control
- External Microphone
- ISO Wiring Harness
- Installation Hardware
Advertisement
Table of Contents
Related Manuals for Axis AX1800BT 2 Series
Summary of Contents for Axis AX1800BT 2 Series
- Page 1 AX1800BT Series 2 12/24V BLUETOOTH MECHLESS AM/FM MULTIMEDIA PLAYER SPECIFICATIONS GENERAL AUDIO CONTROL INCLUDED - Fixed Face Panel - Rotary Encoder - Remote Control - Mechless (without CD deck) - Electronic Volume/Balance/Fader/ - External Microphone - “Ultra Memory” To retain preset settings Bass/Treble - ISO Wiring Harness after battery is disconnected...
-
Page 2: Installation
Congratulations on choosing this quality Axis audio product! We wish you countless hours of listening enjoyment. Please read through these operating instructions so you can effectively operate its many advanced technologies. INSTALLATION PRECAUTIONS • Carefully choose the mounting location so normal driving is not hindered. - Page 3 WIRE CONNECTION WIRE CONNECTION CONNECT TO EXTERNAL MICROPHONE CONNECT TO EXTERNAL MICROPHONE CONNECT TO EXTERNAL MICROPHONE CONNECT TO EXTERNAL MICROPHONE TELEMUTE ISO CONNECTOR ISO CONNECTOR ISO CONNECTOR ANTENNA CONNECTOR ISO CONNECTOR ANTENNA ANTENNA CONNECTOR CONNECTOR LINE OUT ANTENNA CONNECTOR LINE OUT L (WHITE) R (RED) LINE OUT L (WHITE) R (RED)
-
Page 4: Control Functions
11 15 CONTROL FUNCTIONS (1-6) MODE POWER LOUD TUNE/SEEK AX1800BT BAND 11 15 (1,2,3,4,5,6) (1-6) (1,2...,9,0, LOCATIONS OF PARTS 1. POWER ON/OFF ( ) / MUTE ( MODE POWER LOUD 2. FUNCTION SELECT BUTTON:BASS/TREBLE/BALANCE/FADER / TUNE/SEEK EQ/VOLUME LEVEL/STEREO/LOUD/LOCAL/ADJUST CLOCK (SEL) 3. - Page 5 OPERATING INSTRUCTIONS POWER ON/OFF Press POWER ON button to power the unit. Press and hold to turn off. MUTE Press button briefly to MUTE. To return to sound, press again. SELECT VOLUME UP/DOWN Turing the VOL knob to right or left (3) to control the VOLUME. To select other functions, hold the VOL knob down until the desired functions is shown on the display.
- Page 6 Recall a station: 1. Select band (if needed) 2. Press a preset button for less than one second to select stored station. (B) MP3 PLAYER MODE: 1. PAUSE 2. REPEAT 3. INTRO 4. RANDOM 5. STEREO/MONO SELECTOR (ST) This function will only affect FM reception. Press this button if the FM reception becomes noisy/hissy. If the station being received is in stereo, it will now be heard in mono.
- Page 7 MP3/WMA CONTROL LOCATION OF PARTS MP3/WMA CONTROL LOCATION OF PARTS 14. PAUSE BUTTON 14. PAUSE BUTTON During “PLAY”, press (14) ‘PAU’ button to “PAUSE”. Press gain to resume play. During “PLAY”, press (14) ‘PAU’ button to “PAUSE”. Press gain to resume play. Note: Press and hold PAU button to play first title on the storage medium.
-
Page 8: Bluetooth Operation
functions will be available with this device. • You cannot operate USB hard drives on the device. 21. FRONT AUX IN An external audio source (e.g. portable MP3 player) can be connected to the AUX IN socket to be played back through the vehicle loudspeakers. -
Page 9: Troubleshooting Guide
CAUTION & MAINTENANCE This AM/FM car radio with MP3/WMA player is an example of superior design and craftsmanship. The following suggestions will help you care for the product and experience many years of enjoyment. 1. The product can operate on 10.8V-32V DC power supply, negative ground. 2. -
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS MP3/WMA PLAYER SECTION Signal to Noise Ratio > 60 dB > 45 dB (1kHz) Channel Separation Frequency Response 60Hz - 20 kHz TUNER (FM) Frequency Range 87.5 - 108 MHz Sensitivity 2.8 µV Stereo Separation 28 dB Signal to Noise Ratio >55 dB Channel Step 100 kHz... - Page 11 NOTES...
- Page 12 AX1800BT Series 2...
