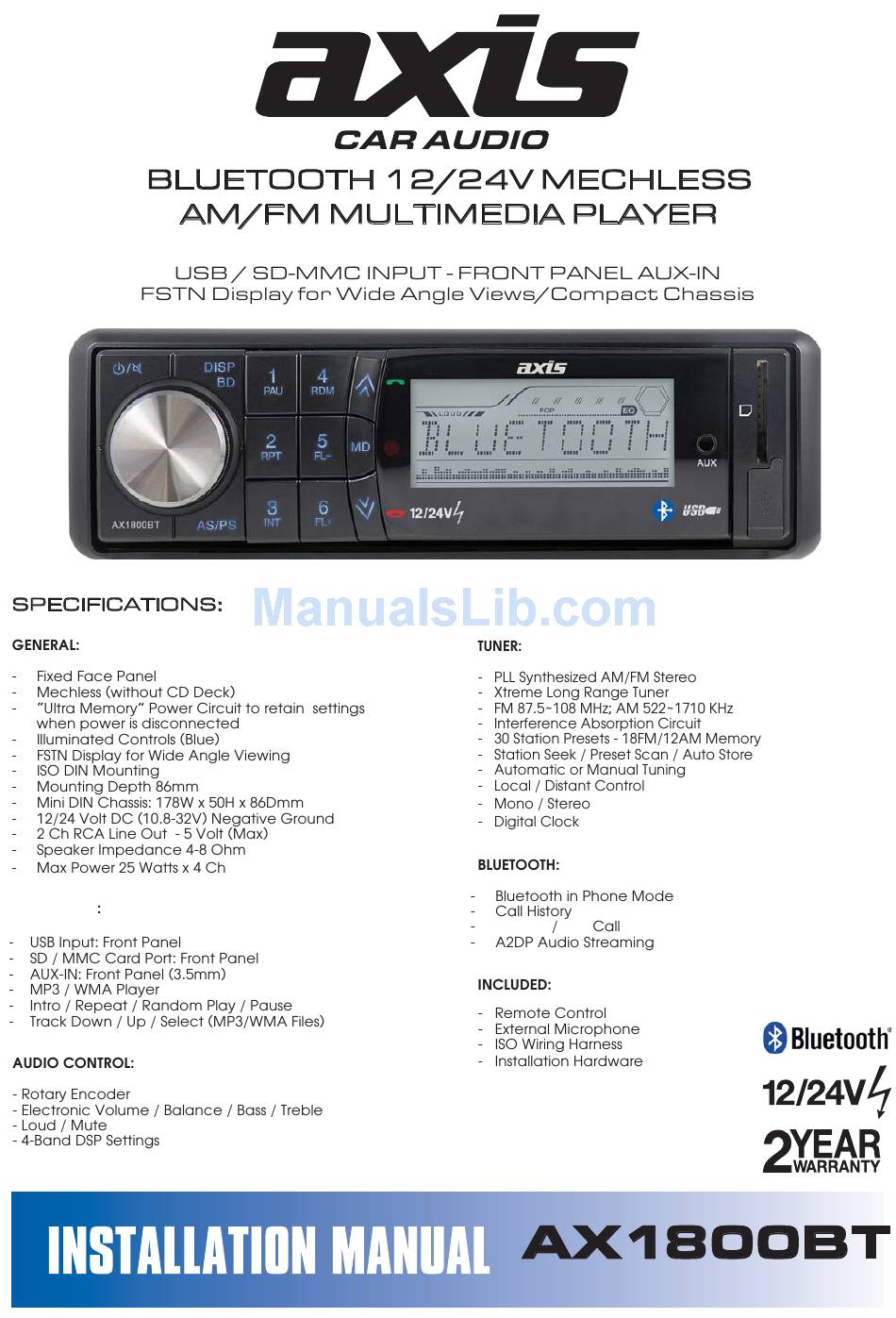

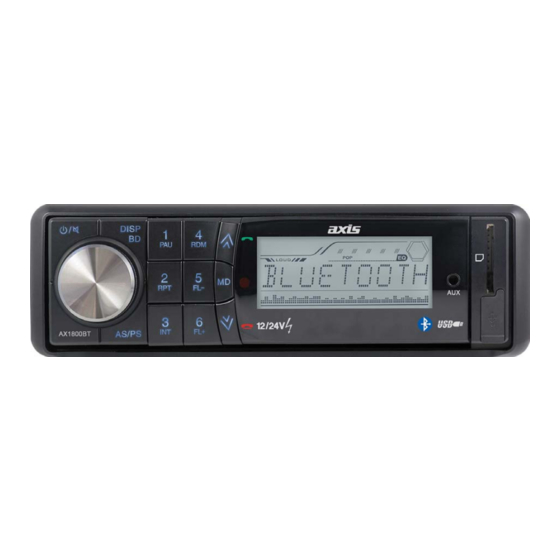

- Page 1 MULTIMEDIA Pick-Up End DESIGNED FOR AUSTRALASIAN CONDITIONS...
-
Page 2: Installation
INSTALLATION PRECAUTIONS Mounting angle adjustment 182mm MOUNTING EXAMPLE 53mm Installation in the dashboard 182mm 53mm Note: Keep the release key in the safe place as you may need it in future to remove the unit from the car... -
Page 3: To Support The Unit
TO SUPPORT THE UNIT UNIT RELEASE CA E DASH Dashboard HEX NUT LOCK WASHER PLAIN WASHER CAR BODY REAR SUPPORT STRAP TAPPING SCREW M5 X 15 HEX BOLT WIRE CONNECTION CONNECT TO EXTERNAL MICROPHONE ISO CONNECTOR ANTENNA CONNECTOR LINE OUT L (WHITE) R (RED) FUSE 5A ISO A/B PLUG... -
Page 4: Control Functions
CONTROL FUNCTIONS MODE POWER LOUD TUNE/SEEK BAND 11 15 (1,2,3,4,5,6) (1-6) (1,2...,9,0, ,#) LOCATIONS OF PARTS 1. POWER ON/OFF ( ) / MUTE ( 2. FUNCTION SELECT BUTTON:BASS/TREBLE/BALANCE/FADER / EQ/VOLUME LEVEL/STEREO/LOUD/LOCAL/ADJUST CLOCK (SEL) 3. VOL UP/VOL DOWN FOR BASS/TREBLE/BALANCE/FADER 5. STEREO/MONO (ST) 6. -
Page 5: Operating Instructions
OPERATING INSTRUCTIONS POWER ON/OFF Press to power the unit. Press and hold to turn off. MUTE 2. SELECT 3. VOLUME UP/DOWN VOL knob down until the desired functions is shown on the display. Figure 1 shows how control func- tions are selected using the VOL knob. Fig. - Page 6 Recall a station: 1. Select band (if needed) 2. Press a preset button for less than one second to select stored station. (B) MP3 PLAYER MODE: 1. PAUSE 2. REPEAT 3. INTRO 4. RANDOM 5. STEREO/MONO SELECTOR (ST) This function will only affect FM reception. Press this button if the FM reception becomes noisy/hissy. reception.
- Page 7 MP3/WMA CONTROL LOCATION OF PARTS 14. PAUSE BUTTON Note: Press and hold PAU TRACK/SEARCH BUTTON (10) FORWARD AND REVERSE TRACK SEARCH (or changing songs) Press and release to advance to next track or to return to the beginning of the current track (track number will be displayed.) Press and hold to .
-
Page 8: Bluetooth Operation
21. FRONT AUX IN An external audio source (e.g. portable MP3 player) can be connected to the AUX IN socket to be played back by the vehicle loudspeakers. Press the MD button to select the AUX IN mode. BLUETOOTH OPERATION Connecting the telephone to the device Activate the Bluetooth function on your mobile phone and conduct a search for Bluetooth devices. -
Page 9: Troubleshooting Guide
CAUTION & MAINTENANCE This AM/FM car radio with MP3/WMA player is an example of superior design and craftsmanship. The following suggestions will help you care for the product and experience many Avoid exposing your product to high temperature and humidity. Handle the product with care. -
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS MP3/WMA PLAYER SECTION Frequency Response 60Hz - 20 kHz TUNER (FM) Frequency Range 87.5 - 108 MHz Sensitivity 2.8 μV Stereo Separation 28 dB Channel Step 100 kHz TUNER (AM) Frequency Range 522 - 1710 KHz Channel Step 9 kHz GENERAL Power Supply...
